Benefits And Features
Upgrade your mold design and die manufacturing
Modeling
VISI Modeling is the foundation of all VISI products and provides a robust and powerful solid and surface modeling system based on the industry-standard Parasolid kernel. VISI Modeling offers complete flexibility to construct, edit or repair the most complex 3D data.

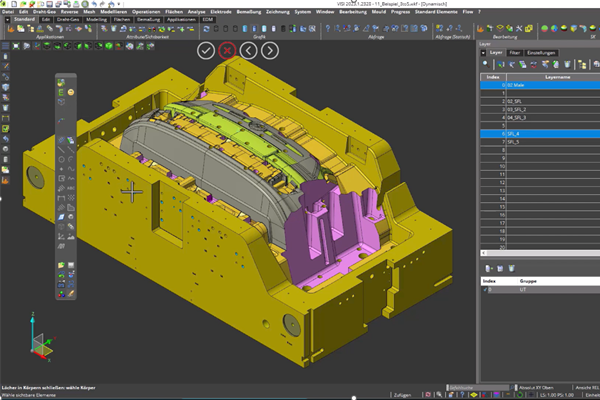

Mold design
The VISI Mold module helps in creating a parametric 3D mold. A dynamic preview displays the assembly status, including options to edit all parameters in edit mode. Standard libraries of all common manufacturers are available for completing the assembly.
Electrode design
VISI Electrode is an automated module for the creation and management of electrodes and their holders for the manufacturing of detailed and hard-to-machine features on mold and press tools. Comprehensive holder design, simulation, and collision checking ensure that electrodes will operate right the first time.
Training and Resources
Support
Connect and collaborate with your peers and experts
Nexus Community provides you with excellent peer forums and the opportunity to learn from thousands of others in your industry. Currently, there are 25 products active and 80+ peer forums waiting for you to dive into. Discover best practices, and get answers you need to succeed. Once you register for Nexus, you can access the community forums.
You might be interested in...
Related products
© 2025 Hexagon AB and/or its subsidiaries
Best-quality CAD/CAM for design and manufacturing
A suite of industry-specific applications for plastic injection tool design, including material flow analysis, provide you with unsurpassed levels of productivity.
The benefits of VISI include:
Take advantage of various learning opportunities
Visit the Catalog page for a complete list of educational content. You can enroll for training, complete self-paced courses, register for distance learning, classroom instruction, live training events, and download or print your completion certificate.
Dive into our documentation to explore the full potential of product offerings
Your ultimate resource for practical guidance and support. Here, you’ll find a wealth of step-by-step how-to guides, detailed tutorials, and handy tips and tricks. Whether you’re troubleshooting an issue or looking for ways to optimize your use of our products, our Documentation Center provides clear and concise information to help you get the most out of your experience.
Expand your knowledge
Our Knowledge Base, your go-to hub for in-depth insights and valuable information. Explore a rich collection of articles, thought-provoking posts, and detailed white papers crafted to provide you with the knowledge you need to excel. From industry trends to expert analyses, our Knowledge Base is designed to keep you informed and empowered with the latest and most relevant content.
Downloads are only available on the desktop version. Please access our site from a desktop to download.
Frequently Asked Questions
VISI 3D CAM / How do I sort my Machining Operations?
VISI machining operations can be sorted manually by dragging and dropping in the CAM Navigator or automatically based on sort modes; please see here for more information.
VISI 2D CAM / How do I recognize a Boss Feature?
The VISI system will automatically find Boss Features using the Feature recognition; please see here for more information.
VISI Wire / Adding-Constraint lines to a 4 Axis Feature
Wire constraint lines may be required to synchronize upper and lower geometry for a 4 axis wire feature; this is shown in the following example.
VISI Mould / Adding Standard Elements Catalogue
Mould / Adding Standard Elements Catalogue – Visi supports multiple supplier catalogues which can be added to VISI Standard elements as shown here.
VISI Progress / How to use VISI Blank
VISI Blank can be used to create a flattened blank from a 3D part. please see here for more information.
