Benefits And Features
Integrate world-leading efficiency into your production process
Interactive HTML reports
The new HTML format is an all-in-one solution that supports interactive elements, like part or result 3D views, and is easily accessible with any Chromium-based browser like Edge or Chrome.
Linear sizes
Simplify standard conform measurements with direct support for modifier symbols ([LP], (E), [GG]), empowering easy evaluations for many size features.
Improvements for Erode/dilate ROI sphere mode
You can now specify the sphere radius in length units, even on anisotropic data sets, resulting in significantly faster computation speeds.
You might be interested in...
Related products
Training and Resources
Take advantage of various learning opportunities
Visit the Catalog page for a complete list of educational content. You can enroll for training, complete self-paced courses, register for distance learning, classroom instruction, live training events, and download or print your completion certificate.
Dive into our documentation to explore the full potential of product offerings
Your ultimate resource for practical guidance and support. Here, you’ll find a wealth of step-by-step how-to guides, detailed tutorials, and handy tips and tricks. Whether you’re troubleshooting an issue or looking for ways to optimize your use of our products, our Documentation Center provides clear and concise information to help you get the most out of your experience.
Frequently Asked Questions
Where do I setup the inspection job?

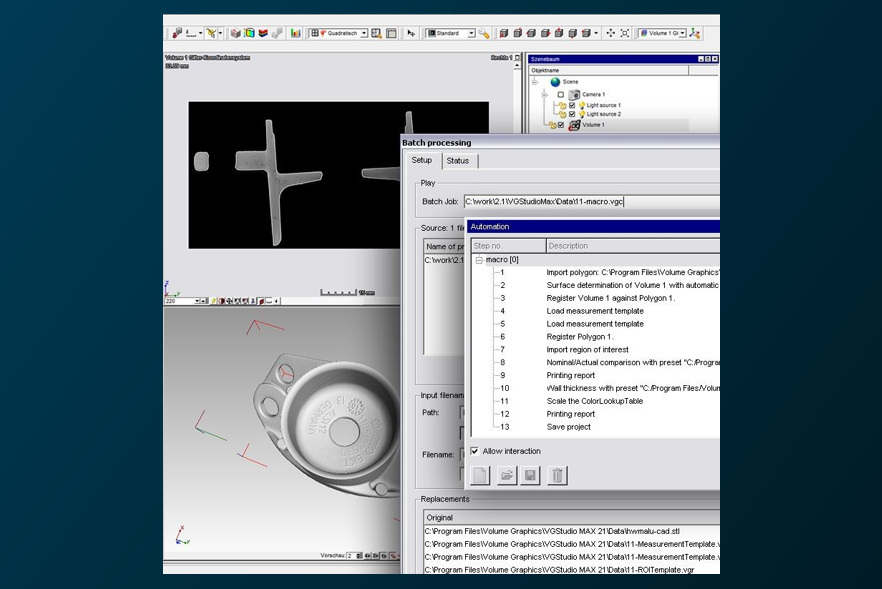

The inspection routine is prepared in VGSTUDIO MAX. Once the inspection routine is setup it can easily be transferred to VGinLINE as a so-called job. VGinLINE will then perform that inspection routine on every incoming data.
What is the difference between a job and a macro?
A job consists of several macros and is a self-contained file that includes all the necessary information to perform the task automatically. Transferring the job to VGinLINE is therefore easily done.
Is VGinLINE scalable in terms of performance?
Depending on the cycle time requirements, VGinLINE can easily be scaled by adding new VGinLINE WORKERS/workstations to the system to enhance analysis performance.
What is the core component to setup a VGinLINE system?

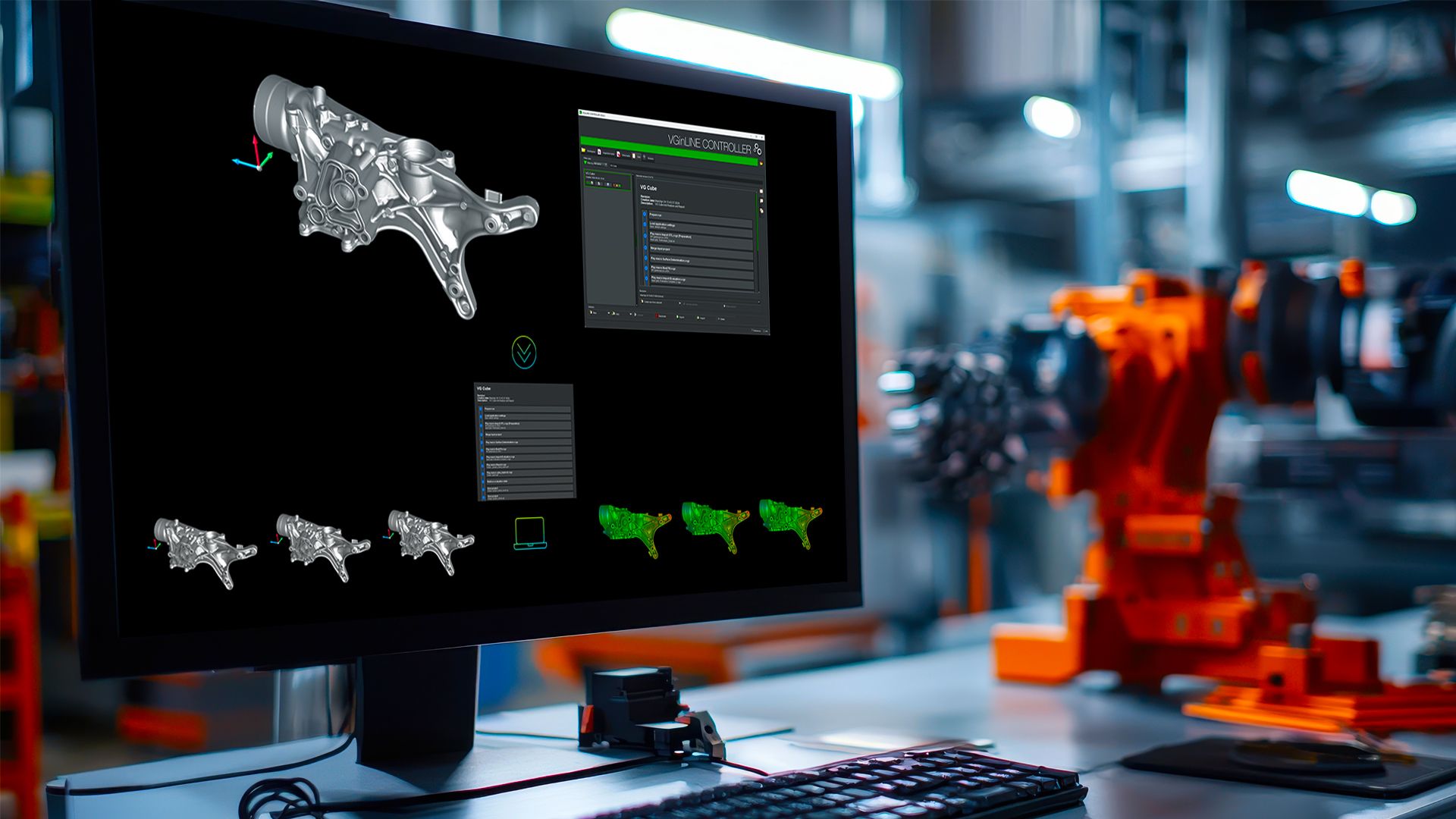

Core component of a VGinLINE system consists of VGinLINE CONTROLLER and VGinLINE WORKER. The VGinLINE CONTROLLER enables you to import the inspection job and to specify the handling of data, e.g., the input directory (data that needs to be analyzed) and output directory (destination of analyzed projects and/or reports). The VGinLINE WORKER is installed on a workstation and performs the analysis calculation.
Support
Connect and collaborate with your peers and experts
Nexus Community provides you with excellent peer forums and the opportunity to learn from thousands of others in your industry. Currently, there are 25 products active and 80+ peer forums waiting for you to dive into. Discover best practices, and get answers you need to succeed. Once you register for Nexus, you can access the community forums.

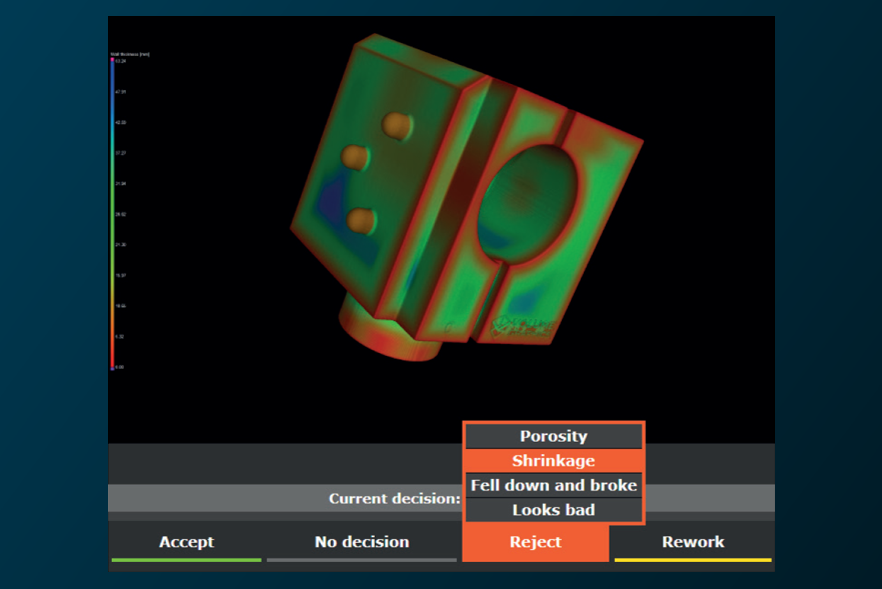

Automatically inspect your parts in a non-destructive environment
Simple and quick to set up, VGinLINE is adapted to work with almost every CT system on the market, granting you unparalleled flexibility in how you approach component analysis. VGinLINE’s adaptability and intuitive reconfigurability allow you to adjust for small changes in product design with minimal effort and reduced costs.
The key benefits of using VGinLINE include:
