Take Your Production to a New Level with the TIGO SF

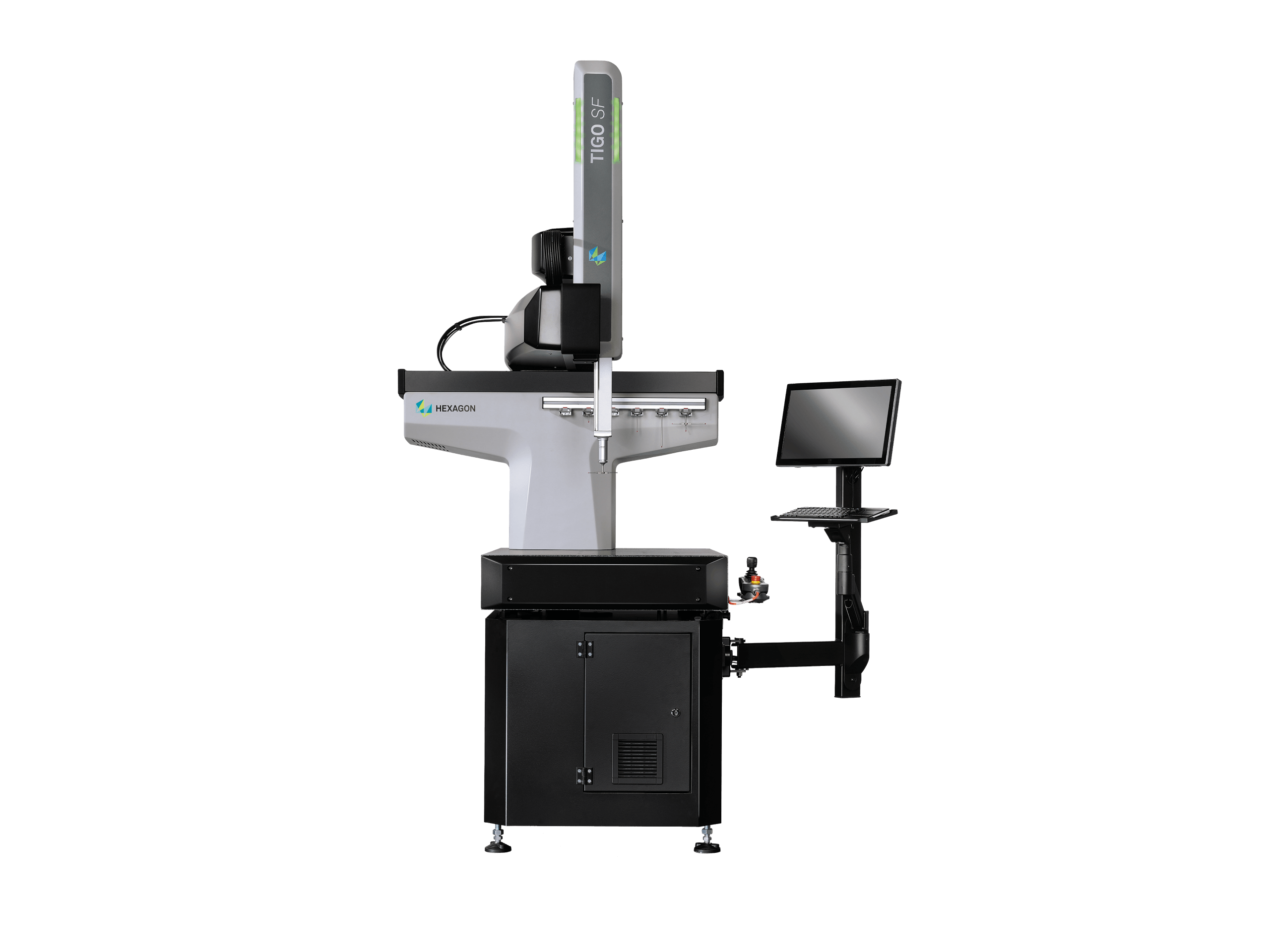

Developed for the shop-floor, the TIGO SF is a fully-protected and versatile coordinate measuring machine (CMM) that combines robust construction, innovative technology and flexibility of setup to ensure high-accuracy measurement in the harshest of environments.

Take Your Production to a New Level with the TIGO SF

Benefits And Features

Open access measuring volume

Easy loading and unloading of workpieces thanks to the full accessibility offered by the TIGO SF’s three open sides.

Compact size

The PC, controller and peripherals including the screen and the keyboard are all mounted to the same base to ensure minimal footprint for easy placement onto the shop floor or production line.

Linear guideways

All axes on the TIGO SF work on a linear guideway system with no air required, reducing the risk from production contaminants and making installation and relocation simpler.

Training and Resources

TIGO SF Specifications

Available size (X, Y, Z)	Accuracy₂	Probe type compatibility	Automation ready
05.06.05	2.2μm + L/300, MPE(E0/E150)₁) [18-22 °C] 2.5μm + L/250, MPE(E0/E150)₁) [16-26 °C] 2.7μm + L/200, MPE(E0/E150)₁) [15-30 °C] 3.7μm + L/80, MPE(E0/E150)₁) [15-40 °C], XT option	Touch trigger probe Scanning probe	YES
Temperature specification
18-22 °C (T1) 16-26 °C (T2) 15-30 °C (T3) 15-40 °C (T4), XT option

Available size (X, Y, Z)

Accuracy₂

Probe type compatibility

Automation ready

05.06.05

2.2μm + L/300, MPE(E0/E150)₁) [18-22 °C]

2.5μm + L/250, MPE(E0/E150)₁) [16-26 °C]

2.7μm + L/200, MPE(E0/E150)₁) [15-30 °C]

3.7μm + L/80, MPE(E0/E150)₁) [15-40 °C], XT option

Touch trigger probe

Scanning probe

YES

Temperature specification

18-22 °C (T1)

16-26 °C (T2)

15-30 °C (T3)

15-40 °C (T4), XT option

Available size (X, Y, Z)
05.06.05
Accuracy₂
2.2μm + L/300, MPE(E0/E150)₁) [18-22 °C] 2.5μm + L/250, MPE(E0/E150)₁) [16-26 °C] 2.7μm + L/200, MPE(E0/E150)₁) [15-30 °C] 3.7μm + L/80, MPE(E0/E150)₁) [15-40 °C], XT option
Probe type compatibility
Touch trigger probe Scanning probe
Automation ready
YES
Temperature specification
18-22 °C (T1) 16-26 °C (T2) 15-30 °C (T3) 15-40 °C (T4), XT option

₁ MPE(E0/E60) specifications are to be formally understood as MPE(E0/E60)* for the case where non-normal CTE material calibrated test lengths are used. Length unit measure (L) in mm

₂ According to ISO 10360-2 (2009)
