Information from any CAD source

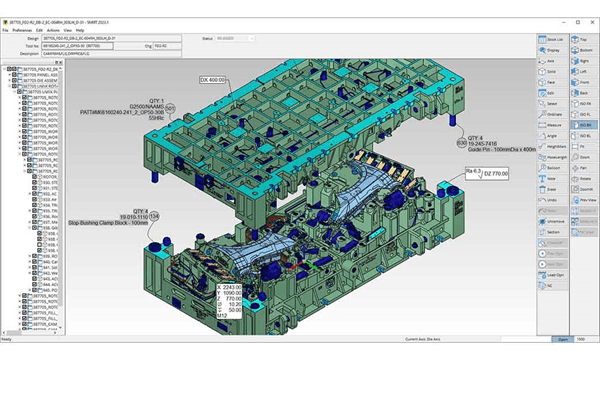

SMIRT’s powerful annotation and information sharing tools improve and speed up the flow of information through the entire organization by creating a truly paperless environment. The program allows you to extract the information needed to build a die directly from a solid model without the need to generate plots/drawings.

NC Milling / Drilling

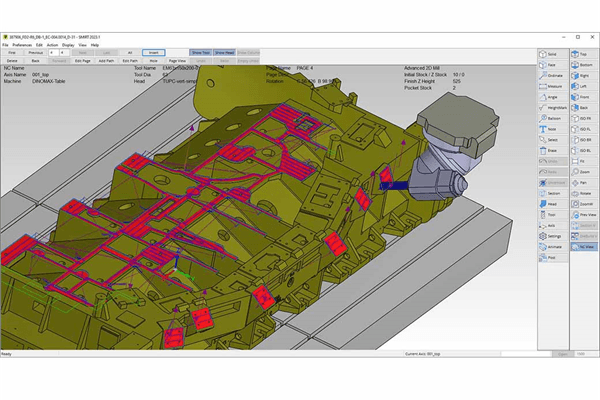

SMIRT NC is designed to create toolpaths for planar faces, profiles, and drilling holes. The unique ‘Milling Method’ strategy simplifies the overall process by automatically selecting 3D surfaces to machine, filling holes, extracting tools from the database, and creating boundary curves, along with creating the initial casting stock or initial solid block.

Die build

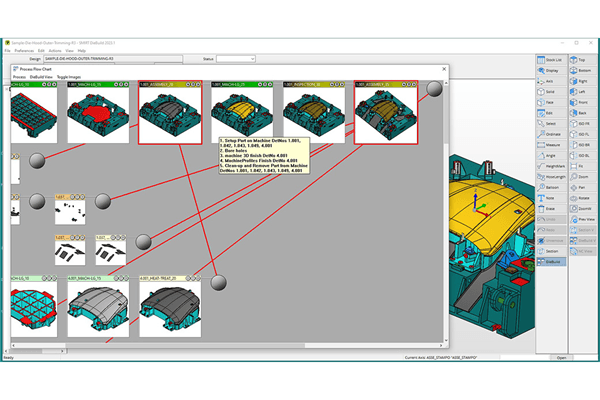

The complete die design can be reviewed and processed through SMIRT, where a graphical flow chart of the build process is generated, ensuring consistent techniques are used throughout the facility.
