RWP20.50-G-UTP Ultrasonic Measurement Solution

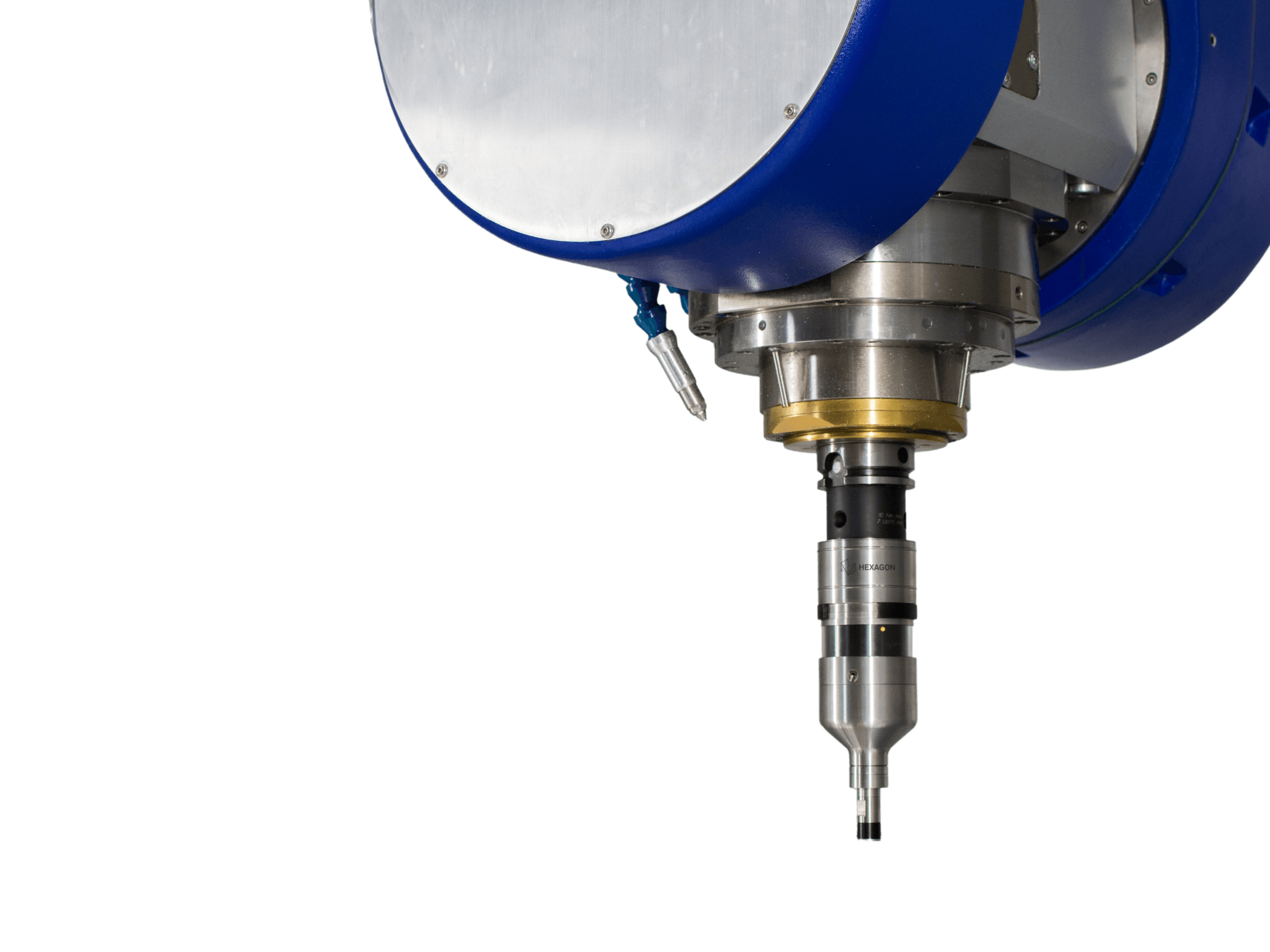

The RWP20.50-G-UTP is a complete solution for wall thickness measurement directly on the machine tool.

harware-info-image

Complete solution for wall thickness measurement directly on the machine tool

The RWP20.50-G-UTP ultrasonic touch probe makes it simple to automatically measure the thickness of the walls of larger parts directly on the machine tool, resulting in significantly faster inspections and enhanced data capture.

RWP20.50-G-UTP Ultrasonic Measurement Solution Specifications

Accuracy

+/- 10 μm​

Measuring range​

Dry: 0,7 - 9mm​

Wet: 0,7 - 9mm or 1,5 - 30mm​

Temperature range​

Operation: 10° – 50°C ​

Storage: 5° – 70°C​

Power supply

1 x 9 V battery block, 6LR61 ​

Lithium: 1200 mAh,​

Alkaline: 550 mAh​

Protection class​

IP68: EN60529​

Signal transmission​

Radio Wave​
