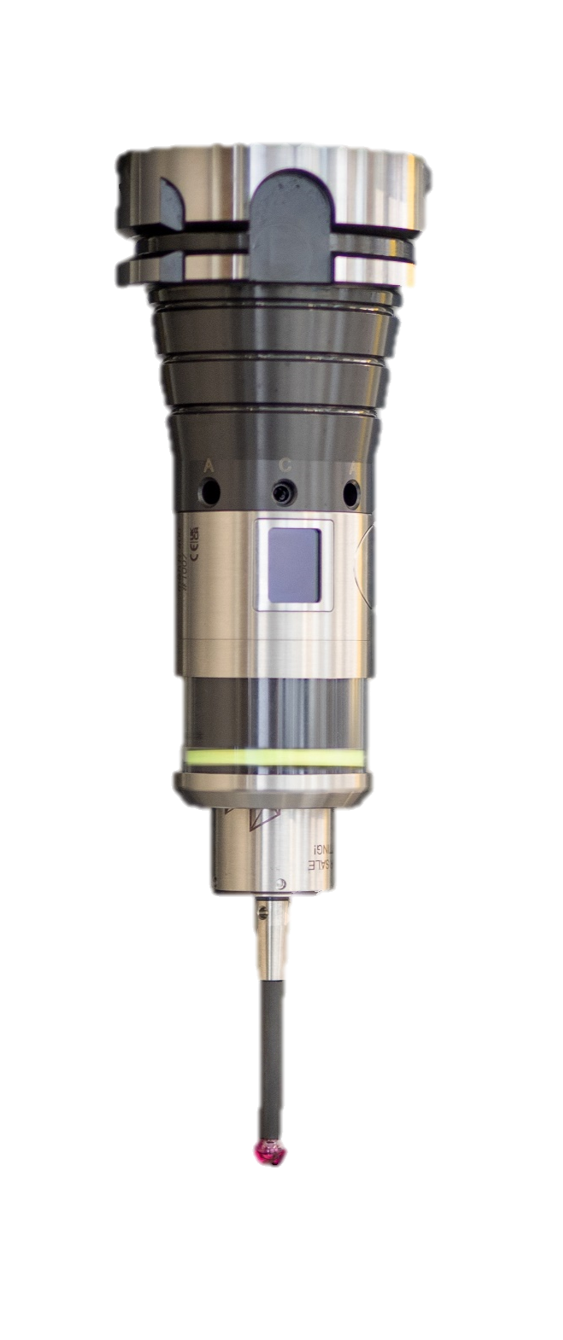

Radio probe m&h TP-R-400

Versatile and compact radio probe with unique handling

Despite its compact size, a wide range of different measuring units, diverse extensions and styli configurations can be used to maximize flexibility and efficiency. This means the m&h TP-R-400 can be optimally adapted to future requirements and applications on the machine tool.

The probe was designed for ideal use in a modern production environment. Equipped with an all-round illumination ring, unique handling and a display on the probe, configuration changes and status checks of the probe have never been easier. Additionally, equipped with a separate base plate, the TP-R-400 can even be converted into a tool-setter.

Versatile and compact radio probe with unique handling

HxGN NC Measure (Software)

m&H NC Gage (Software)

The simple use, and innovative “Teach-in” process allow a user to create gauging programs without previous programming knowledge.

3D Form Inspect (Software)

This software enables quick measuring and logging of important geometries and shapes on all sides and axes directly on the machine tool.

3D Form Inspect Jobmaster (Software)

3D Form Inspect increases your productivity, reduces production costs and guarantees high flexibility – together this is Connected Probing.

Radio Receiver m&h RC-R-100

The multifunctional radio receiver for the complete machine tool multi-sensor portfolio.

Radio Receiver m&h RC-R-100-CORE

The multifunctional radio receiver for the complete machine tool multi-sensor portfolio.

Radio Tool Setter TS-R-400

The TS-R-400 radio tool setter measuring system efficiently determines tool geometries such as tool length and radius on the machine tool.

Radio Temperature Probe m&h RWP20.50-TP

Fast and reliable on-machine measurement of workpiece temperature.

RWP20.50-G-UTP Ultrasonic Measurement Solution

The RWP20.50-G-UTP is a complete solution for wall thickness measurement directly on the machine tool.

Radio High Accuracy Probe m&h RWP20.50-HPP

RWP20.50-HPP deploys laser-triangulation inside the measurement unit for high repeatability, low pre-travel variation and low 3D form error.

Training and Resources

Radio probe m&h TP-R-400 Specifications

Accuracy	Triggering force	Temperature range	Power supply
Max. 1μm (2 Sigma) with 50 mm Stylus at 254 mm/min	PP41.00 – XY = 0,3 - 1,4 N; Z = 2,5 - 12,5 N MY21.00 – XY = 1 N; Z = 6 N	Operation: 10° to 50°C Storage: -20° to 70°C	2x battery (3,6 V / ½AA)
Protection class	Signal transmission
IP68: EN60529	Radio-wave (up-to 18m)

Accuracy

Triggering force

Temperature range

Power supply

Max. 1μm (2 Sigma) with 50 mm Stylus at 254 mm/min

PP41.00 – XY = 0,3 - 1,4 N; Z = 2,5 - 12,5 N

MY21.00 – XY = 1 N; Z = 6 N

Operation: 10° to 50°C

Storage: -20° to 70°C

2x battery (3,6 V / ½AA)

Protection class

Signal transmission

IP68: EN60529

Radio-wave (up-to 18m)

Accuracy
Max. 1μm (2 Sigma) with 50 mm Stylus at 254 mm/min
Triggering force
PP41.00 – XY = 0,3 - 1,4 N; Z = 2,5 - 12,5 N MY21.00 – XY = 1 N; Z = 6 N
Temperature range
Operation: 10° to 50°C Storage: -20° to 70°C
Power supply
2x battery (3,6 V / ½AA)
Protection class
IP68: EN60529
Signal transmission
Radio-wave (up-to 18m)
