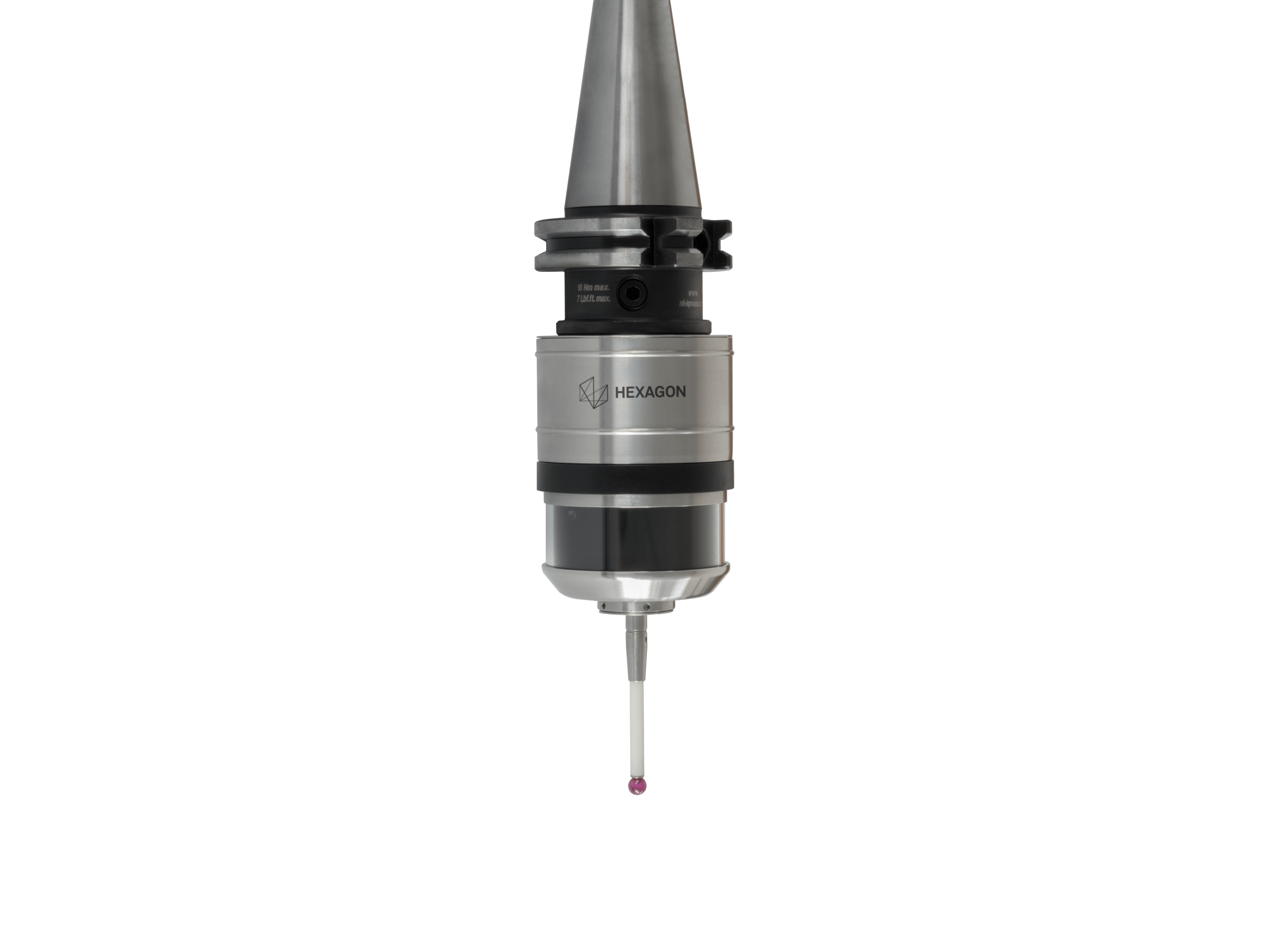

Radio-wave Touch Probe m&h RWP20.50

Radio-wave touch probes of the newest generation

m&h RWP20.50 radio-wave touch probes are available in two different frequency ranges. As a technology pioneer, m&h long ago introduced the first reliably functioning probe with radio-wave transmission of the measurement signals onto the market. The industrial frequency band of 433 MHz is still used today for reliable transmission of time-critical signals. The new radio-wave touch probe is still compatible with existing equipment in the available 433 MHz version. Alternatively to this, the new m&h RWP20.50 radio-wave touch probe is also available with a new radio transmission technology in the frequency range of 2.4 - 2.4835 GHz.

Training and Resources

Radio-wave Touch Probe m&h RWP20.50 Specifications

Accuracy	Triggering force	Temperature range	Power supply
Max. 1μm (2 Sigma) with 50 mm Stylus at 254 mm/min	PP41.00 – XY = 0,3 - 1,4 N; Z = 2,5 - 12,5 N MY21.00 – XY = 1 N; Z = 6 N	Operation: 10°- 50°C Storage: 5°- 70°C	1 x 9 V battery block, 6LR61 Lithium: 1200 mAh, Alkaline: 550 mAh
Protection class	Signal transmission
IP68: EN60529	Radio-wave

Accuracy

Triggering force

Temperature range

Power supply

Max. 1μm (2 Sigma) with 50 mm Stylus at 254 mm/min

PP41.00 – XY = 0,3 - 1,4 N; Z = 2,5 - 12,5 N

MY21.00 – XY = 1 N; Z = 6 N

Operation: 10°- 50°C

Storage: 5°- 70°C

1 x 9 V battery block, 6LR61

Lithium: 1200 mAh,

Alkaline: 550 mAh

Protection class

Signal transmission

IP68: EN60529

Radio-wave

Accuracy
Max. 1μm (2 Sigma) with 50 mm Stylus at 254 mm/min
Triggering force
PP41.00 – XY = 0,3 - 1,4 N; Z = 2,5 - 12,5 N MY21.00 – XY = 1 N; Z = 6 N
Temperature range
Operation: 10°- 50°C Storage: 5°- 70°C
Power supply
1 x 9 V battery block, 6LR61 Lithium: 1200 mAh, Alkaline: 550 mAh
Protection class
IP68: EN60529
Signal transmission
Radio-wave
