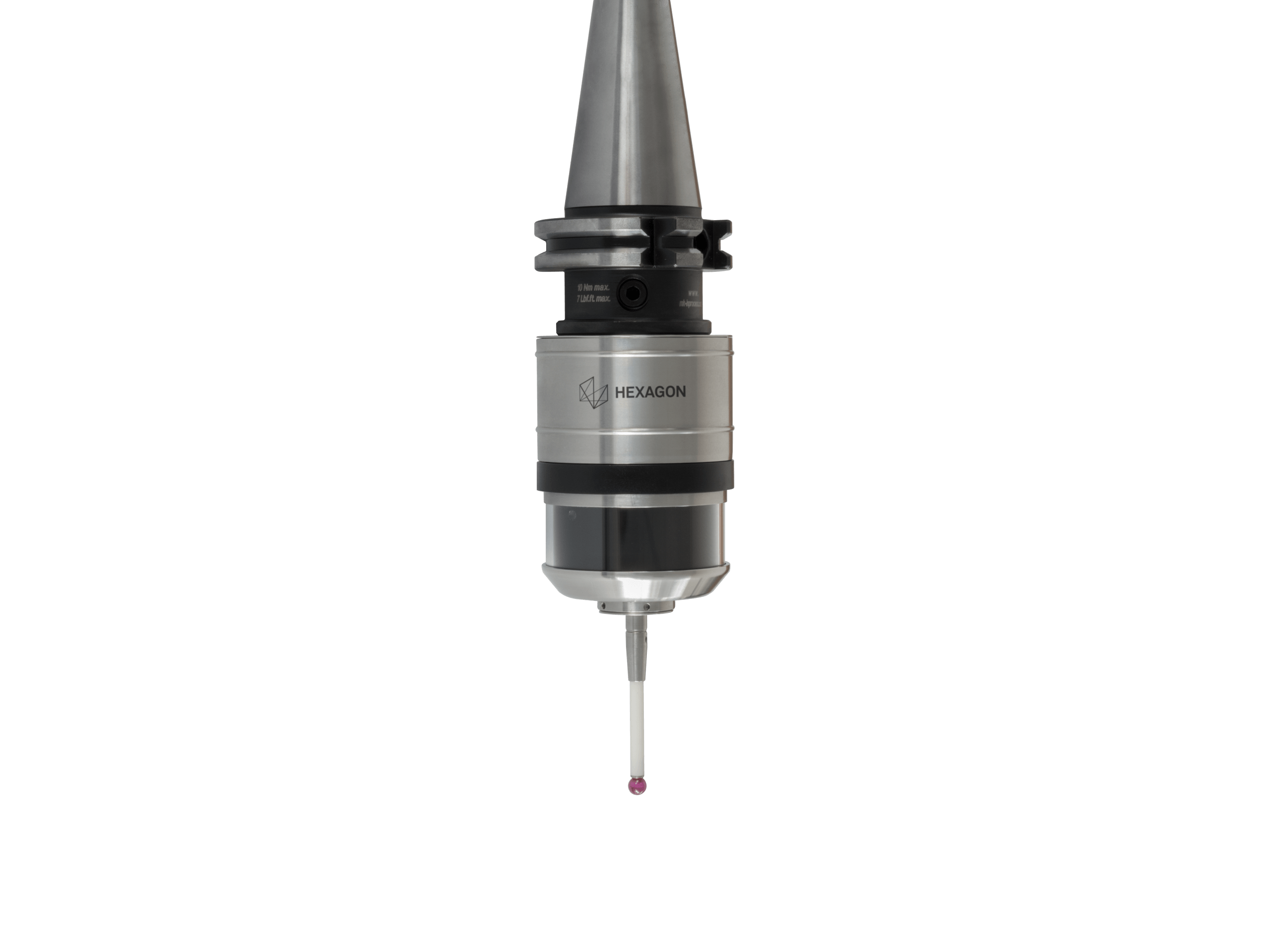

Radio High Accuracy Probe m&h RWP20.50-HPP

Hexagon’s most accurate touch probe for machine tools

Many applications, for example, the measurement of freeform shapes or checking machine kinematics, need extremely precise measurement results in 2D and 3D. These are best achieved by deploying Hexagon’s patent-pending laser-triangulation technology inside the RWP20.50-HPP radio-wave touch probe.

The RWP20.50 modular probing system can be used for various applications and easily modified by simply screwing in various measuring units. Extensions and cross-probes can also be used.

Training and Resources

Radio High Accuracy Probe m&h RWP20.50-HPP Specifications

Accuracy	Triggering force	Temperature range	Power supply
Max. 0.25 μm (2 Sigma) with 50 mm stylus and 254 mm/min probing feed rate	XY = 0.1 N (typical value), Z = 2.5 N (typical value)	Operation: 10°- 50°C Storage: 5°- 70°C	1 x 9 V battery block, 6LR61 Lithium: 1200 mAh, Alkaline: 550 mAh
Protection class	Signal transmission
IP68: EN60529	Radio-wave

Accuracy

Triggering force

Temperature range

Power supply

Max. 0.25 μm (2 Sigma) with 50 mm stylus and 254 mm/min probing feed rate

XY = 0.1 N (typical value),

Z = 2.5 N (typical value)

Operation: 10°- 50°C

Storage: 5°- 70°C

1 x 9 V battery block, 6LR61

Lithium: 1200 mAh,

Alkaline: 550 mAh

Protection class

Signal transmission

IP68: EN60529

Radio-wave

Accuracy
Max. 0.25 μm (2 Sigma) with 50 mm stylus and 254 mm/min probing feed rate
Triggering force
XY = 0.1 N (typical value), Z = 2.5 N (typical value)
Temperature range
Operation: 10°- 50°C Storage: 5°- 70°C
Power supply
1 x 9 V battery block, 6LR61 Lithium: 1200 mAh, Alkaline: 550 mAh
Protection class
IP68: EN60529
Signal transmission
Radio-wave

Support

Connect and collaborate with your peers and experts

The Nexus Community provides you with excellent peer forums and the opportunity to learn from thousands of others in your industry. Currently, hundreds of peer forums waiting for you to explore into. Discover best practices and get the answers you need to succeed. Register for Nexus to get full access the Community forums.

Our team is ready to help

Our technical support teams are on hand to answer your questions. Contact us through our online form and we will get right back to you.

HxGN NC Measure (Software)

m&H NC Gage (Software)

The simple use, and innovative “Teach-in” process allow a user to create gauging programs without previous programming knowledge.

3D Form Inspect Jobmaster (Software)

3D Form Inspect increases your productivity, reduces production costs and guarantees high flexibility – together this is Connected Probing.

3D Form Inspect (Software)

This software enables quick measuring and logging of important geometries and shapes on all sides and axes directly on the machine tool.

Radio Receiver m&h RC-R-100

The multifunctional radio receiver for the complete machine tool multi-sensor portfolio.

Radio-wave Touch Probe m&h RWP20.50

Radio-wave touch probes of the newest generation.

Radio Temperature Probe m&h RWP20.50-TP

Fast and reliable on-machine measurement of workpiece temperature.

RWP20.50-G-UTP Ultrasonic Measurement Solution

The RWP20.50-G-UTP is a complete solution for wall thickness measurement directly on the machine tool.
