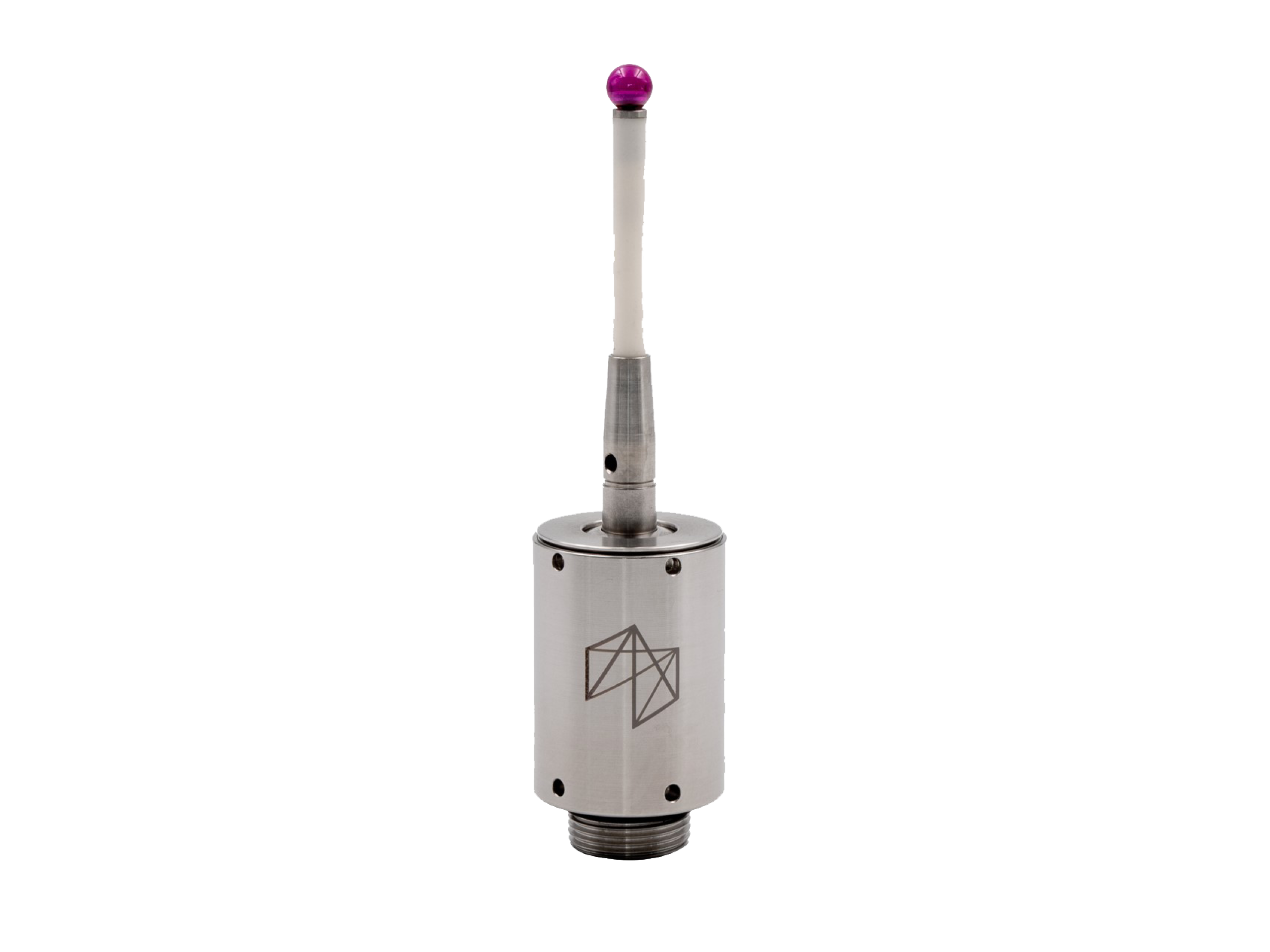

Production Probe m&H PP41.00

A robust and compatible, true alternative

The production probe PP41.00 fits many application possibilities on tool grinding machines, cylindrical grinding machines, rotary transfer machines, and special measuring tasks.

Application:

Determination of workpiece zero point
Determination of workpiece tolerances
Control measurement of workpiece dimensions

Benefits:

High-precision measuring unit
Operation suitable for the workshop
Sturdy and protected

A robust and compatible, true alternative

The production probe PP41.00 fits many application possibilities on tool grinding machines, cylindrical grinding machines, rotary transfer machines, and special measuring tasks.

Application:

Determination of workpiece zero point
Determination of workpiece tolerances
Control measurement of workpiece dimensions

Benefits:

High-precision measuring unit
Operation suitable for the workshop
Sturdy and protected

Training and Resources

Production Probe m&H PP41.00 Specifications

Accuracy	Triggering force	Temperature range	Power supply
Max. 1μm (2 Sigma) with 50 mm Stylus and 480 mm/min	X/Y = 0,3 - 1,4 N (Factory settings = 1 N) Z = 2,5 - 12,5 N(Factory settings = 8,5 N)	Operation: 10° C – 50° C Storage: 5° C – 70° C	1 x 9 V battery block 6LR61, Lithium: 1200 mAh Alkaline: 550 mAh
Protection class	Signal transmission
IP68: EN60529	Infrared and Radio-wave

Accuracy

Triggering force

Temperature range

Power supply

Max. 1μm (2 Sigma) with 50 mm Stylus and 480 mm/min

X/Y = 0,3 - 1,4 N (Factory settings = 1 N)

Z = 2,5 - 12,5 N(Factory settings = 8,5 N)

Operation: 10° C – 50° C

Storage: 5° C – 70° C

1 x 9 V battery block 6LR61,

Lithium: 1200 mAh

Alkaline: 550 mAh

Protection class

Signal transmission

IP68: EN60529

Infrared and Radio-wave

Accuracy
Max. 1μm (2 Sigma) with 50 mm Stylus and 480 mm/min
Triggering force
X/Y = 0,3 - 1,4 N (Factory settings = 1 N) Z = 2,5 - 12,5 N(Factory settings = 8,5 N)
Temperature range
Operation: 10° C – 50° C Storage: 5° C – 70° C
Power supply
1 x 9 V battery block 6LR61, Lithium: 1200 mAh Alkaline: 550 mAh
Protection class
IP68: EN60529
Signal transmission
Infrared and Radio-wave
