PRIMEScan

An entry-level solution for highly precise 3D digitisation of industrial components.

harware-info-image

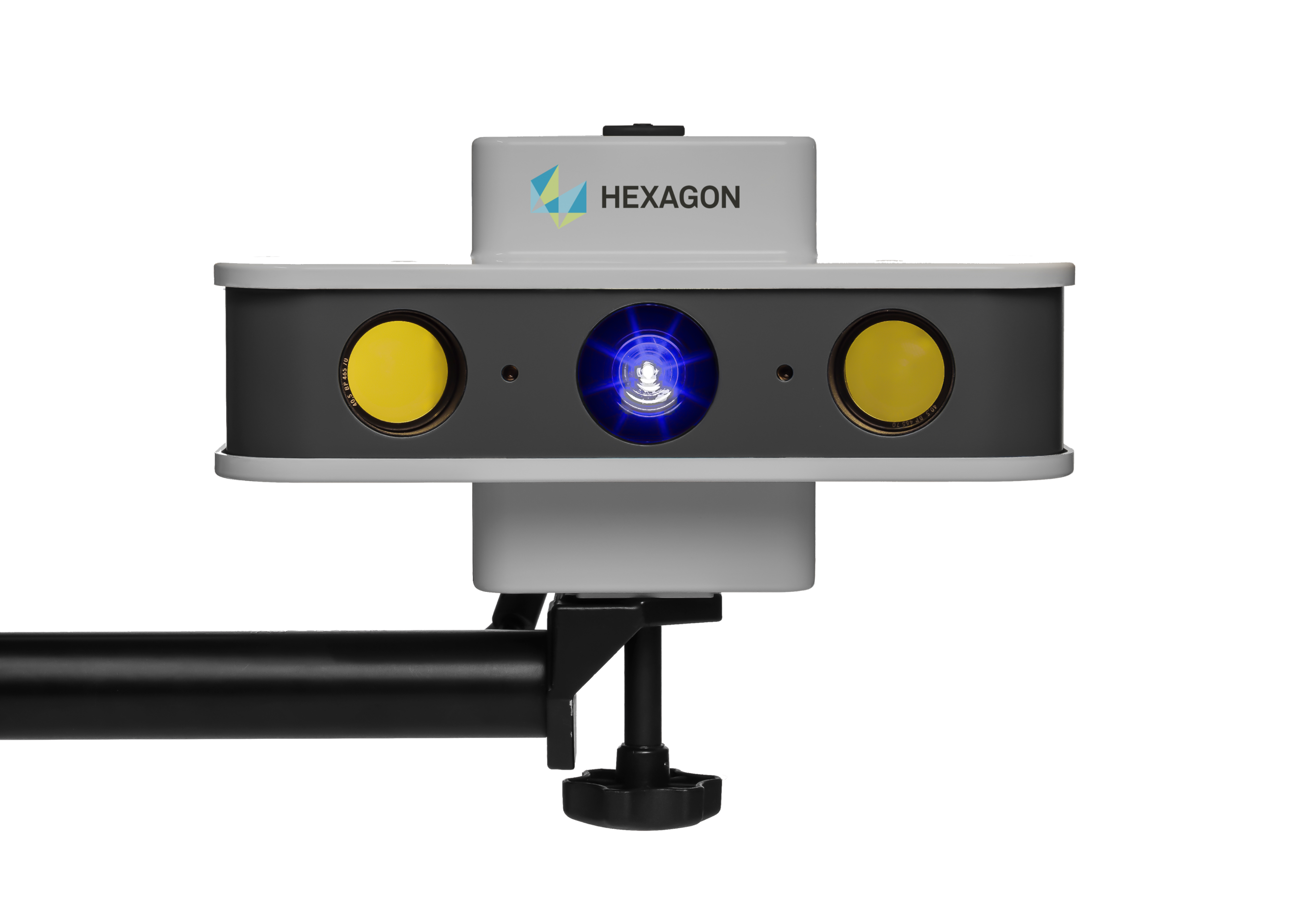

Simple and precise optical 3D scanning

The PrimeScan optical 3D scanner line from Hexagon is an attractive entry-level solution for highly precise 3D digitisation of industrial components. Like other Hexagon structured light scanner models, the PrimeScan is based on fringe projection technology that provides the strongest luminous power and highest projection quality.

PRIMEScan Specifications

Camera sensor​

Camera resolution

Projection unit​

Min. measuring time​

Monochrome, CMOS, 2/3”​

Monochrome, CCD 1”

5.0 MP | 2448 x 2078​

8.0 MP | 3264 x 2448

Miniaturized projection technique

1 sec.

Sensor weight

Control unit​

Accuracy₁

3.8 kg

Integrated, USB 3.0

From 4 μm (PrimeScan R5)​

From 6 μm (PrimeScan R8)

₁ Sphere spacing error.​
