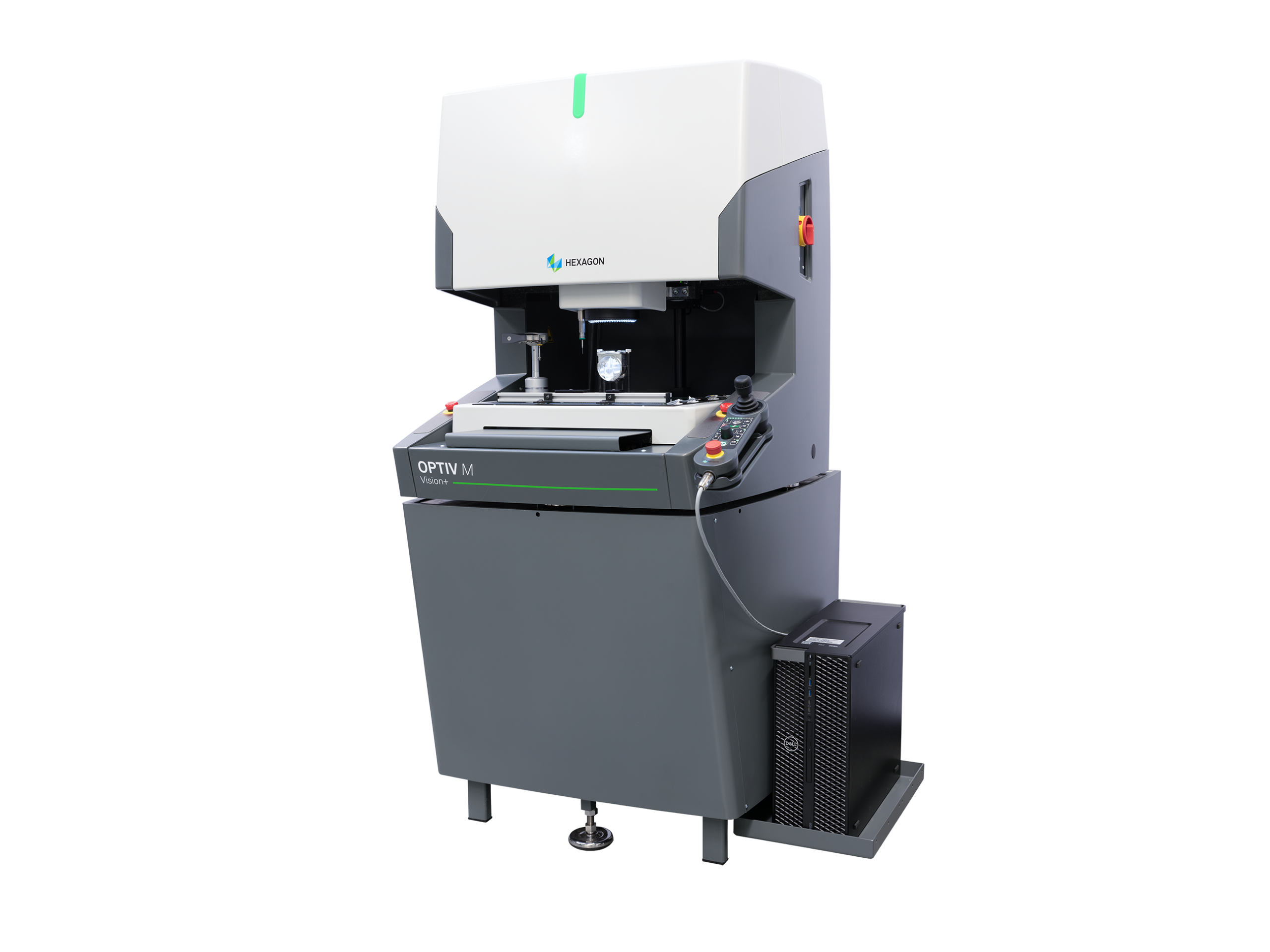

OPTIV M Vision+
OPTIV M Vision+ provides an all-in-one solution for the multisensor measurement of geometric size features on precision parts.
The performance standard for general-purpose 3D multisensor measurements
- All-in-one metrology solution – camera sensor + touch-trigger probe + CNC rotary table allow for a flexibly adaptable multisensor performance.
- Future-ready modularity allows for easy in-field upgrade of the base system.
ISO 10360 compliant 3D measurement performance with high accuracy – optical and tactile. - Effortless smart manufacturing integration of OPTIV M Vision+ due to standardized automation interface and seamless integration with Hexagon’s IoT technologies for remote asset and environment monitoring.
- Intuitive operability of OPTIV M Vision+ through a simplified operator interface.
- Future-proof investment fully backed up by Hexagon’s global service and support network.
OPTIV M Vision+ Specifications
Available Size (X, Y, Z)
3.2.2 / 4.4.3 / 6.6.4
Accuracy
From 1.9 + L / 250) μm, E0,MPE₁
Probe type compatibility
Vision sensor
Touch-trigger probe (optional)
Automation ready
YES
Temperature specification
18-22 °C
Overall Dimensions (mm) | |||
|---|---|---|---|
Model | LX | LY | LZ |
3.2.2 | 860 | 1025 | 1700 |
4.4.3 | 948 | 1310 | 2277 |
6.6.4 | 1416 | 1734 | 2530 |
₁ L = measuring length [mm]. Volumetric length measuring error according to ISO 10360-2:2009 at 18-22 °C
