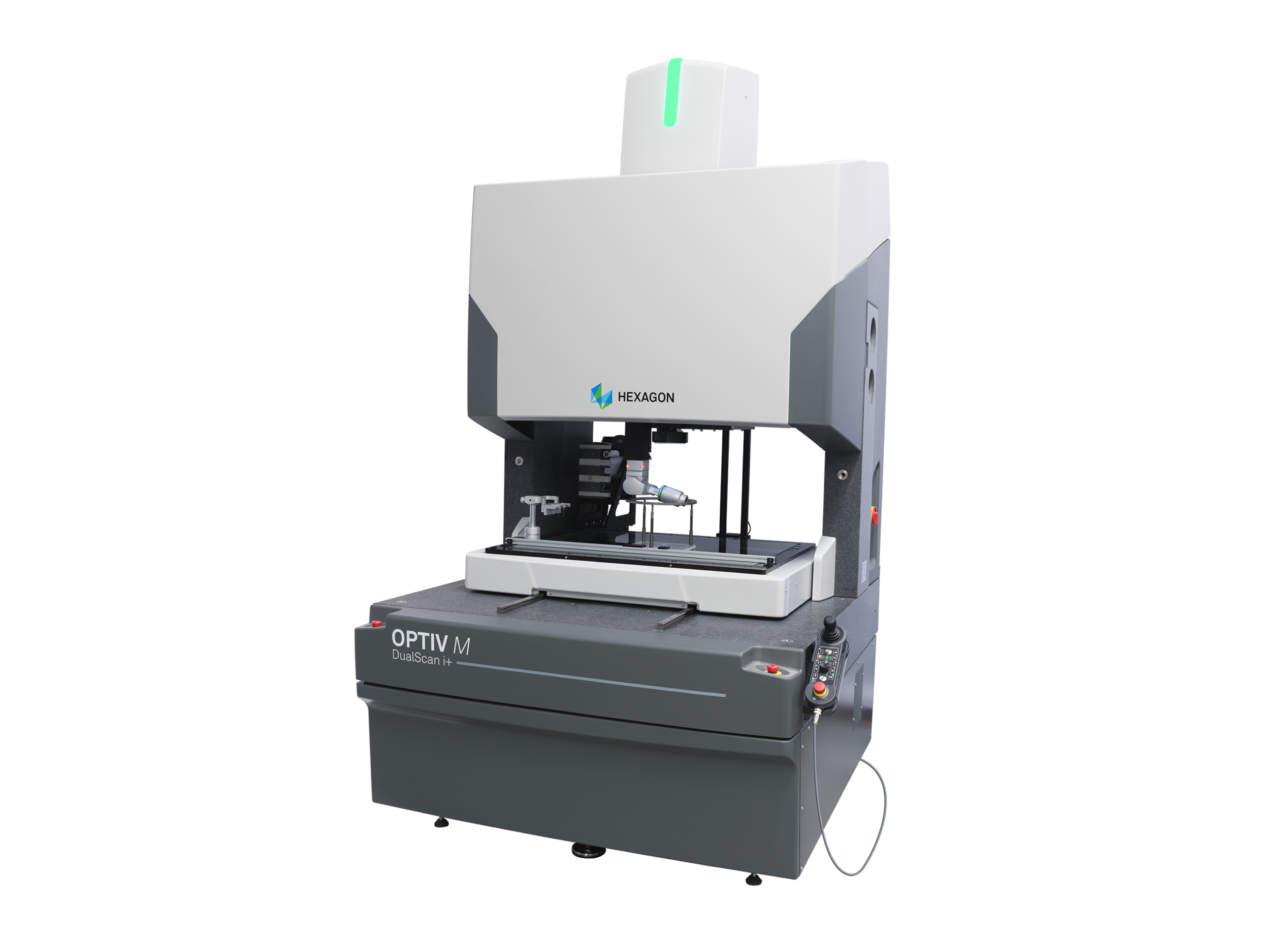

OPTIV M DualScan i+

All-in-one metrology solution with two independent sensor axes

OPTIV M DualScan i+ offers measurement time improvements for an extended range of complex precision parts by deploying automatically exchangeable sensors in conjunction with an indexing probe head. This system guarantees optimum feature accessibility for large or heavy parts that must remain stationary within the measuring volume.

All-in-one metrology solution with two independent sensor axes

HP-S-X1 Scanning Probes

Conduct quick, flexible and accurate measurements across many applications with sensitive sensors and automated probe changes.

HH-A-T2.5 / HH-AS-T2.5 Automatic 2.5° Probe Heads

The HH-A-T2.5 is capable of indexing in 2.5° increments and can achieve 12,240 unique positions.

HP-OW Optical Sensor

The HP-OW sensor uses chromatic white-light spectroscopy to take highly accurate measurements on varied surface finishes.

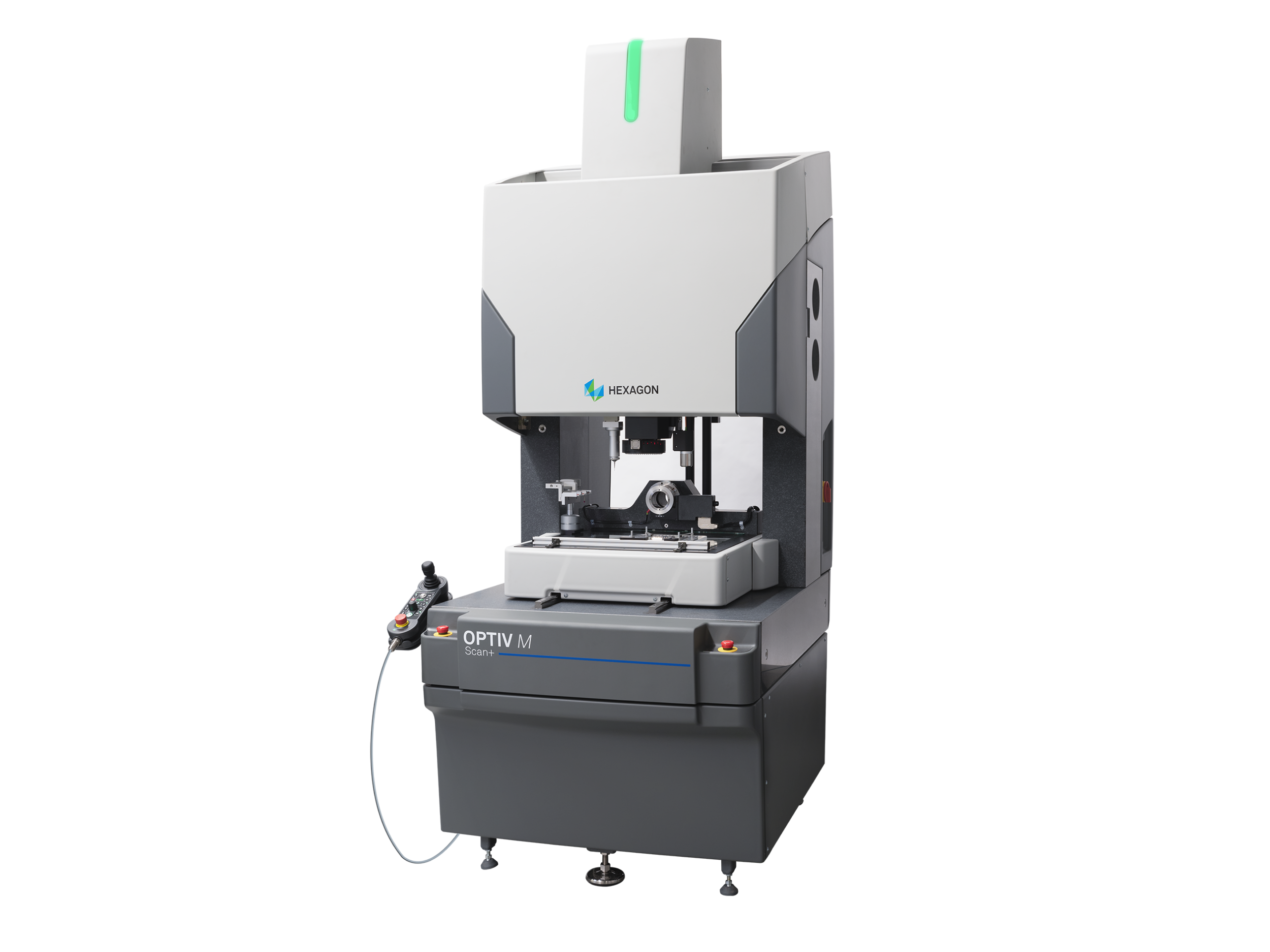

OPTIV M DualScan+

Integration of OPTIV M DualScan i+ due to standardised automation interface and seamless integration with Hexagon’s IoT technologies.

OPTIV M Vision+

OPTIV M Vision+ provides an all-in-one solution for the multisensor measurement of geometric size features on precision parts.

OPTIV M Scan+

Integration of OPTIV M DualScan i+ due to standardised automation interface and seamless integration with Hexagon’s IoT technologies.

Training and Resources

OPTIV M DualScan i+ Specifications

Available Size (X, Y, Z)	Accuracy	Probe type compatibility	Automation ready
6.6.4	From 2.9 + L / 250) μm, E0,MPE₁	Vision sensor Scanning probe Non-contact sensor (optical sensor)	YES
Temperature specification
18-22 °C

Available Size (X, Y, Z)

Accuracy

Probe type compatibility

Automation ready

6.6.4

From 2.9 + L / 250) μm, E0,MPE₁

Vision sensor

Scanning probe

Non-contact sensor (optical sensor)

YES

Temperature specification

18-22 °C

Available Size (X, Y, Z)
6.6.4
Accuracy
From 2.9 + L / 250) μm, E0,MPE₁
Probe type compatibility
Vision sensor Scanning probe Non-contact sensor (optical sensor)
Automation ready
YES
Temperature specification
18-22 °C

₁ L = measuring length [mm]. Volumetric length measuring error according to ISO 10360-2:2009 at 18-22 °C
