Integration of OPTIV M DualScan i+ due to standardised automation interface and seamless integration with Hexagon’s IoT technologies.

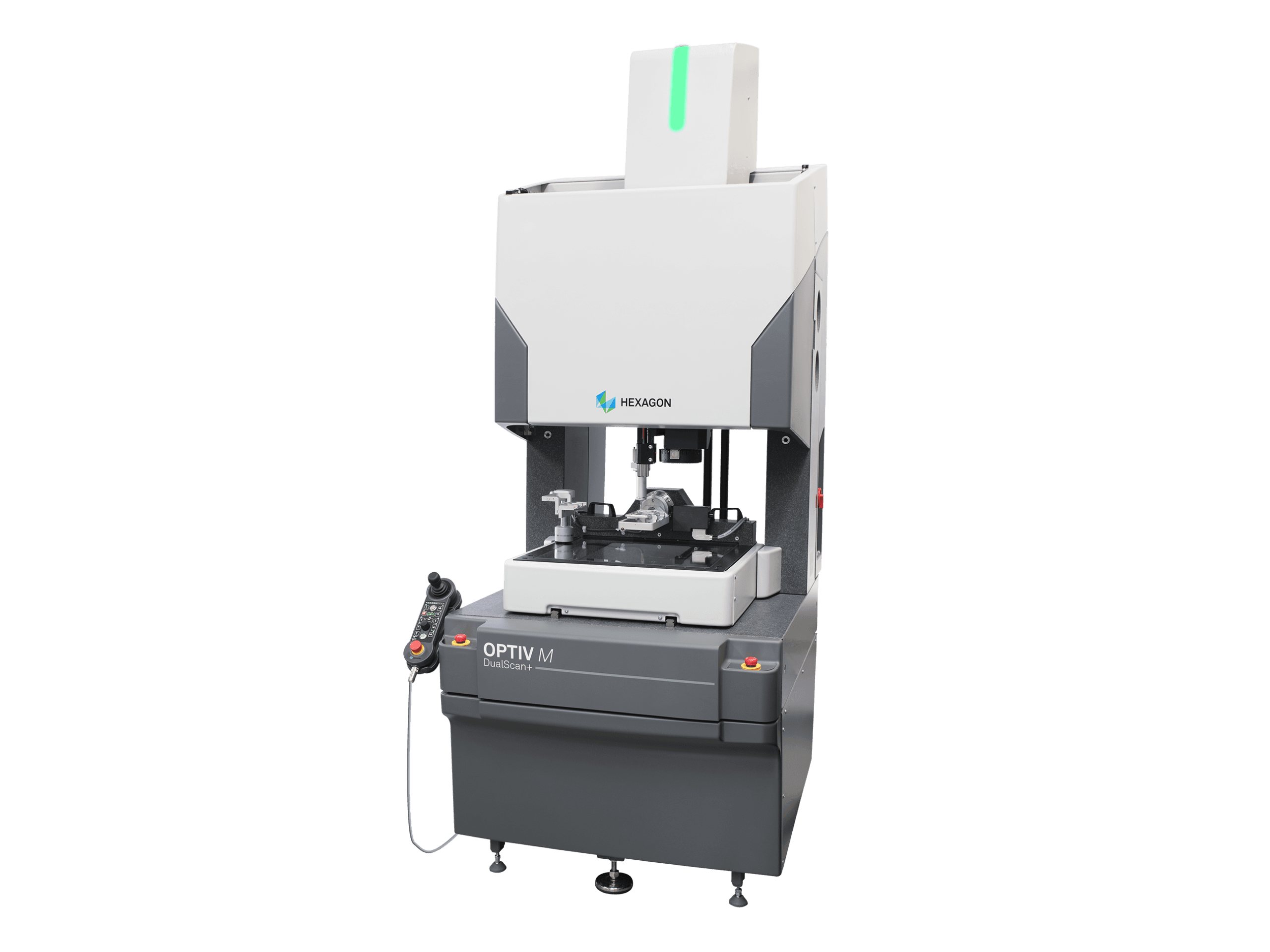

OPTIV M DualScan i+ offers measurement time improvements for an extended range of complex precision parts by deploying automatically exchangeable sensors in conjunction with an indexing probe head. This system guarantees optimum feature accessibility for large or heavy parts that must remain stationary within the measuring volume.
Enhanced efficiency multisensor with two independent sensor axes.
Fast and accurate measurement of 3D form features and surface profiles.
Added ability for single-setup measurements through maximized workpiece accessibility.
Added ability for surface independent non-contact measurement of extremely small 3D structures.
Fastest way to small features and/or soft and sensitive parts.
Available Size (X, Y, Z)
4.4.3
6.6.4
Accuracy
From 1.9 + L / 250) μm, E0,MPE₁
Probe type compatibility
Vision sensor
Scanning probe
Chromatic white light sensor (optional)
Automation ready
YES
Temperature specification
18-22 °C
Overall Dimensions (mm) | |||
|---|---|---|---|
Model | LX | LY | LZ |
4.4.3 | 948 | 1310 | 2277 |
6.6.4 | 1416 | 1734 | 2530 |
₁ L = measuring length [mm]. Volumetric length measuring error according to ISO 10360-2:2009 at 18-22 °C
