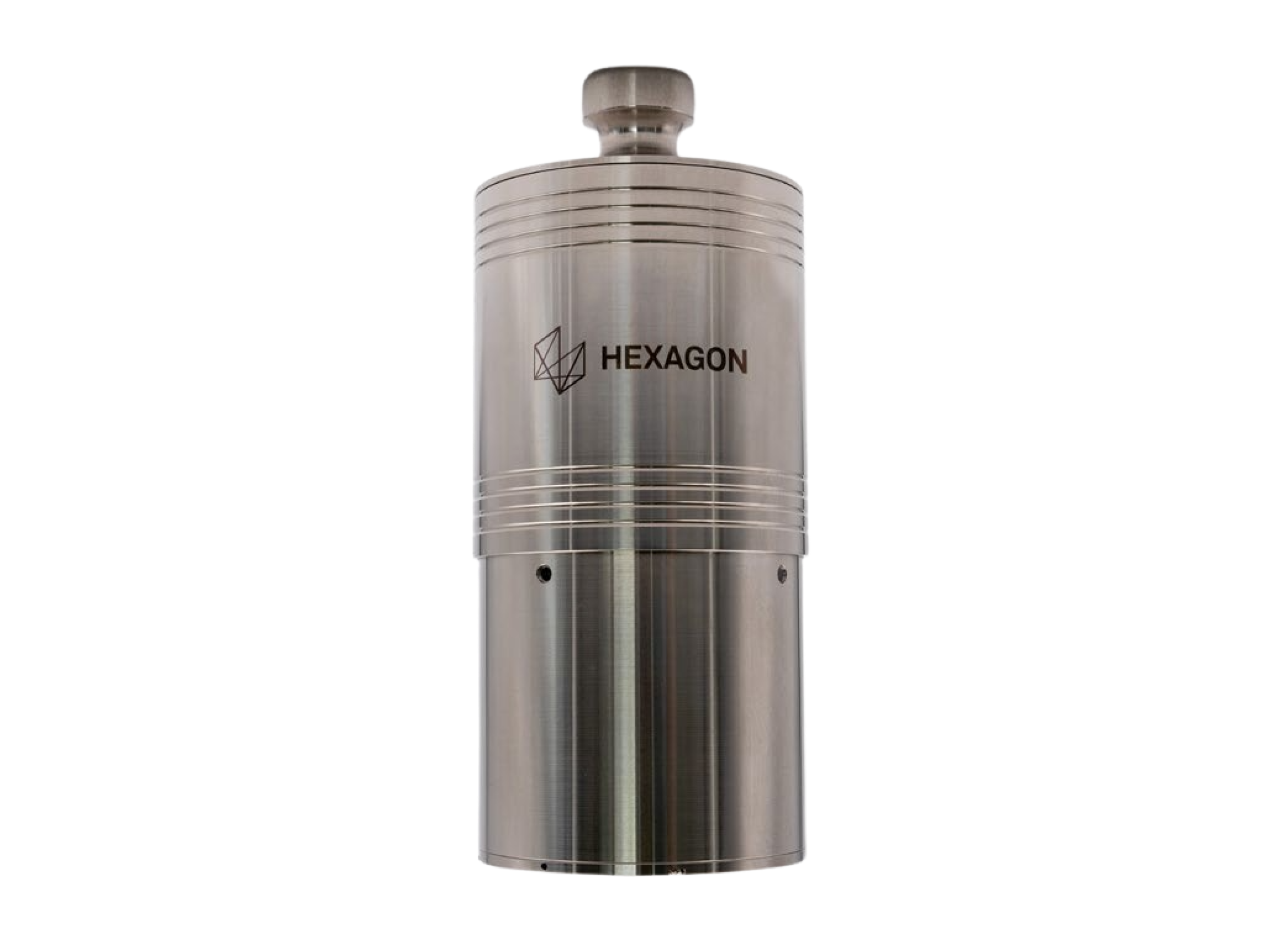

m&h LS-R-4.8 Radio laser scanner

Wireless radio scanning for rapid measurements.

Skip to

The wireless laser scanner that works automatically with a tool changer

The m&h LS-R-4.8 is a wireless laser scanner for machine tools. Data is transmitted via radio to the machine control and measuring software, which is why the sensor can be changed in and out of the tool changer without any manual steps.

m&h LS-R-4.8 Radio laser scanner Specifications

Laser class & type

Class 2 | PLB450B (laser diode)

Accuracy

30 μm(₁)

Working distance

115 +/- 40 mm

Temperature range

Operation: 5° C – 40°C

Power supply

4x 3.7V battery, 26650, Li-ion, 5000mAh

Protection class

IP68 (IEC 60529)

Signal transmission

Radio wave

₁ Depending on the application and installation situation
