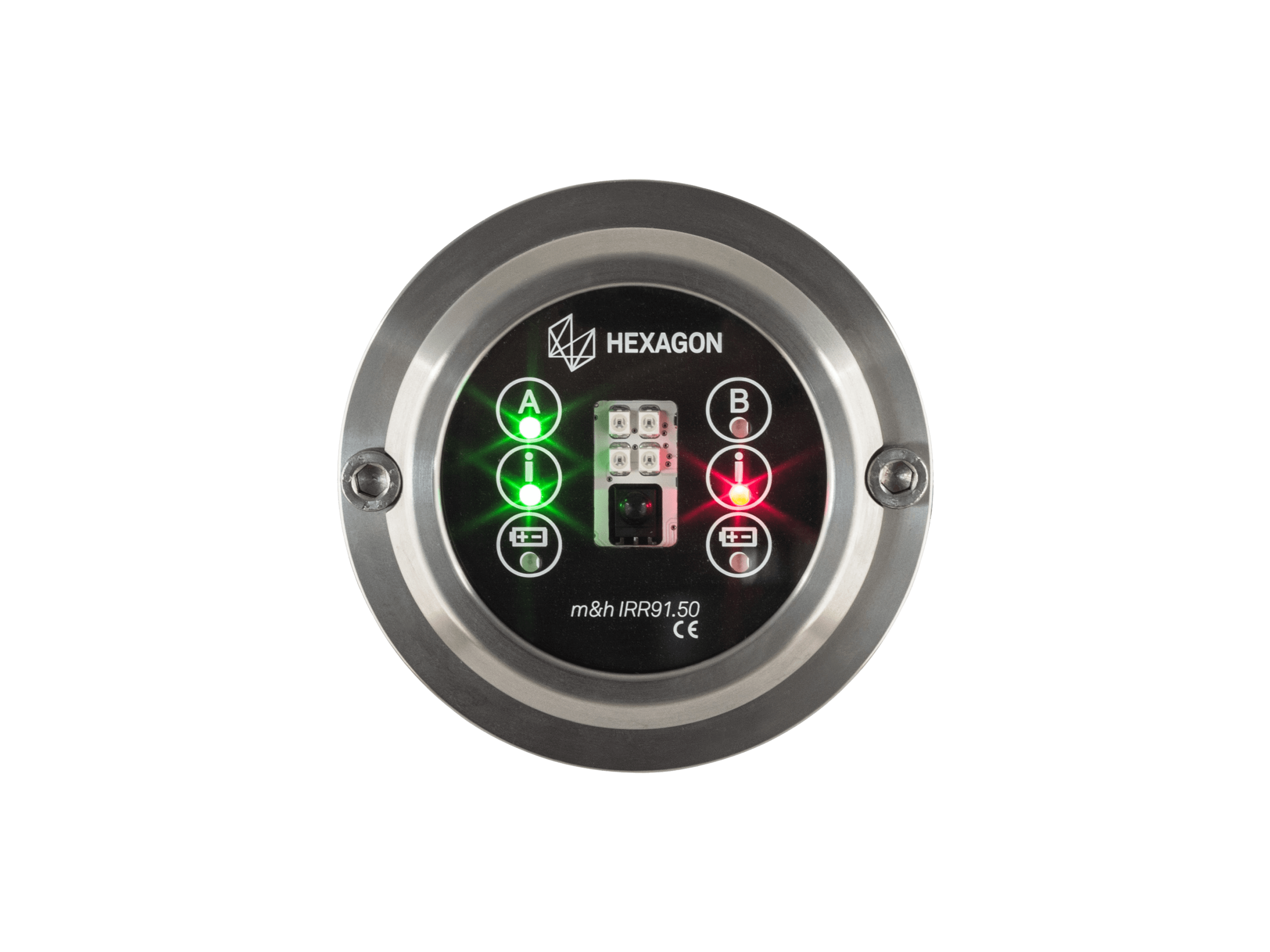

Infrared Receiver m&h IRR91.50

Infrared receiver with dual-probe as well as bidirectional HDR+ technology

The bidirectional infrared receiver IRR91.50 is able to simultaneously communicate with two probing systems on the same machine. It has large transmission and receiving angles and can be used for all m&h infrared probes and tool setters. All necessary components are integrated in the stainless steel casing; thus, no additional interface in the electric cabinet is required.

Infrared receiver with dual-probe as well as bidirectional HDR+ technology

Training and Resources

Infrared Receiver m&h IRR91.50 Specifications

Temperature range	Power supply	Protection class	Signal transmission
Operation: 10° - 50°C Storage: 5° - 70°C	12 - 23 VDC, max. 100 mA	IP68: EN60529, IEC529/DIN40050	Infrared

Temperature range

Power supply

Protection class

Signal transmission

Operation: 10° - 50°C

Storage: 5° - 70°C

12 - 23 VDC, max. 100 mA

IP68: EN60529, IEC529/DIN40050

Infrared

Temperature range
Operation: 10° - 50°C Storage: 5° - 70°C
Power supply
12 - 23 VDC, max. 100 mA
Protection class
IP68: EN60529, IEC529/DIN40050
Signal transmission
Infrared
