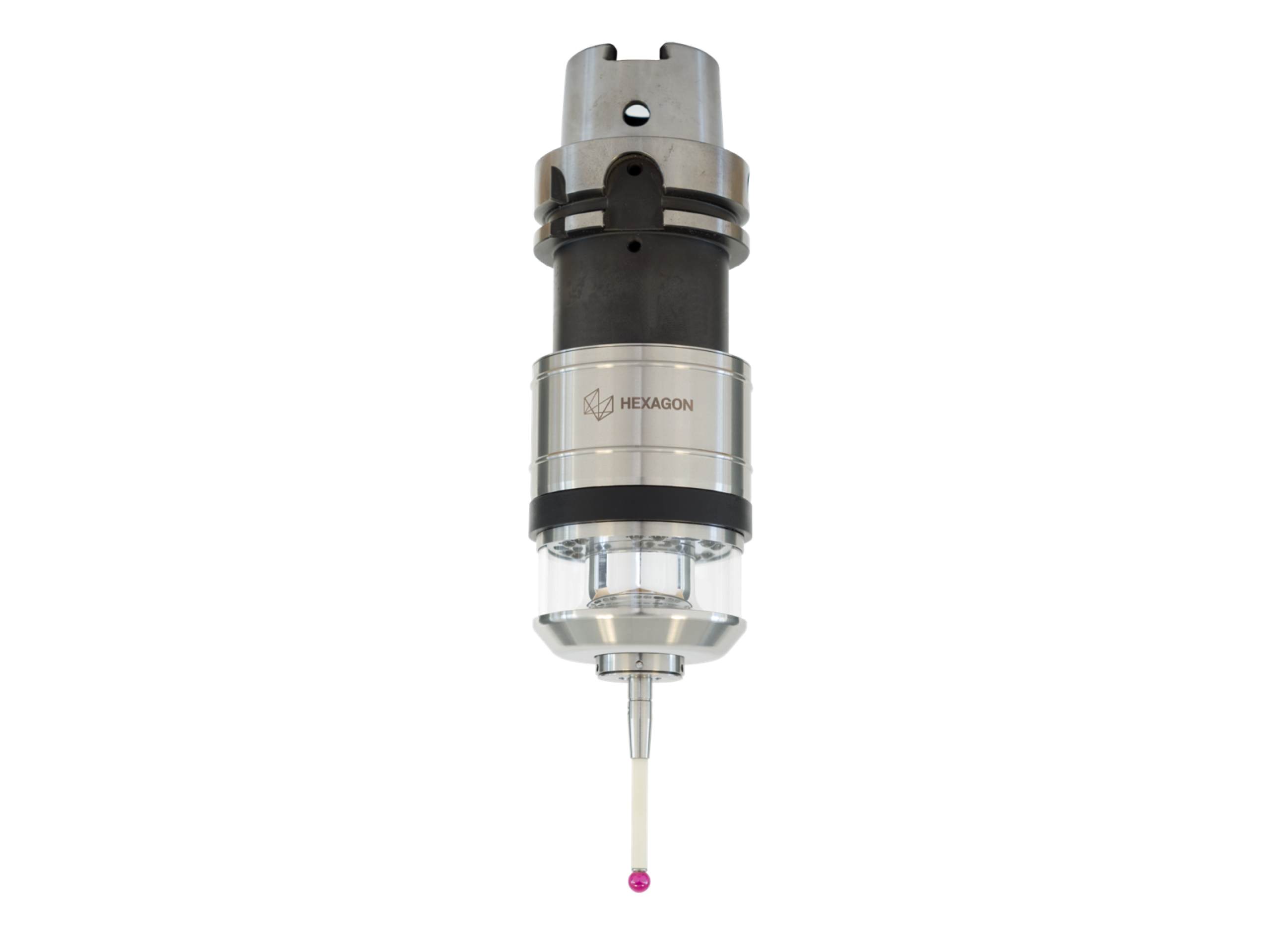

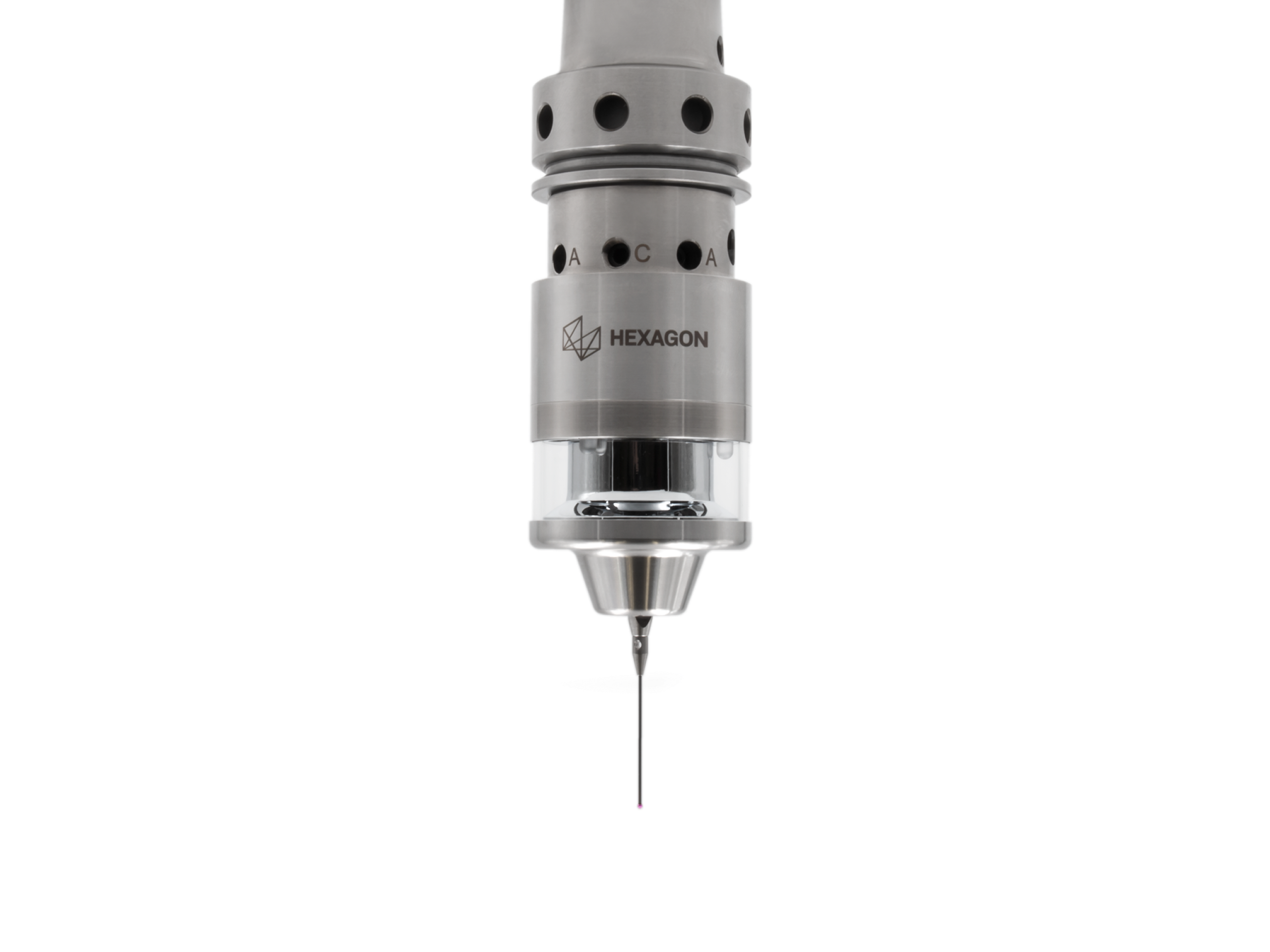

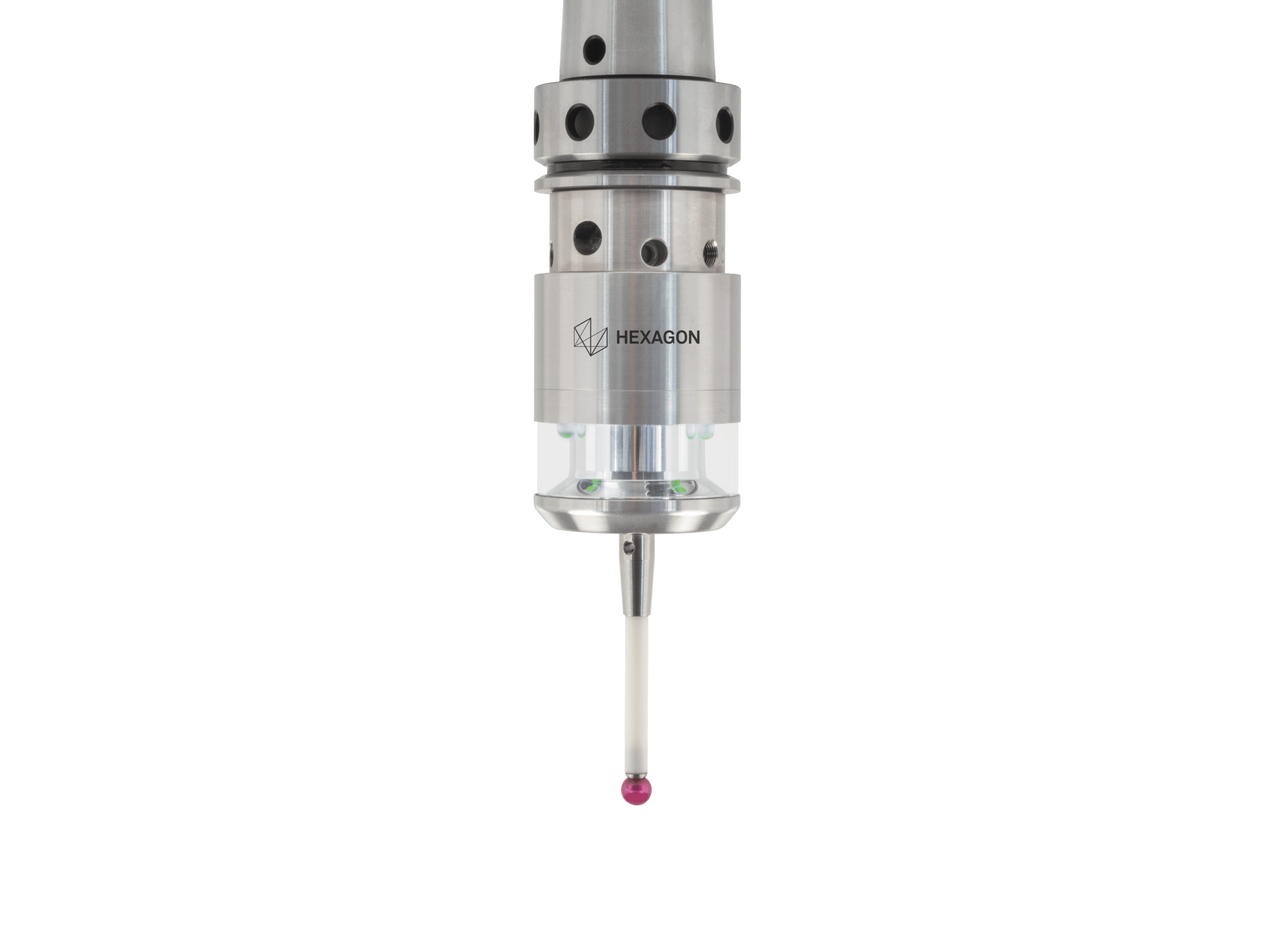

Infrared Probe m&h IRP40.02

The infrared touch probe for mass production

The m&h IRP40.02 infrared touch probe system meets all requirements for measurement on the machine tool. Extreme accelerations, high positioning speeds, constant vibrations, hard tool changes, increased temperatures and aggressive coolants pose no problems for m&h touch probes. m&h’s precision mechanics can continue to switch extremely precisely and without wear for years under all these conditions.

The infrared touch probe for mass production

Training and Resources

Infrared Probe m&h IRP40.02 Specifications

Accuracy	Triggering force	Temperature range	Power supply
max. 0,5 μm (2 Sigma) with 50 mm Stylus and 254 mm/min	X/Y = 0,8 N(₁), Z = 5,7 N(₁)	Operation: 5°- 55°C Storage: 5°- 70°C	2x battery (3,6 V / ½ A A)
Protection class	Signal transmission
IP68: EN60529	Infrared

Accuracy

Triggering force

Temperature range

Power supply

max. 0,5 μm (2 Sigma) with 50 mm Stylus and 254 mm/min

X/Y = 0,8 N(₁), Z = 5,7 N(₁)

Operation: 5°- 55°C

Storage: 5°- 70°C

2x battery (3,6 V / ½ A A)

Protection class

Signal transmission

IP68: EN60529

Infrared

Accuracy
max. 0,5 μm (2 Sigma) with 50 mm Stylus and 254 mm/min
Triggering force
X/Y = 0,8 N(₁), Z = 5,7 N(₁)
Temperature range
Operation: 5°- 55°C Storage: 5°- 70°C
Power supply
2x battery (3,6 V / ½ A A)
Protection class
IP68: EN60529
Signal transmission
Infrared

₁ with 50 mm stylus
