Measure to the tightest tolerances with minimized measurement uncertainty
Leitz PMM-C CMMs are highly precise, premium metrology devices that deliver fast, ultra-high accuracy results to fulfil the most demanding inspection requirements across a range of precision applications.
The latest generation of machines offers exceptional accuracy across the series, with specific configurations and capabilities to serve individual application needs.

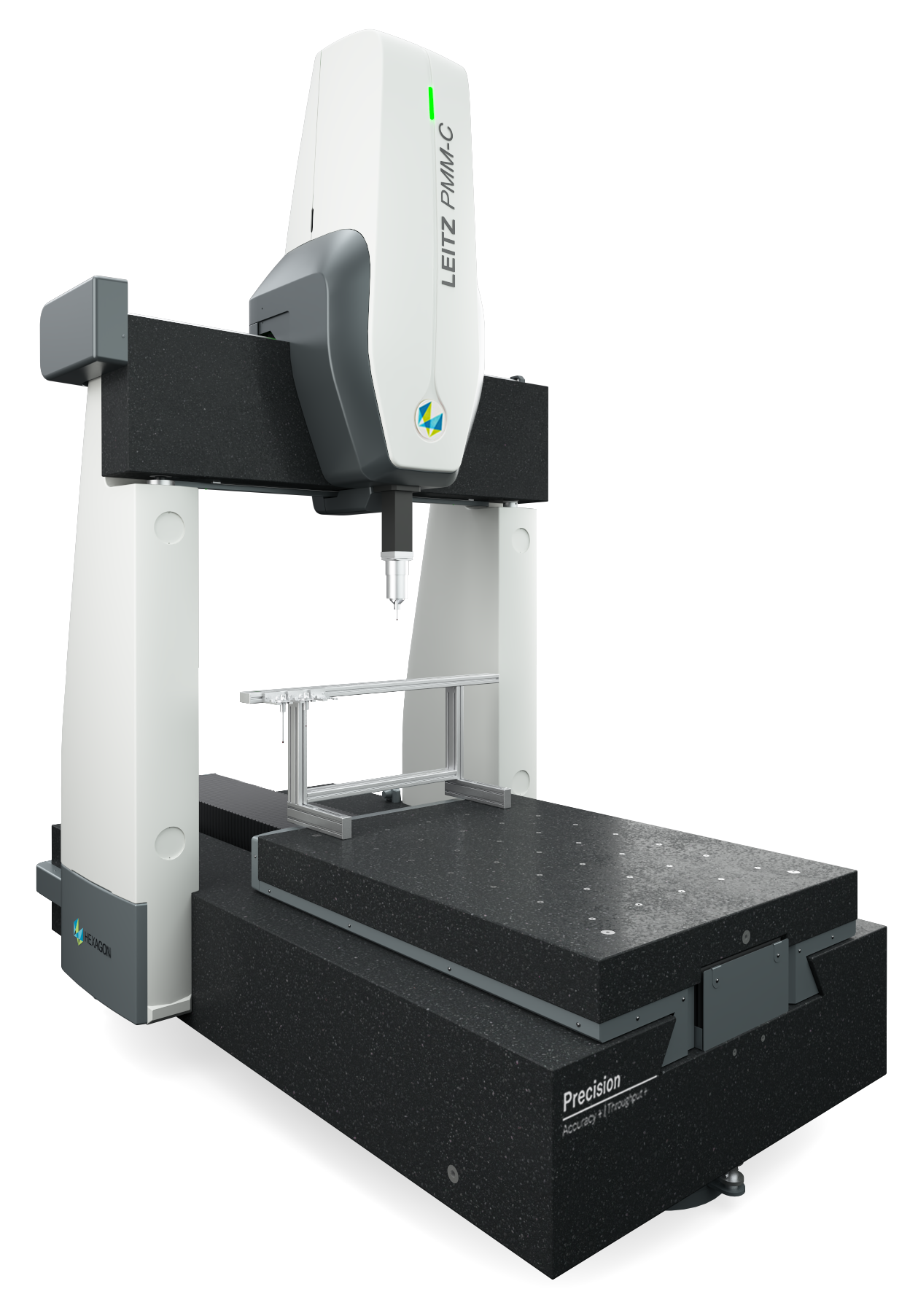

The Leitz PMM-C Precision model is configured to achieve the best possible measurement capability using ultra-high precision fixed probe head measurements. This model offers maximum repeatability and form measurement accuracy, even for long or multi-styli configurations in fast single-point probing or variable high-speed scanning procedures.
You might be interested in...
Training and Resources
Support
Connect and collaborate with your peers and experts
The Nexus Community provides you with excellent peer forums and the opportunity to learn from thousands of others in your industry. Currently, hundreds of peer forums waiting for you to explore into. Discover best practices and get the answers you need to succeed. Register for Nexus to get full access the Community forums.
Our team is ready to help
Our technical support teams are on hand to answer your questions. Contact us through our online form and we will get right back to you.
Measure to the tightest tolerances with minimized measurement uncertainty
Leitz PMM-C CMMs are highly precise, premium metrology devices that deliver fast, ultra-high accuracy results to fulfil the most demanding inspection requirements across a range of precision applications.
The latest generation of machines offers exceptional accuracy across the series, with specific configurations and capabilities to serve individual application needs.
The Leitz PMM-C Precision model is configured to achieve the best possible measurement capability using ultra-high precision fixed probe head measurements. This model offers maximum repeatability and form measurement accuracy, even for long or multi-styli configurations in fast single-point probing or variable high-speed scanning procedures.
Leitz PMM-C Precision Specifications
| Available Size (X, Y, Z)₁ | |
|---|---|
07.07.05 / 10.07.06 / 12.10.07 / 16.12.10 / 24.12.10 / 24.16.10 | |
| Accuracy₂ | |
From 0.28μm + L/1000, MPE(E0)₃) [19-21 °C] From 0.7μm + L/400, MPE(E0/E150)₄) [18-24 °C] | |
| Probe type compatibility | |
Scanning probe Non-contact probe (optical sensor) Contact probe (roughness sensor) Laser scanner probe | |
| Automation ready | |
YES | |
| Temperature specification | |
18-22 °C (standard temperature range) 19-21 °C (Accuracy + model) 15-30 °C (XT, option) |
₁ Sizes are expressed in dm. I.e., 07.07.05 means X = 700 mm; Y = 700 mm; Z = 500 mm
₂ According to ISO 10360-2 (2009)
₃ E0, E150 and R0 are valid for a length gauge with an uncertainty of calibration of ≤ 0.02 + 0.12 x L / 1000 and a CTE between 8 x 10-6/K and 13 x 10-6/K. The availability of suitable length standards for measuring lengths of more than 1000 mm must be clarified by mutual agreement between the user and the manufacturer.
₄ XT option only
