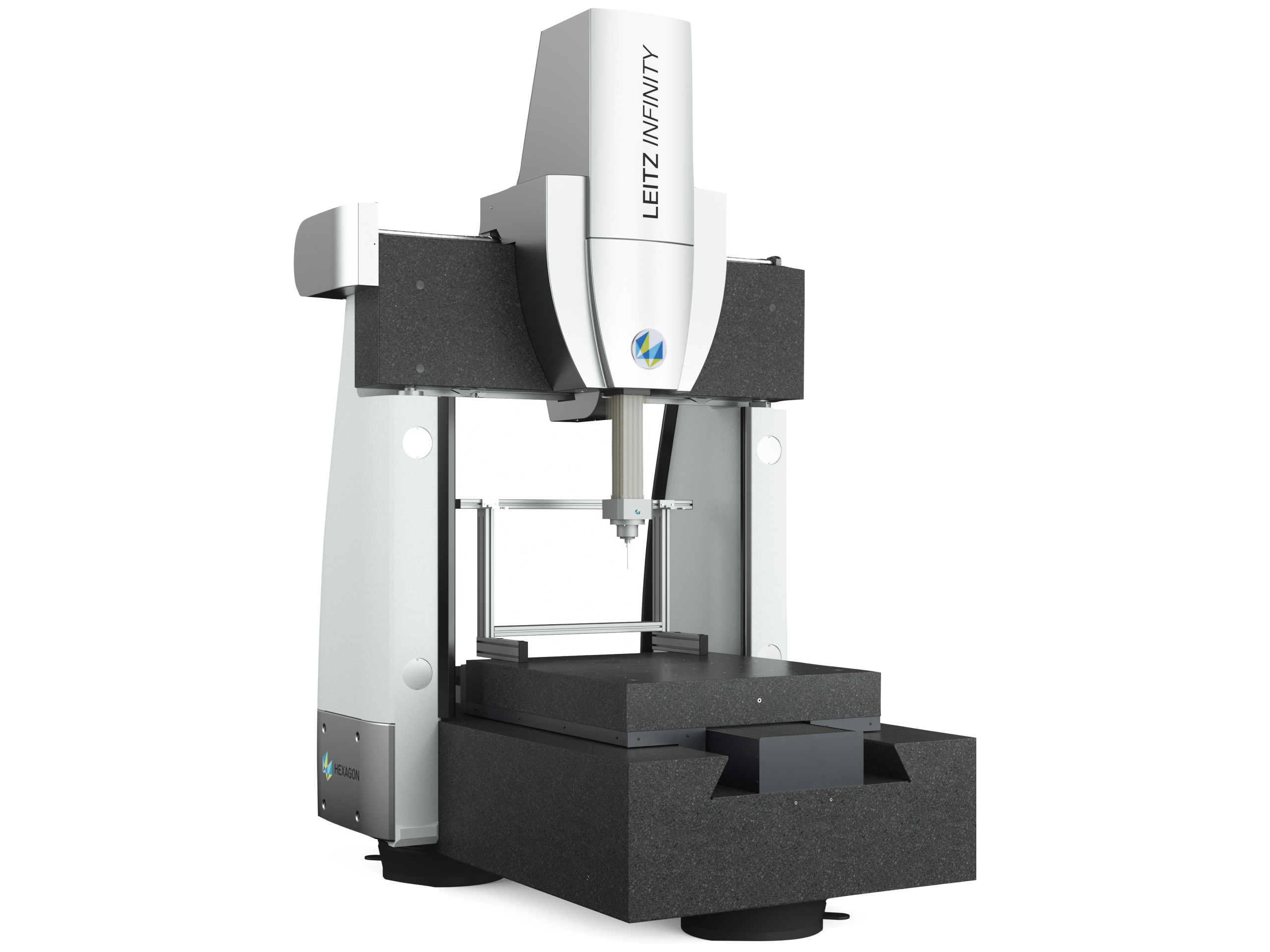

Leitz Infinity

Most accurate CMM within its class

Every detail of the Leitz Infinity is focused on the reliable and precise performance of ultra-high accuracy measurements.

The Leitz Infinity carries out any measurement task with the highest precision regardless of whether it’s on prismatic workpieces or parts with highly complex geometries such as cylindrical or globoid stepping gears.

Training and Resources

Leitz Infinity Specifications

Available Size (X, Y, Z)	Accuracy	Probe type compatibility	Automation ready
12.10.07	0.3μm + L/1000, MPE (E0)₁,₂) 0.5μm + L/1000, MPE (E150)₁,₂) 0.25μm repeatability range (R0)₁,₂)	Scanning probe Non-contact sensor (optical sensor) Contact sensor (roughness sensor)	YES
Temperature specification
19-21 °C

Available Size (X, Y, Z)

Accuracy

Probe type compatibility

Automation ready

12.10.07

0.3μm + L/1000, MPE (E0)₁,₂)

0.5μm + L/1000, MPE (E150)₁,₂)

0.25μm repeatability range (R0)₁,₂)

Scanning probe

Non-contact sensor (optical sensor)

Contact sensor (roughness sensor)

YES

Temperature specification

19-21 °C

Available Size (X, Y, Z)
12.10.07
Accuracy
0.3μm + L/1000, MPE (E0)₁,₂) 0.5μm + L/1000, MPE (E150)₁,₂) 0.25μm repeatability range (R0)₁,₂)
Probe type compatibility
Scanning probe Non-contact sensor (optical sensor) Contact sensor (roughness sensor)
Automation ready
YES
Temperature specification
19-21 °C

₁ E0, E150 and R0 are valid for a length gauge with an uncertainty of calibration of ≤ 0.02 + 0.12 x L / 1000 and a CTE between 8 x 10-6/K and 13 x 10-6/K. The availability of suitable length standards for measuring lengths of more than 1000 mm must be clarified by mutual agreement between the user and the manufacturer.

₂ E0, E150 and R0 are valid for Leitz Infinity styli ø 5 x 80 mm and ø 8 x 130 mm, without extension; anywhere in the measuring volume.

Support

Connect and collaborate with your peers and experts

The Nexus Community provides you with excellent peer forums and the opportunity to learn from thousands of others in your industry. Currently, hundreds of peer forums waiting for you to explore into. Discover best practices and get the answers you need to succeed. Register for Nexus to get full access the Community forums.

Our team is ready to help

Our technical support teams are on hand to answer your questions. Contact us through our online form and we will get right back to you.

LSP-S2

A flexible probe head capable of easily and swiftly achieving a full range of precise probing deflection measurements.

LSP-S4

The High-Speed-Scanning Probe Head LSP-S4 allows the measurement of features deep inside a work piece.

SENMATION

Intelligent sensor automation for coordinate measuring machines.

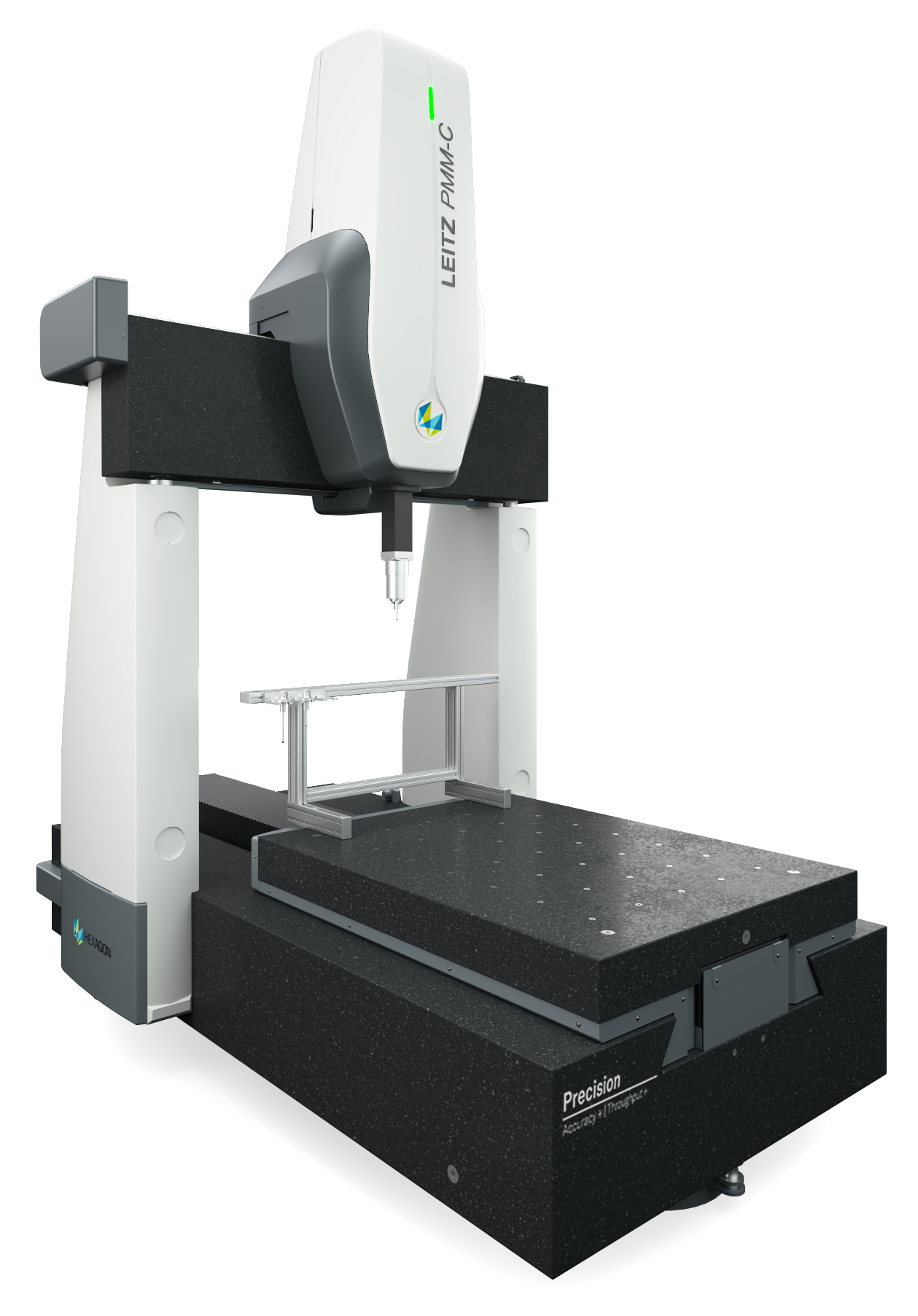

Leitz PMM-C Precision

Ultra-high accuracy fixed probe head measurements to the tightest part tolerances.

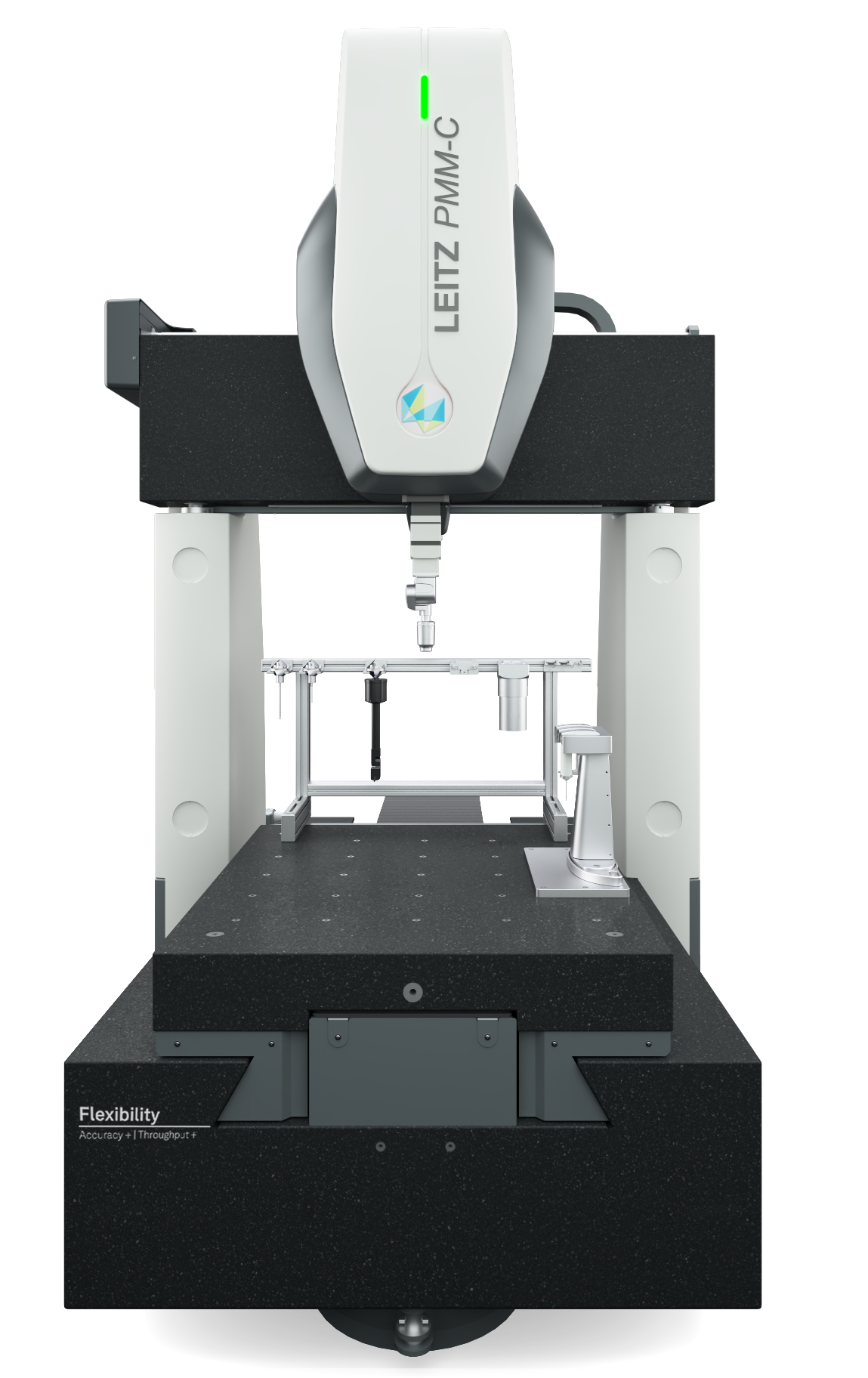

Leitz PMM-C Flexibility
