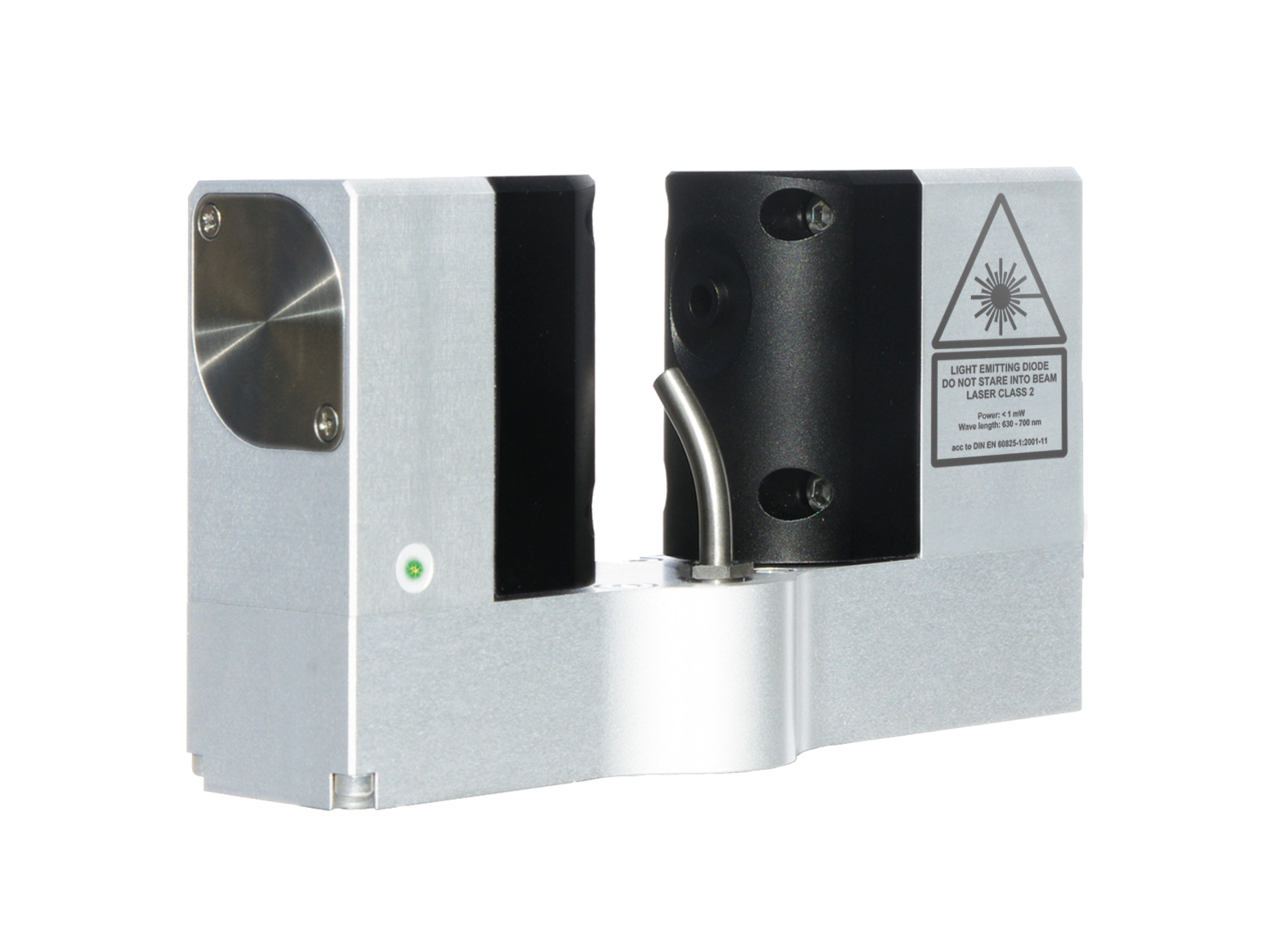

Laser Tool Setter LTS35.65
The standard laser tool setter for non-contact tool measurement, for reliable and quick machine setup, tool wear and tool breakage control.
The standard laser tool setter
A low-cost system for most measuring tasks on tools from Ø 0.030 mm, with significant advantages compared to previous common standard instruments. Compared to conventional systems, the electrical connection is significantly simpler.
An air curtain connection from the on-board pneumatics is all that is required in most cases. Only two spare M functions are required in the control, simplifying the electrical installation and reducing machine-related costs and effort.
Laser Tool Setter LTS35.65 Specifications
Accuracy
+/-0,1μm (2 Sigma)* (Laser)
Laser safety class
Class 2
Temperature range
Operation: 10° C – 50° C
Storage: 5° C – 70° C
Power supply
24 VDC / max. 100 mA
Protection class
IP68: EN60529 (connected, air-curtain on)
Signal transmission
Cable
