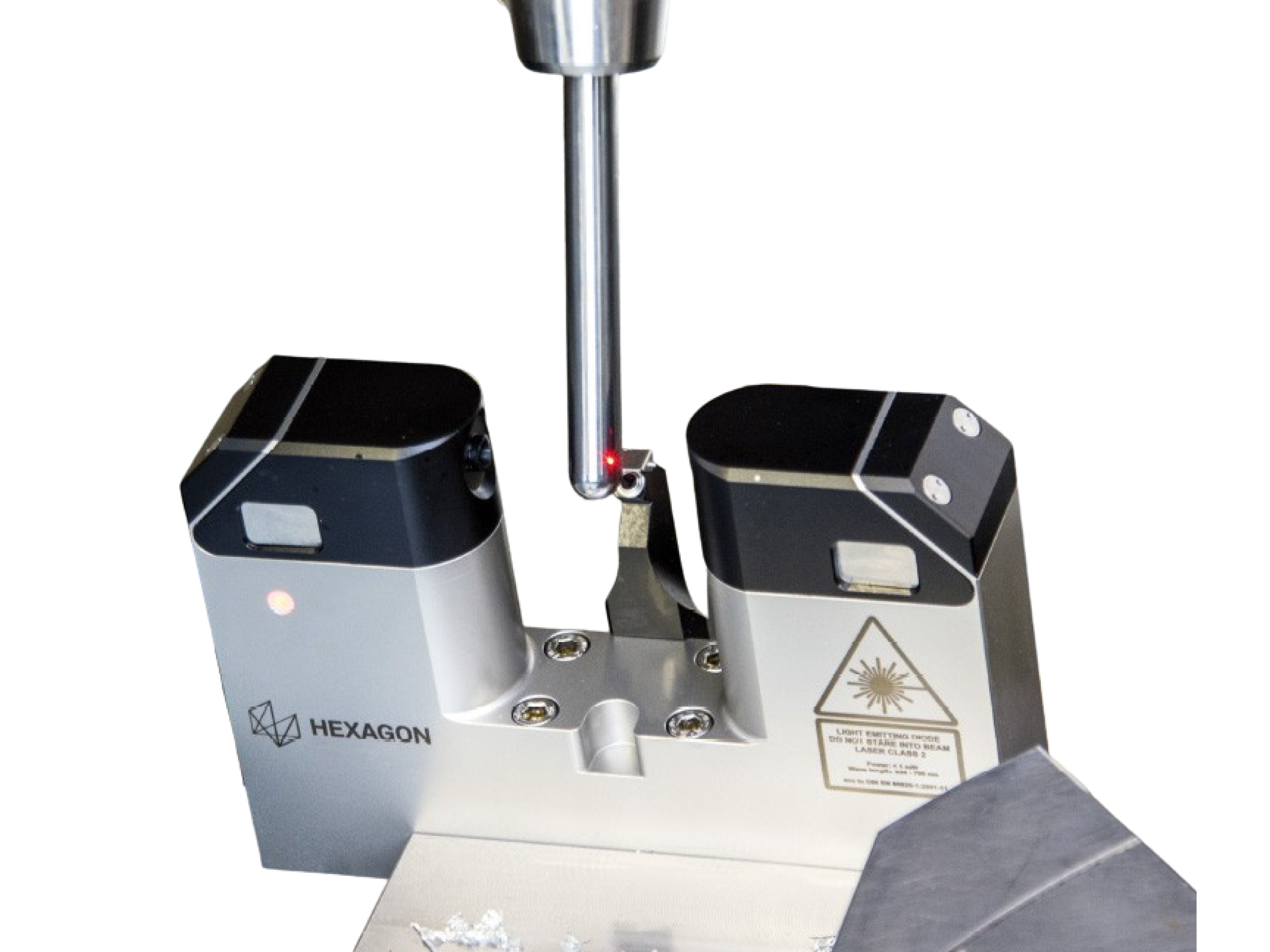

Laser Tool Setter LTS35.60
Premium laser tool setter for dynamic tool measurement in the high-end sector.
The premium laser tool setter
The non-contact precision measurement allows dynamic length and diameter checking on almost every tool from Ø 0.008 mm.
Design, concept, and construction, as well as the quality of the optics used, ensure straightforward alignment, calibration, reliable setup, and operation of the laser unit. The stainless steel housing, as well as the largely maintenance-free laser optics and the straightforward handling, make this system ideally suited to workshop use.
Laser Tool Setter LTS35.60 Specifications
Accuracy
Laser safety class
Temperature range
Power supply
0,1μm (2 Sigma)
Class 2
Operation: 10° C – 50° C
Storage: 5° C – 70° C
24 VDC / max. 500 mA
Protection class
Signal transmission
IP68: EN60529 (connected, air-curtain on)
Cable
