LAMBDA SP

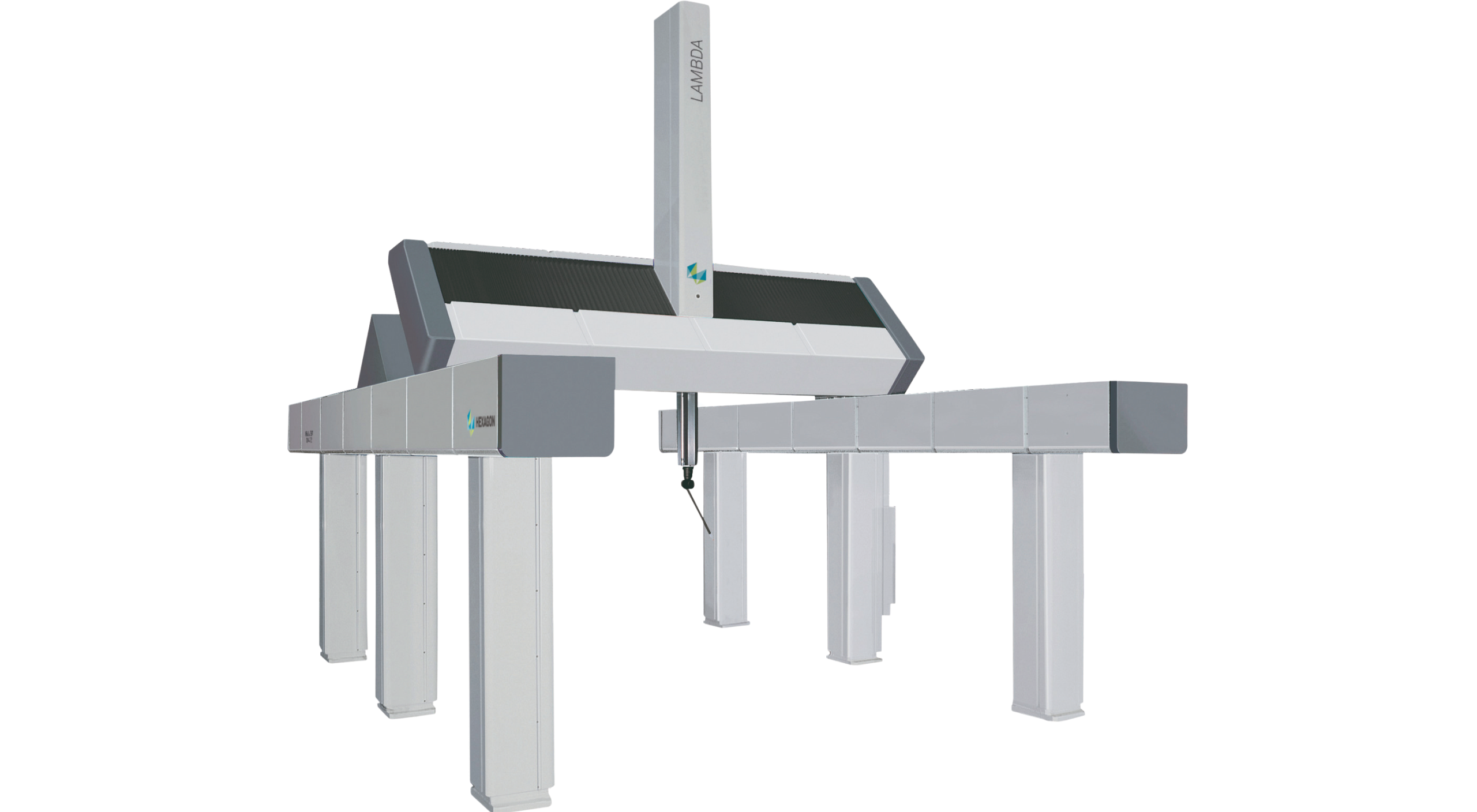

The LAMBDA SP is a line of very large measuring machines designed for operation in industrial environments.
© 2025 Hexagon AB and/or its subsidiaries
The LAMBDA SP is a line of very large measuring machines designed for operation in industrial environments.
© 2025 Hexagon AB and/or its subsidiaries
LAMBDA SP excels in the high-speed, high-accuracy inspection of huge components, such as marine engines, aircraft structures, or turbines that require open, modular, easily customizable structures with virtually unlimited measuring volumes.
The outstanding performance of this machine results from advanced technical solutions like the dual drive/encoder system on the main carriage, the Slant Bridge technology, and the ACTIV® structural temperature compensation. The optional HH-ACW-43MW continuous wrist further enhances inspection capability due to its long probe extensions and full access to the workpiece in any direction.
Accuracy₂
From 5.5μm + 6 L/1000<30, MPE(E0/E150)₁) [18-22 °C]
From 5.5μm + 8 L/1000<37, MPE(E0/E150)₁) [16-26 °C]
Probe type compatibility
Touch trigger probe
Scanning probe
Laser scanner probe
Automation ready
YES
Temperature specification
18 - 22 °C
16 - 26 °C
₁ E0, MPE/E150, MPE specifications are to be formally understood as E0,MPE* /E150, MPE* for the case where non-normal CTE material calibrated test lengths are used.
₂ According to ISO 10360-2 (2009)
