Infrared Tool Setter m&h IRT35.70

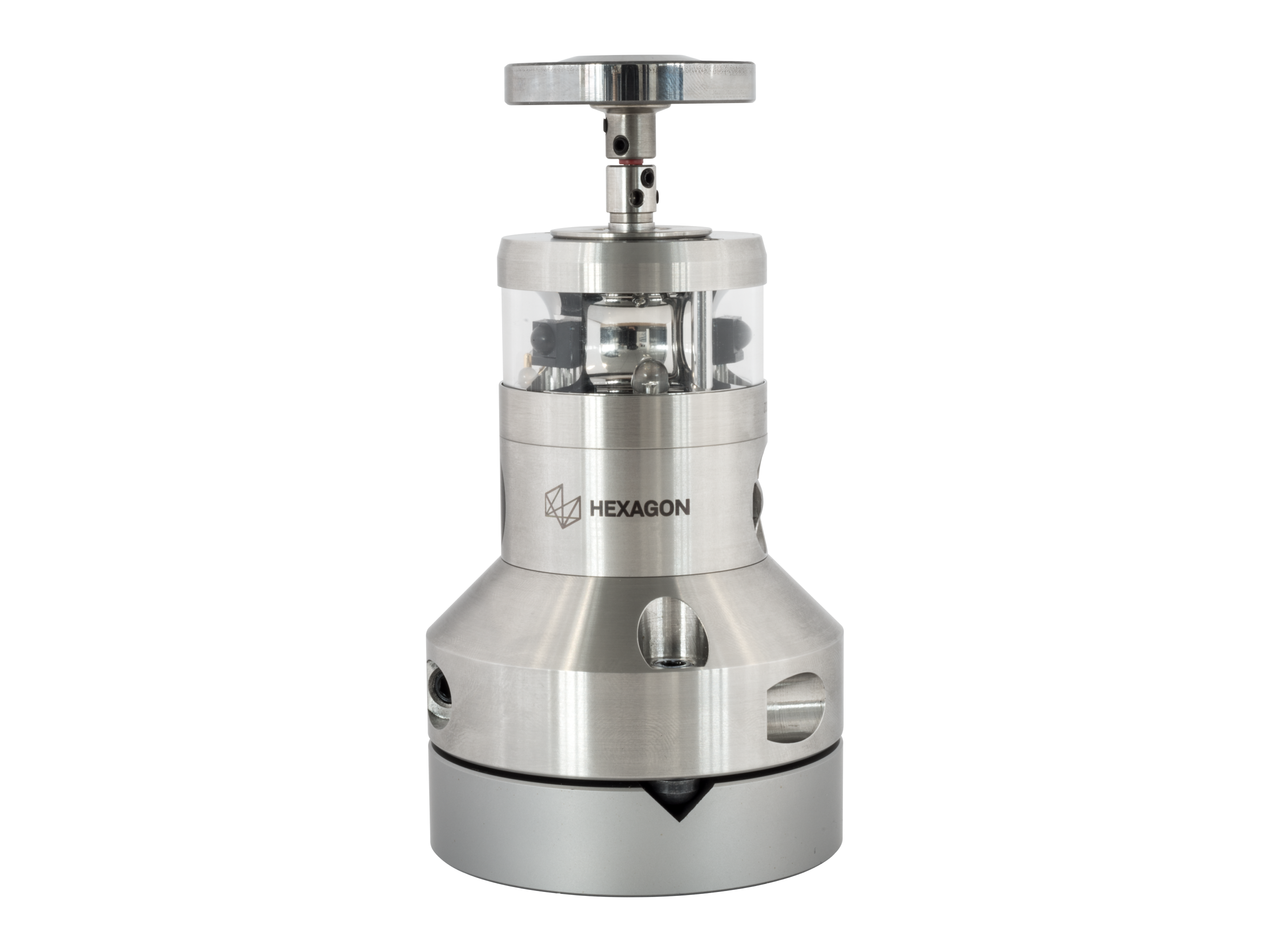

The Infrared Tool Setter IRT35.70 for milling machines and machining centers enables variable positioning of the tool setter.

Skip to

Support

Specifications

Simple, quick & repeatable manual positioning

Using a magnetic mount, the tool setter can be placed in a wide range of table positions. Our patent-pending system delivers highly accurate and repeatable re-positioning of the tool setter. With wireless operation and no permanently fixed hardware, the use of the IRT35.70 does not restrict or interfere with the machining area in any way. Now tool measurement and breakage detection can be done flexibly with a single instrument, including in machines operating with alternating machining stations.

Benefits:

HDR (High Data Rate) infrared transmission excludes interference of measuring from ambient light
Sturdy and durable protected

Infrared Tool Setter m&h IRT35.70 Specifications

Accuracy

1μm (max. 2 Sigma) and 100 mm/min

Triggering force

X/Y = 2 N, Z = 8 N

Temperature range

Operation: 10° – 50°C

Storage: 5° – 70°C

Power supply

1x battery (3,6 V ½A A)

Protection class

IP68: EN60529

Signal transmission

Infrared

Infrared Receiver m&h IRR91.42

IRR91.42 reliably receives measurement and temperature data. It can communicate with m&h infrared probes and infrared tool setters.

Infrared Receiver m&h IRR91.50

Communicate with two probing systems simultaneously on the same machine while eliminating ambient light interference.

HxGN NC Measure (Software)

Intuitive, versatile, and user-friendly, simplify inspection processes for a range of parts on the machine tool.

m&H NC Gage (Software)

The simple use, and innovative “Teach-in” process allow a user to create gauging programs without previous programming knowledge.

3D Form Inspect Jobmaster (Software)

3D Form Inspect increases your productivity, reduces production costs and guarantees high flexibility – together this is Connected Probing.

3D Form Inspect (Software)

This software enables quick measuring and logging of important geometries and shapes on all sides and axes directly on the machine tool.
