Providing highly precise production results

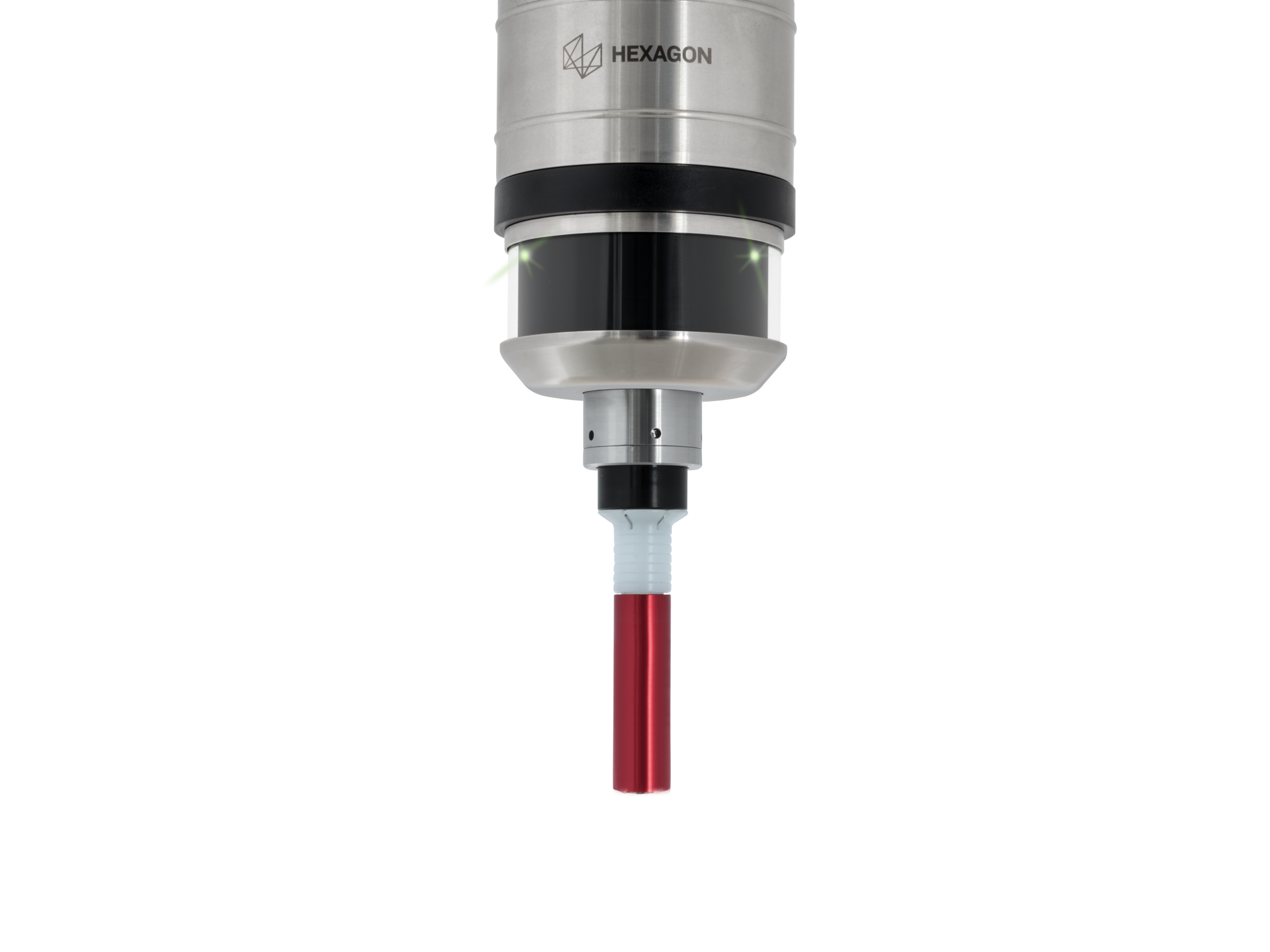

The m&h IRP25.50-TP temperature probe helps ensure that workpieces are machined only when the temperature is correct. Ideal for cost-intensive workpieces, the m&h IRP25.50-TP uses patented technology to automatically measure workpiece temperature within seconds, both before and during machining. This enables greater control of production processes and adaptation of machining parameters during production.
The m&h IRP25.50 is characterized by its modular structure, enabling the use of various measuring units, different extensions, and cross-probes. The temperature unit can be quickly exchanged with a regular machine tool probing unit, allowing users to optimally adjust the probe for future requirements and machine tool applications at any time.
You might be interested in...
Training and Resources
Support
Connect and collaborate with your peers and experts
The Nexus Community provides you with excellent peer forums and the opportunity to learn from thousands of others in your industry. Currently, hundreds of peer forums waiting for you to explore into. Discover best practices and get the answers you need to succeed. Register for Nexus to get full access the Community forums.
Our team is ready to help
Our technical support teams are on hand to answer your questions. Contact us through our online form and we will get right back to you.
Providing highly precise production results
The m&h IRP25.50-TP temperature probe helps ensure that workpieces are machined only when the temperature is correct. Ideal for cost-intensive workpieces, the m&h IRP25.50-TP uses patented technology to automatically measure workpiece temperature within seconds, both before and during machining. This enables greater control of production processes and adaptation of machining parameters during production.
The m&h IRP25.50 is characterized by its modular structure, enabling the use of various measuring units, different extensions, and cross-probes. The temperature unit can be quickly exchanged with a regular machine tool probing unit, allowing users to optimally adjust the probe for future requirements and machine tool applications at any time.
Infrared Temperature Probe m&h IRP25.50-TP Specifications
| Accuracy | |
|---|---|
±1°C₁ | |
| Measuring range and resolution | |
13 N (Trigger force with 50mm sensor) | |
| Temperature range | |
Storage: 5 °C – 70 °C, Operation: 10 °C – 50 °C | |
| Power supply | |
1 x 9 V battery block, 6LR61 Lithium: 1200 mAh, Alkaline: 550 mAh | |
| Protection class | |
IP68: EN60529 | |
| Signal transmission | |
Infrared |
₁ The measuring accuracy depends on the condition (surface finish, surface parallelism) and calibration of the workpiece.
