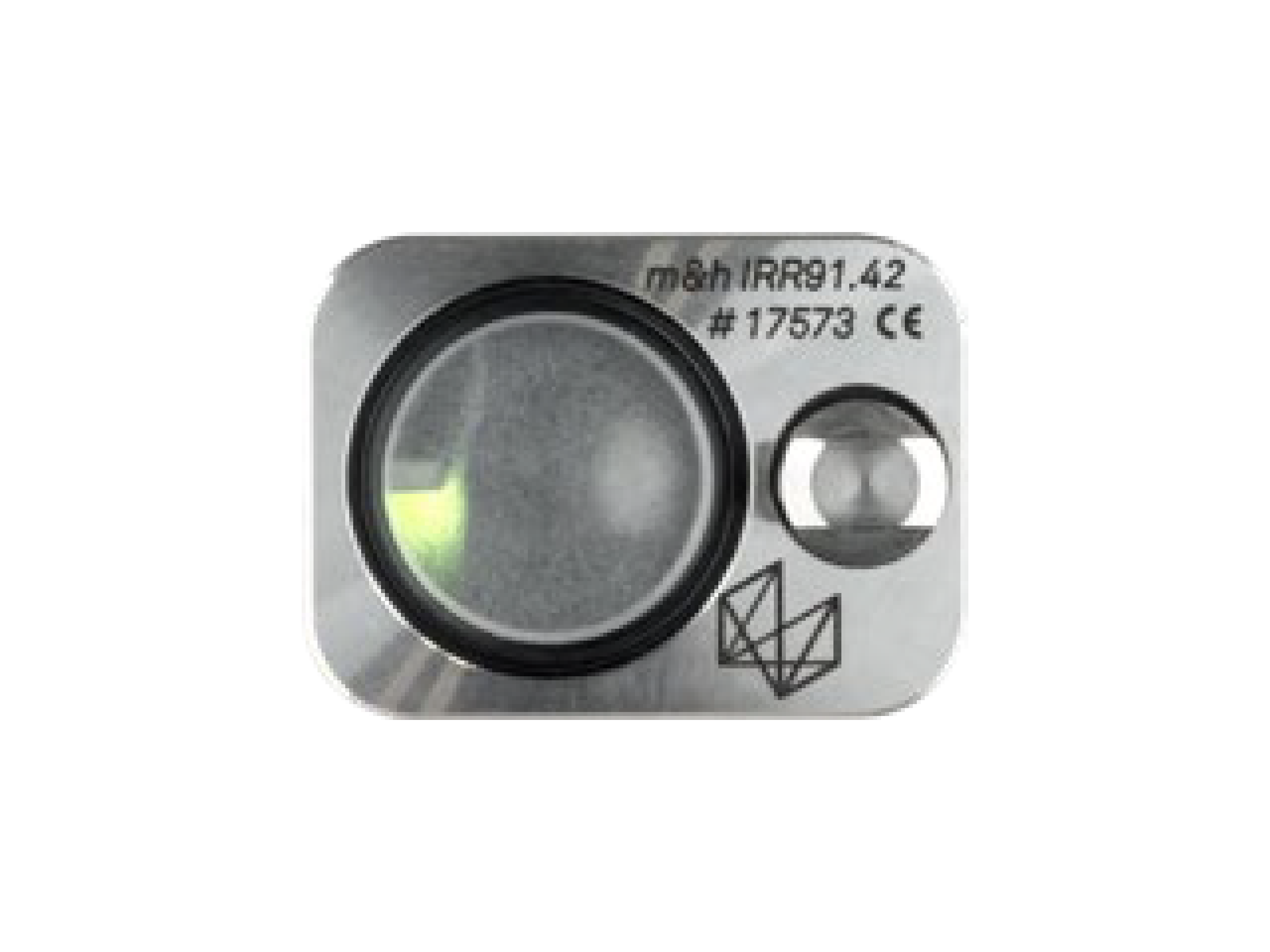

Infrared Receiver m&h IRR91.42

Compact infrared receiver with HDR+ technology

The receiver can communicate with three different probing systems on the same machine. All necessary components are integrated in the compact stainless steel housing.

Application:

Turning/milling centers, vertical turning machines, milling machines, and machining centers
Direct connection to the machine control without requiring an additional electronic module
Use on multi-axis machines with swiveling head possible

Benefits:

HDR (High Data Rate) and HDR+ infrared transmission exclude interference of measuring from ambient light
Robust and absolutely immersion-tight – in acc. with IP68
Processes measurement and temperature data
