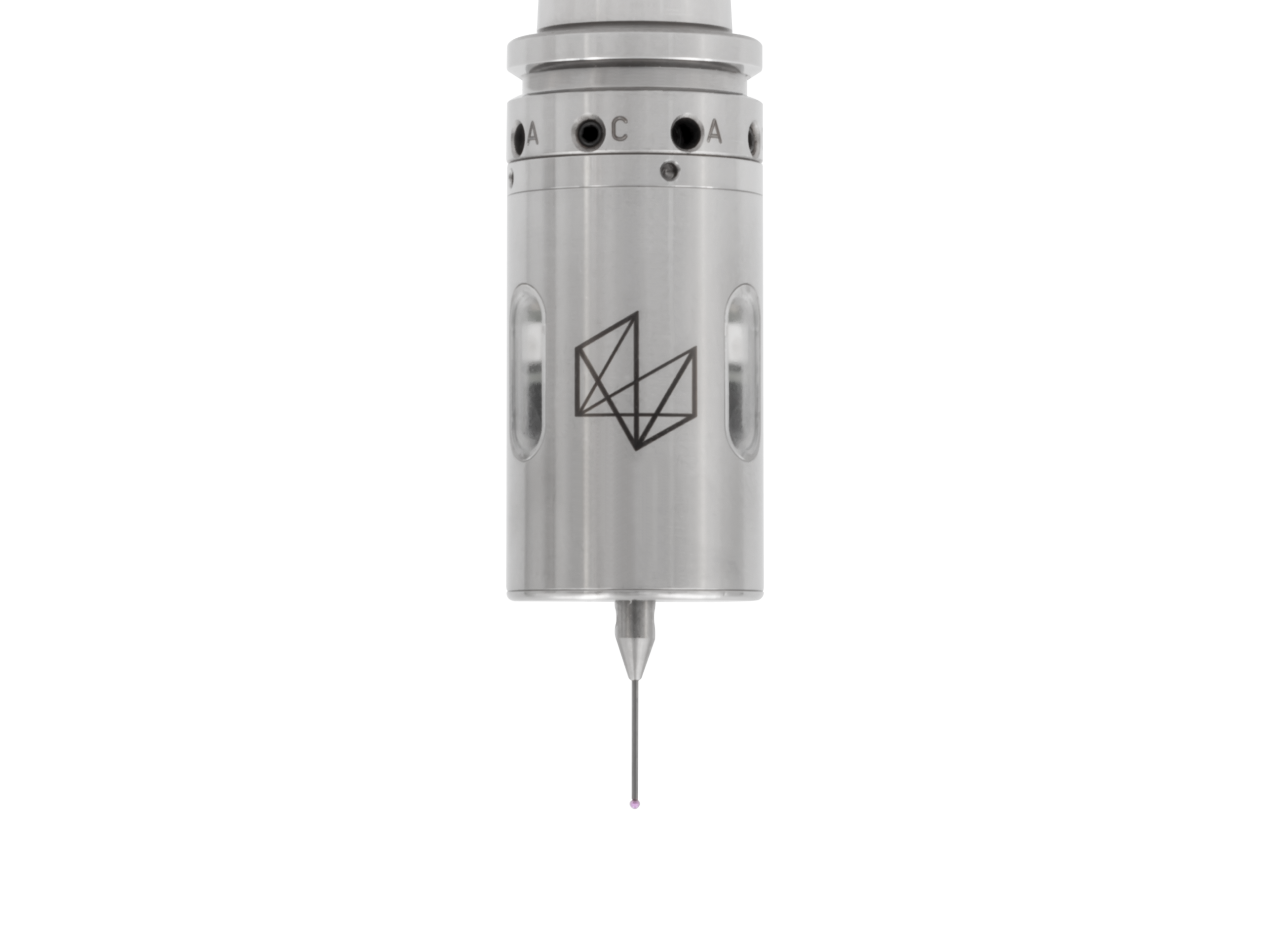

Infrared Probe m&h IRP40.50

The smallest infrared probe in the world

The ultrasmall infrared probe IRP40.50, with a diameter of only 25 millimeters and a length of 42.4 millimeters, can find a place in any small machining center and leaves sufficient space so that measurement is also possible on the Z axis without danger of collision. The IRP40.50 is highly precise and is also suitable for small and delicate workpieces with a low probing force of 0.7 N (X/Y). It goes without saying that the m&h IRP40.50 also has proven HDR infrared transmission.

Benefits:

The smallest infrared probe in the world
Reliable bidirectional HDR infrared transmission
Energy-efficient and economical

Training and Resources

Infrared Probe m&h IRP40.50 Specifications

Accuracy	Triggering force	Temperature range	Power supply
1μm (max. 2 Sigma) and 100 mm/min	X/Y = 1,3 N, Z = 3 N	Operation: 10°- 50°C Storage: 5°- 70°C	3 x batteries 3 V, Type CR2032
Protection class	Signal transmission
IP68: EN60529	Infrared

Accuracy

Triggering force

Temperature range

Power supply

1μm (max. 2 Sigma) and 100 mm/min

X/Y = 1,3 N, Z = 3 N

Operation: 10°- 50°C

Storage: 5°- 70°C

3 x batteries 3 V, Type CR2032

Protection class

Signal transmission

IP68: EN60529

Infrared

Accuracy
1μm (max. 2 Sigma) and 100 mm/min
Triggering force
X/Y = 1,3 N, Z = 3 N
Temperature range
Operation: 10°- 50°C Storage: 5°- 70°C
Power supply
3 x batteries 3 V, Type CR2032
Protection class
IP68: EN60529
Signal transmission
Infrared
