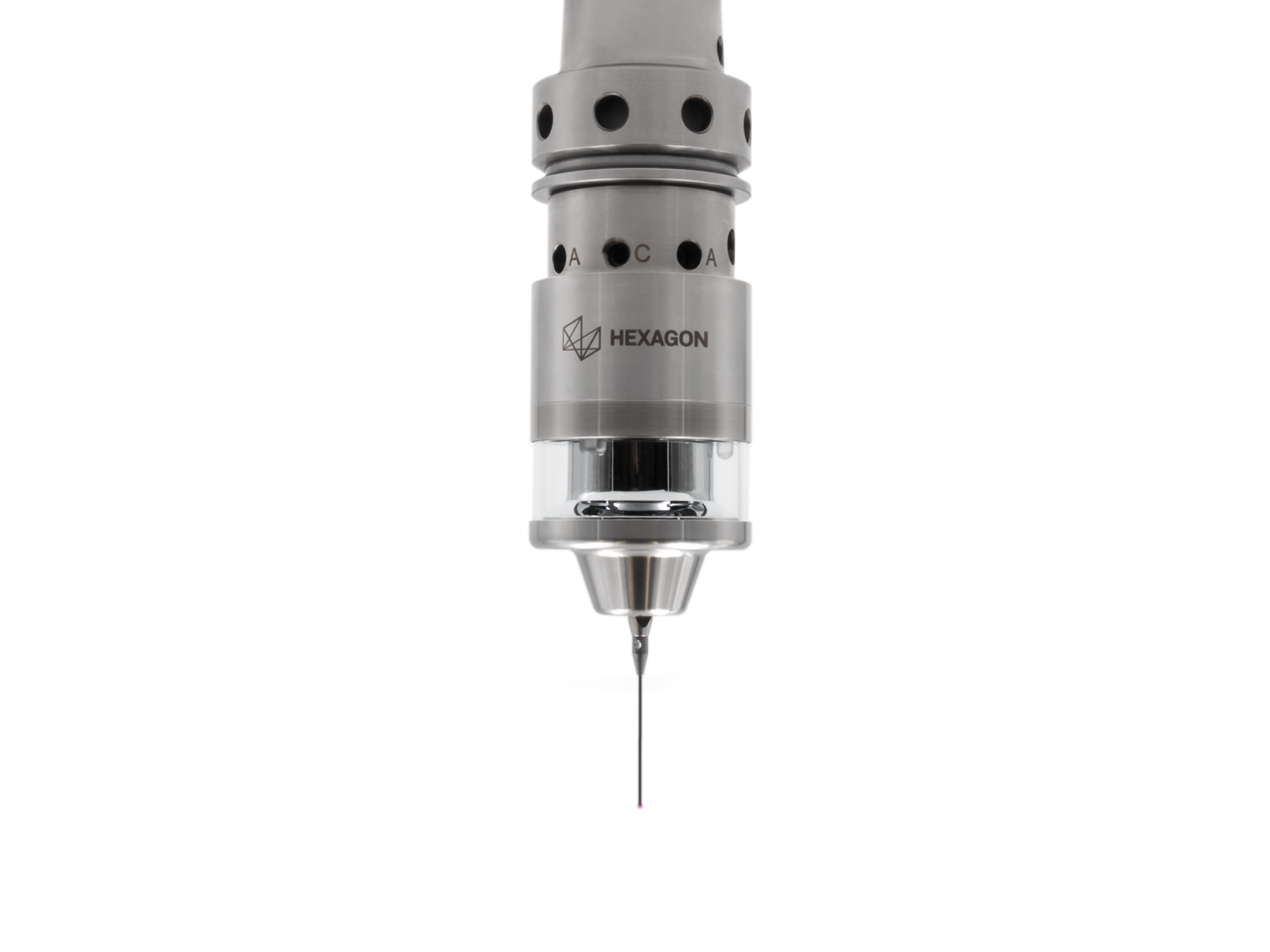

Infrared Probe m&h IRP40.42

Fast, repeatable measurements on coordinate measuring devices

The infrared touch probe IRP40.42 has been specially designed to measure sensitive materials and thin, fragile workpiece geometries in harsh machine tool environments. The IRP40.42 combines the strengths of the IRP40.02 touch probe with a highly versatile touch trigger probe developed by Hexagon for taking fast, repeatable measurements on coordinate measuring devices.

The trigger forces of the IRP40.42 remain consistently low even at higher probing speeds and greater stylus overtravel, protecting your sensitive workpieces from damage. The IRP40.42 has a repeatability of 2 Sigma 1 μm and can be equipped with styli and stylus balls as small as 0.2 mm.

Training and Resources

Infrared Probe m&h IRP40.42 Specifications

Accuracy	Triggering force	Temperature range	Power supply
Max. 1 μm (2 Sigma) with 20 mm stylus and 254 mm/min probing feed rate	X/Y = 0,06 ±0,02 N; Z = 0,8 N ±0,1N	Operation: 10°- 50°C Storage: 5°- 70°C	2x battery (3,6 V / ½ A A)
Protection class	Signal transmission
IP68: EN60529	Infrared

Accuracy

Triggering force

Temperature range

Power supply

Max. 1 μm (2 Sigma) with 20 mm stylus and 254 mm/min probing feed rate

X/Y = 0,06 ±0,02 N; Z = 0,8 N ±0,1N

Operation: 10°- 50°C

Storage: 5°- 70°C

2x battery (3,6 V / ½ A A)

Protection class

Signal transmission

IP68: EN60529

Infrared

Accuracy
Max. 1 μm (2 Sigma) with 20 mm stylus and 254 mm/min probing feed rate
Triggering force
X/Y = 0,06 ±0,02 N; Z = 0,8 N ±0,1N
Temperature range
Operation: 10°- 50°C Storage: 5°- 70°C
Power supply
2x battery (3,6 V / ½ A A)
Protection class
IP68: EN60529
Signal transmission
Infrared
