HP-TMe Touch Trigger probe

Modular touch trigger probe for a wide range of measurement applications

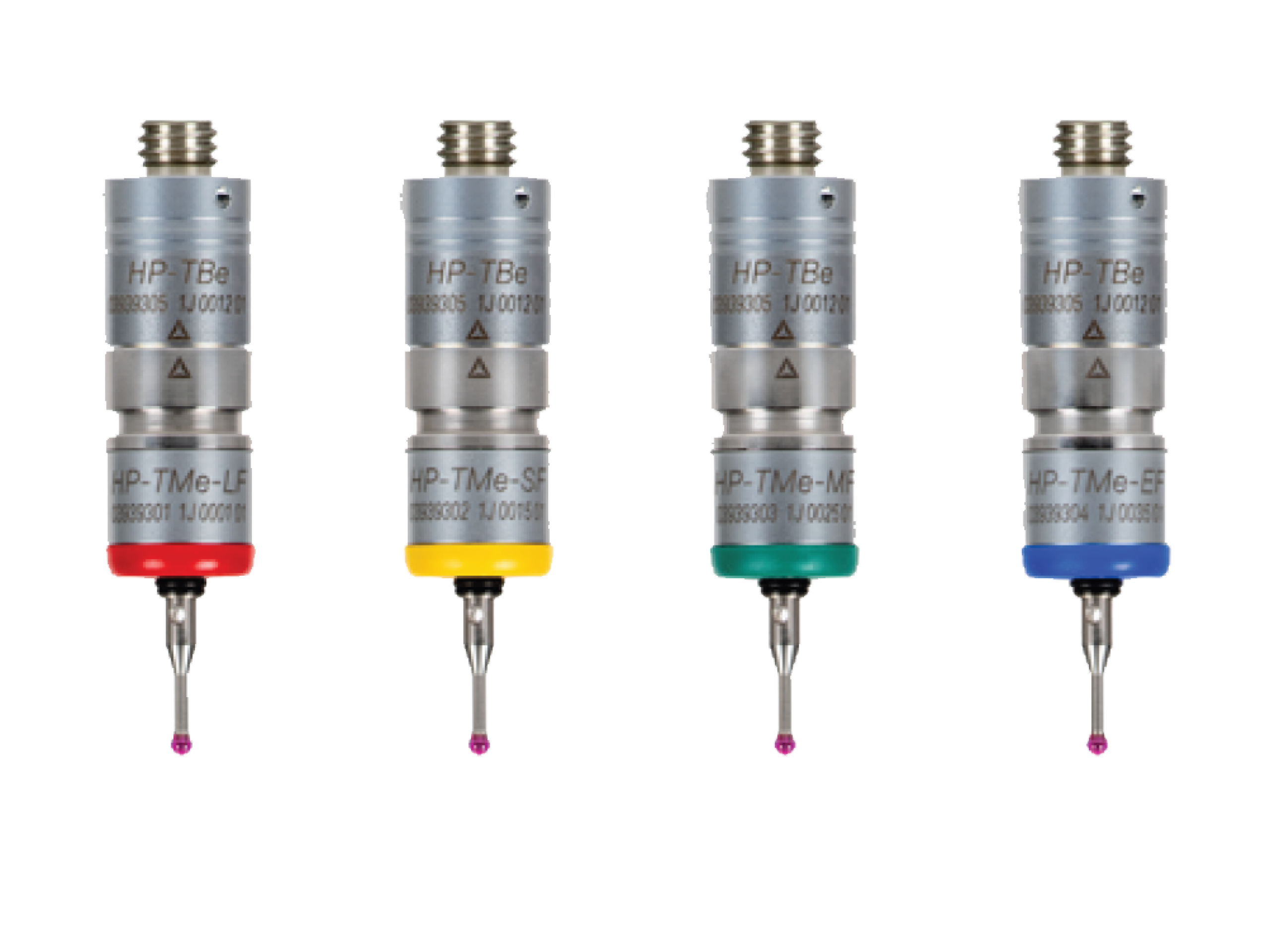

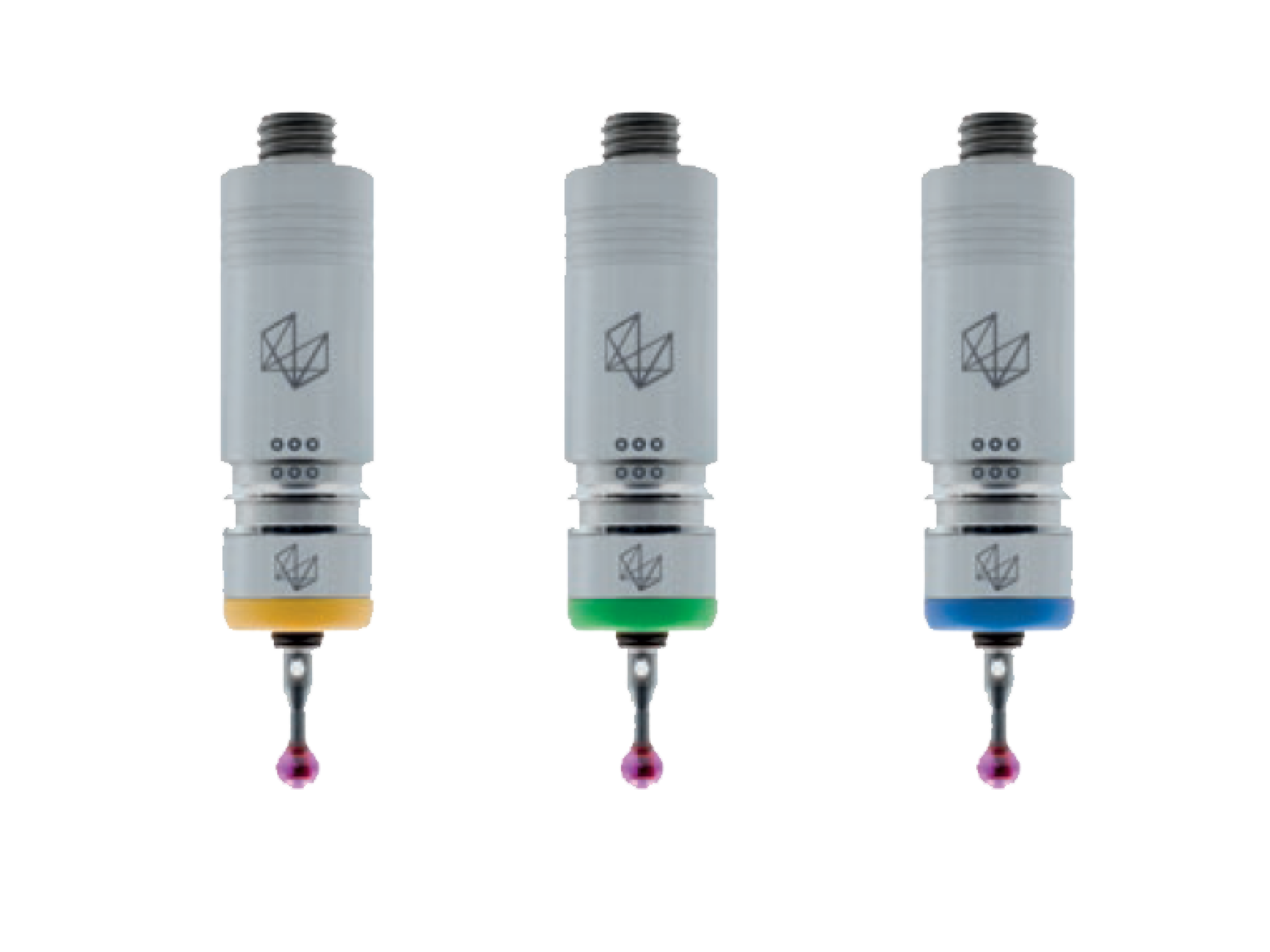

The HP-TMe touch trigger probe reliably records individual measurement points and offers excellent measurement accuracy and repeatability. It consists of a probe body and detachable probing modules, which can be exchanged during the measurement routine.

Modular touch trigger probe for a wide range of measurement applications

HH-A / HH-AS Automatic 7.5° Probe Heads

The universal system component for use with any multi-coordinate measuring machine, whatever the model or manufacturer.

HH-A / HH-AS Automatic 5° Probe Heads

The universal system component for use with any multicoordinate measuring machine, whatever the model or manufacturer.

HH-A-H2.5 / HH-AS-H2.5 Automatic HD Probe Heads

The HH-A-2.5 range of probe heads feature a number of innovations, including a fully embedded controller, and capacitive crash protection.

HH-A-T2.5 / HH-AS-T2.5 Automatic 2.5° Probe Heads

The HH-A-T2.5 is capable of indexing in 2.5° increments and can achieve 12,240 unique positions.

HP-THDe touch trigger probe

Highly versatile touch trigger probe for outstanding measuring performance and functionality.

HP-T-RP Probe

The HP-T-RP is a rugged and accurate touch trigger probe that can be mounted on many coordinate measuring systems.

Training and Resources

HP-TMe Touch Trigger probe Specifications

Mounting	Probing direction	Stylus mounting	Max. stylus length
M8 with active 1 wire connection	5 ways +/-X, +/-Y and +Z	M2 thread	60 mm
Trigger force	Pre-travel variance	Repeatability (1D, 2sigma)
From 0.07 N (YZ plane) From 0.55 N (Z plane)	+/- 0.6 μm₁	From 0.35 μm

Mounting

Probing direction

Stylus mounting

Max. stylus length

M8 with active 1 wire connection

5 ways +/-X, +/-Y and +Z

M2 thread

60 mm

Trigger force

Pre-travel variance

Repeatability (1D, 2sigma)

From 0.07 N (YZ plane)

From 0.55 N (Z plane)

+/- 0.6 μm₁

From 0.35 μm

Mounting
M8 with active 1 wire connection
Probing direction
5 ways +/-X, +/-Y and +Z
Stylus mounting
M2 thread
Max. stylus length
60 mm
Trigger force
From 0.07 N (YZ plane) From 0.55 N (Z plane)
Pre-travel variance
+/- 0.6 μm₁
Repeatability (1D, 2sigma)
From 0.35 μm

₁ Test conditions: Straight stylus, Touch speed 5 mm/sec.
