HP-THDe touch trigger probe

Highly versatile touch trigger probe for outstanding measuring performance and functionality

The HP-THDe touch trigger probe has been designed to take advantage of cutting-edge technology and deliver highly accurate touch trigger probing with styli builds of up to 100 mm. It offers high-precision repeatability and low 3D form error thanks to a highly innovative opto-mechanical design capable of detecting nanometric movements in the X, Y and Z directions.

Highly versatile touch trigger probe for outstanding measuring performance and functionality

Training and Resources

HP-THDe touch trigger probe Specifications

Mounting	Probing direction	Stylus mounting	Max. stylus length
M8 with active 1 wire connection	6 ways +/-X, +/-Y and +/-Z	M2 thread	75 mm (100 mm carbon fibre)
Trigger force	Pre-travel variance	Repeatability (1D, 2sigma)
From 0.02 N (XY plane) From 0.8 N (Z plane)	+/- 0.4 μm₁	From 0.3 μm

Mounting

Probing direction

Stylus mounting

Max. stylus length

M8 with active 1 wire connection

6 ways +/-X, +/-Y and +/-Z

M2 thread

75 mm (100 mm carbon fibre)

Trigger force

Pre-travel variance

Repeatability (1D, 2sigma)

From 0.02 N (XY plane)

From 0.8 N (Z plane)

+/- 0.4 μm₁

From 0.3 μm

Mounting
M8 with active 1 wire connection
Probing direction
6 ways +/-X, +/-Y and +/-Z
Stylus mounting
M2 thread
Max. stylus length
75 mm (100 mm carbon fibre)
Trigger force
From 0.02 N (XY plane) From 0.8 N (Z plane)
Pre-travel variance
+/- 0.4 μm₁
Repeatability (1D, 2sigma)
From 0.3 μm

₁ Test conditions: Straight stylus, Touch speed 5 mm/sec.

Support

Connect and collaborate with your peers and experts

The Nexus Community provides you with excellent peer forums and the opportunity to learn from thousands of others in your industry. Currently, hundreds of peer forums waiting for you to explore into. Discover best practices and get the answers you need to succeed. Register for Nexus to get full access the Community forums.

Our team is ready to help

Our technical support teams are on hand to answer your questions. Contact us through our online form and we will get right back to you.

HH-A / HH-AS Automatic 7.5° Probe Heads

The universal system component for use with any multi-coordinate measuring machine, whatever the model or manufacturer.

HH-A / HH-AS Automatic 5° Probe Heads

The universal system component for use with any multicoordinate measuring machine, whatever the model or manufacturer.

HH-A-H2.5 / HH-AS-H2.5 Automatic HD Probe Heads

The HH-A-2.5 range of probe heads feature a number of innovations, including a fully embedded controller, and capacitive crash protection.

HH-A-T2.5 / HH-AS-T2.5 Automatic 2.5° Probe Heads

The HH-A-T2.5 is capable of indexing in 2.5° increments and can achieve 12,240 unique positions.

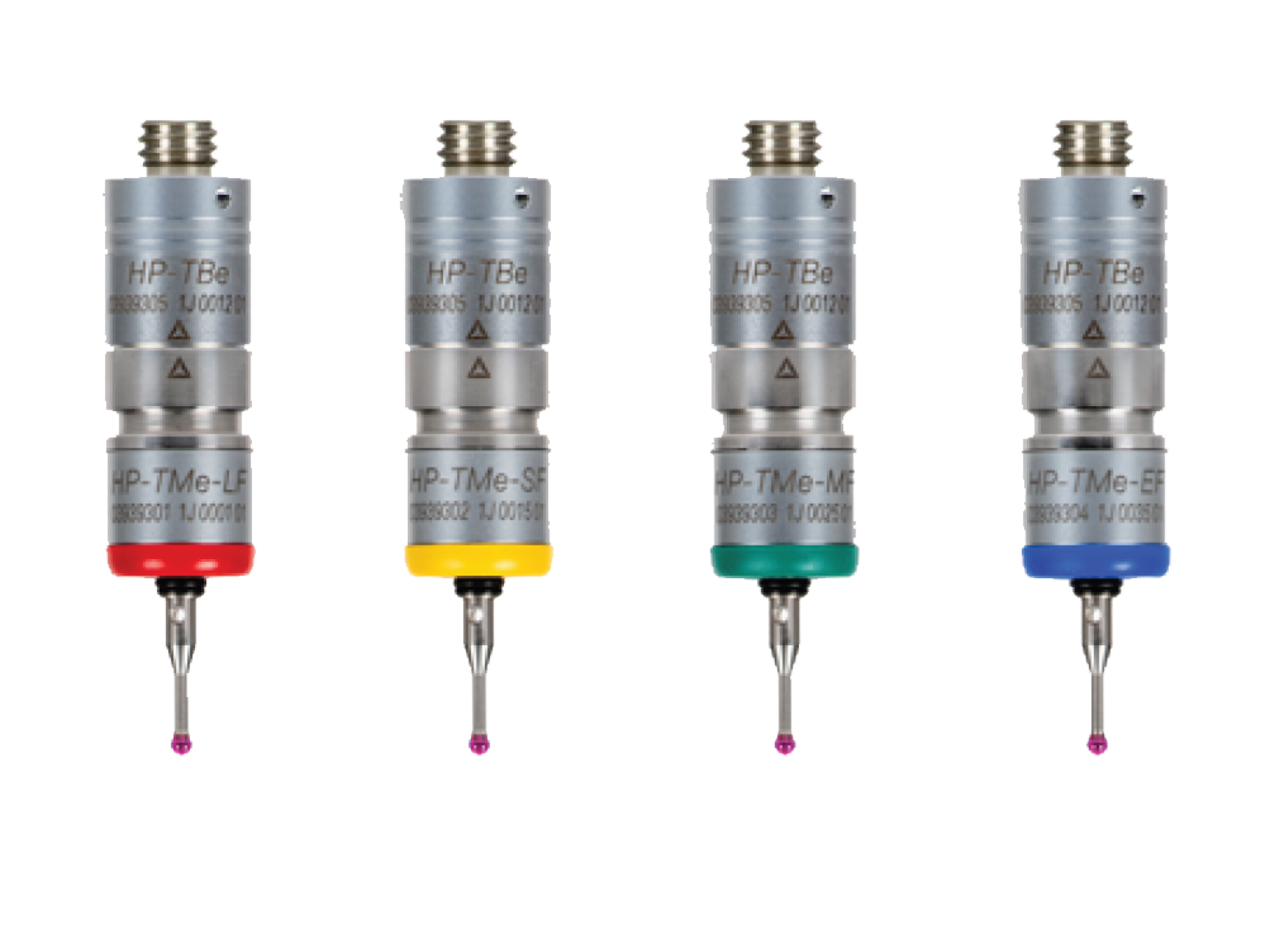

HP-TMe Touch Trigger probe
