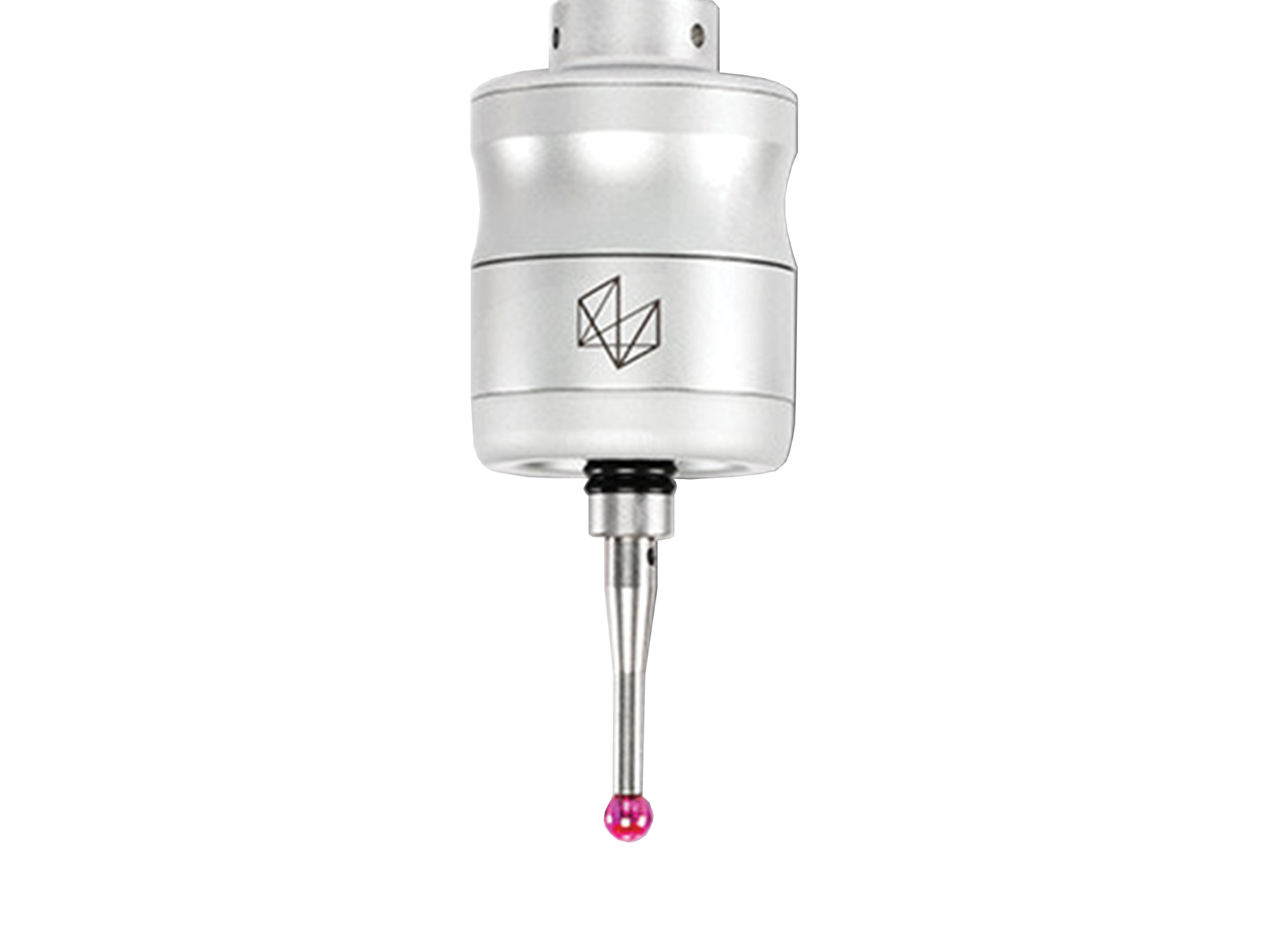

HP-T-RP Probe

The rugged touch trigger probe for harsh environments

The HP-T-RP is a rugged and accurate touch trigger probe that can be mounted on many coordinate measuring systems such as bridge, gantry, horizontal arms, manual or CNC, portable devices, and even robots.

This sensor can operate in any industrial environment, even in the most hostile. Optimized accuracy is ensured through an adjustable trigger force according to the chosen stylus configuration.

The rugged touch trigger probe for harsh environments

This sensor can operate in any industrial environment, even in the most hostile. Optimized accuracy is ensured through an adjustable trigger force according to the chosen stylus configuration.

HH-A-H2.5 / HH-AS-H2.5 Automatic HD Probe Heads

The HH-A-2.5 range of probe heads feature a number of innovations, including a fully embedded controller, and capacitive crash protection.

HH-A-T2.5 / HH-AS-T2.5 Automatic 2.5° Probe Heads

The HH-A-T2.5 is capable of indexing in 2.5° increments and can achieve 12,240 unique positions.

Absolute Arm 7-Axis

Tactile probing and non-contact scanning to deliver effortlessly-accurate measurements with ease.

Absolute Arm 6-Axis

Conduct one-of-a-kind, high-accuracy probing with useful multifunctionality and productivity improvements.

Absolute Arm Compact

The Absolute Arm Compact is the ultimate solution for ultra-high-accuracy touch probe measurement of small-to-medium sized parts.

HP-THDe touch trigger probe

Highly versatile touch trigger probe for outstanding measuring performance and functionality.

HP-TMe Touch Trigger probe

Conduct reliable probing regardless of various measurement requirements with this flexible touch-trigger probe.

Training and Resources

HP-T-RP Probe Specifications

Mounting	Probing direction	Stylus mounting	Max. stylus length
M8	5 ways +/-X, +/-Y, +Z	M3 thread	100 mm
Trigger force	Pre-travel variance	Repeatability (1D, 2sigma)
0.11 N to 0.30 N	Not available	0.35 μm

Mounting
M8
Probing direction
5 ways +/-X, +/-Y, +Z
Stylus mounting
M3 thread
Max. stylus length
100 mm
Trigger force
0.11 N to 0.30 N
Pre-travel variance
Not available
Repeatability (1D, 2sigma)
0.35 μm
