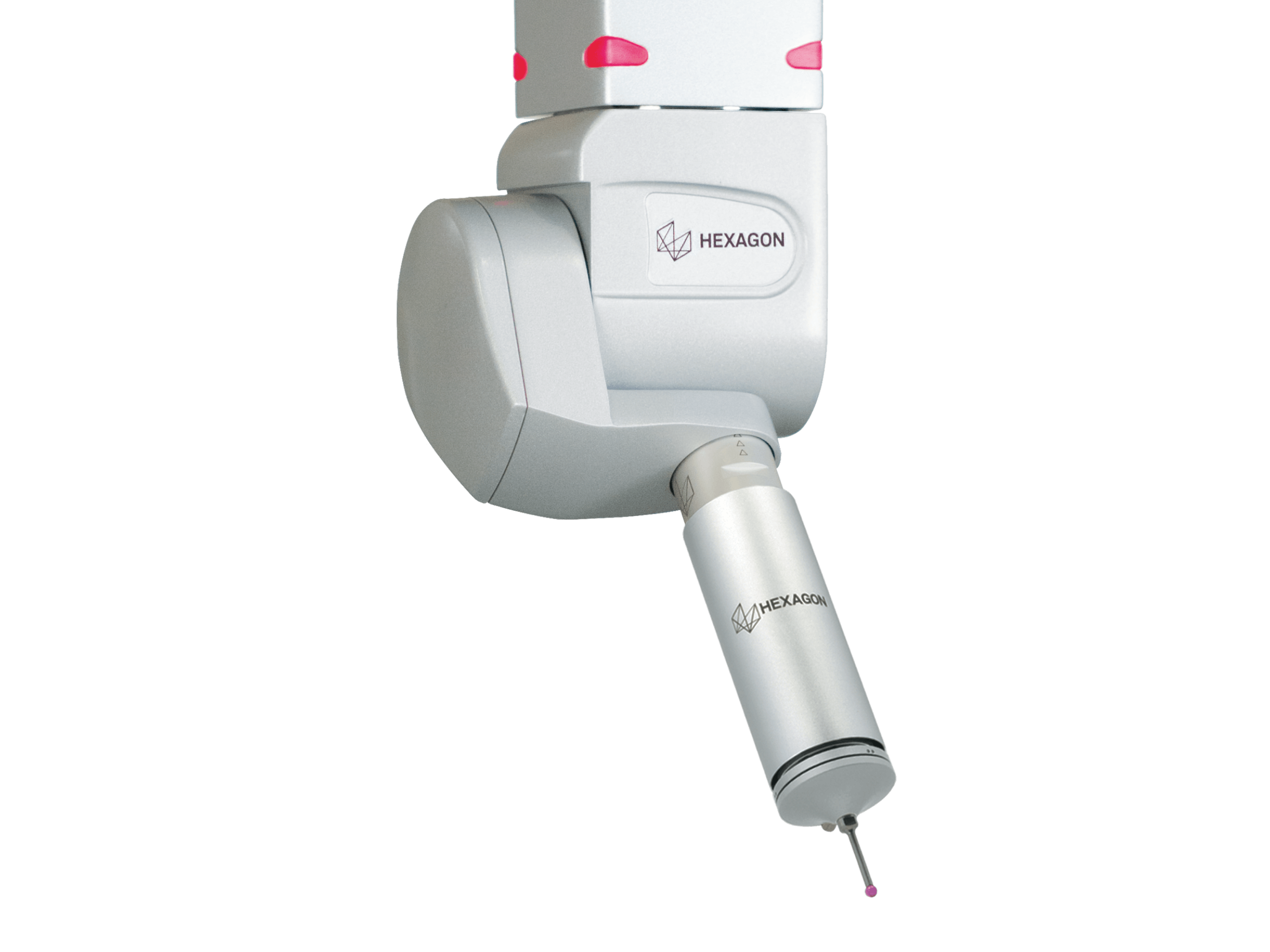

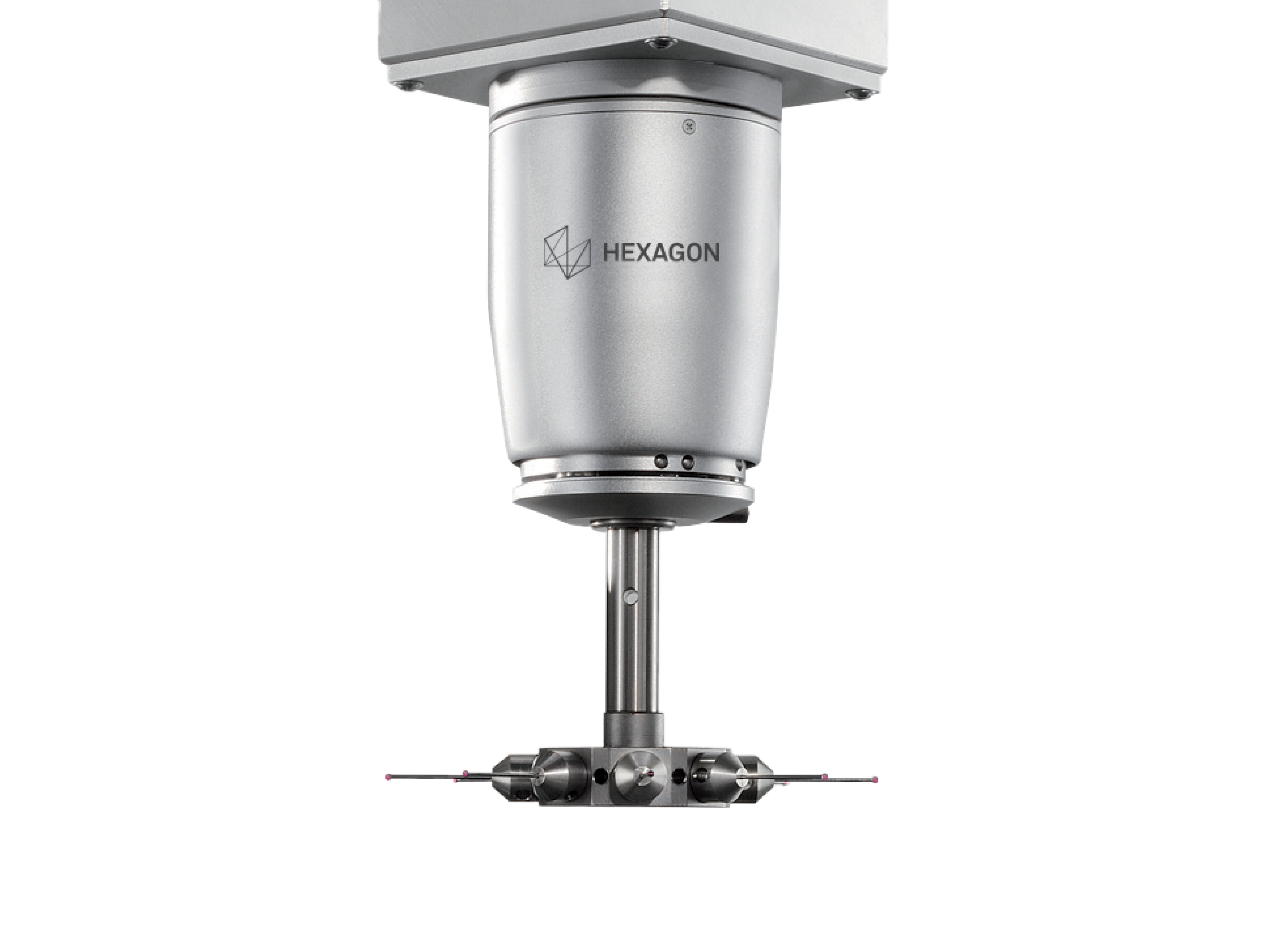

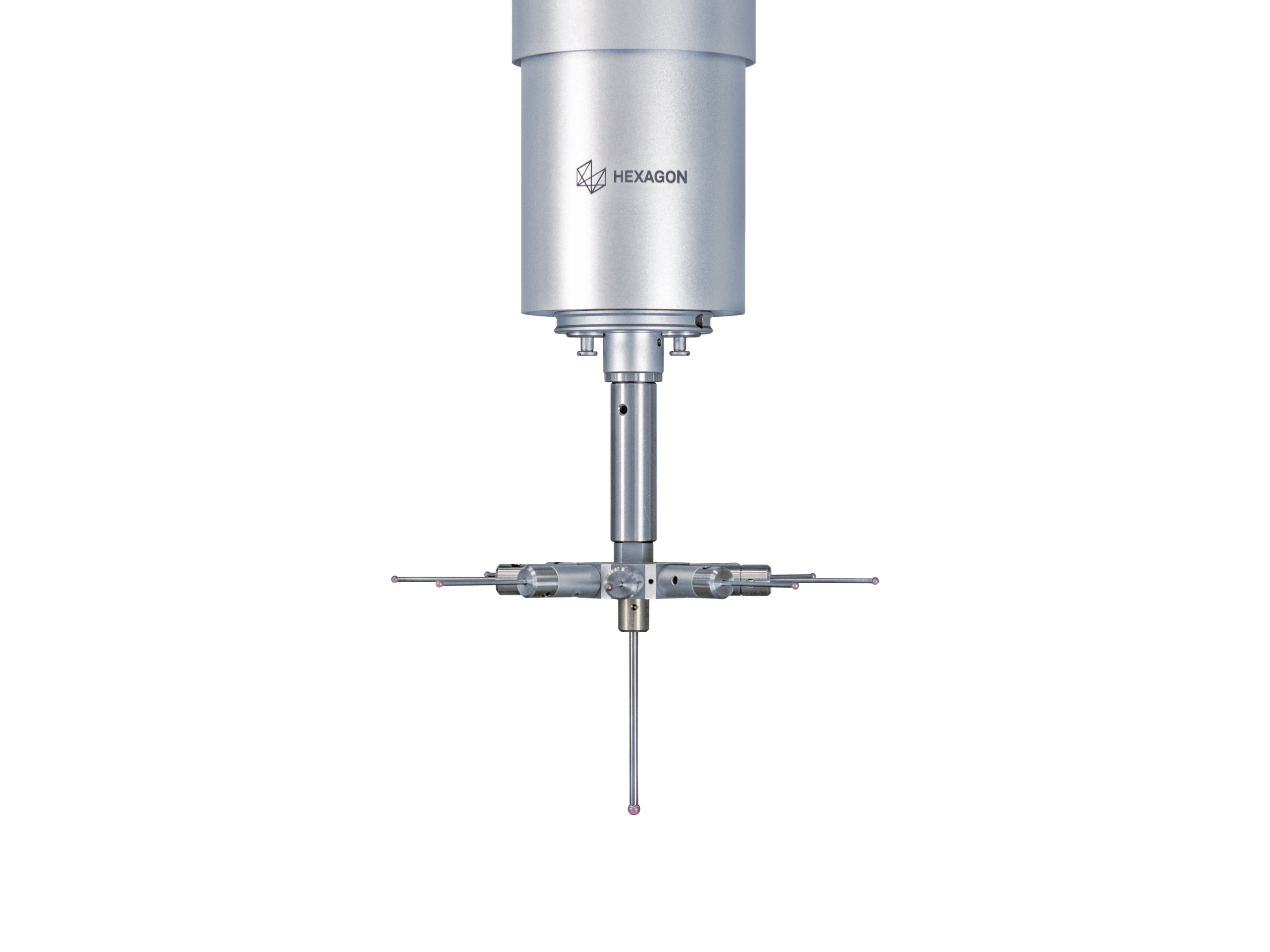

Ultra-precise, full 3D fixed scanning probe heads
The HP-S-X5 and HP-S-X5 HD are heavy-duty analog scanning probes that offer high and repeatable accuracy, even with extra-long probe extensions and heavy styli clusters.
HP-S-X5 range scanning probes offer true 3D probing, making them ideal for inspecting parts like gears, rotors, and blades. On contact with the part, the probe automatically measures normally to the surface. Deflections are measured by high-resolution Linear Variable Differential Transducers (LVDT), allowing accurate compensation of the probe bend, whatever length of stylus is used
HP-S-X5 Scanning Probes Specifications
| Probe type | |
|---|---|
Analogue | |
| Probe mounting | |
Center mounted / dovetail connector | |
| Stylus holder thread | |
M5 | |
| Max. stylus length | |
Up to 800mm | |
| Max. stylus weight | |
650g (incl. stylus clamping) | |
| Measurement range | |
+/- 1mm in all axes | |
| Resolution | |
< 0.1 μm | |
| Linear stiffness | |
5 N/mm |
