Compact scanning probes from Hexagon Manufacturing Intelligence
The HP-S-X1 scanning probes offer the accuracy characteristics of fixed heads but can also be fitted to HH-A and HH-AS automatic indexable heads being capable to measure both in point to point and in continuous scanning mode.

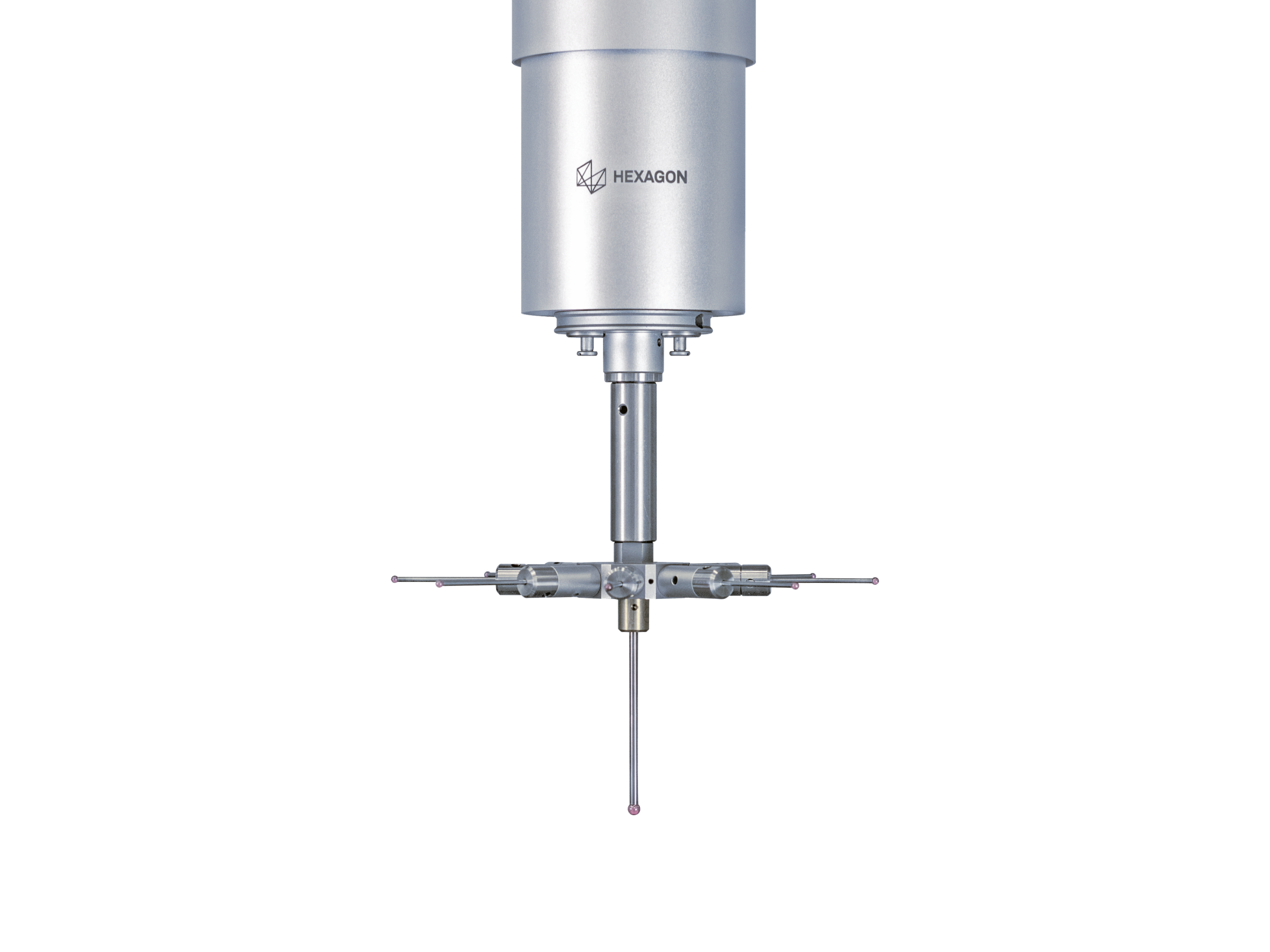

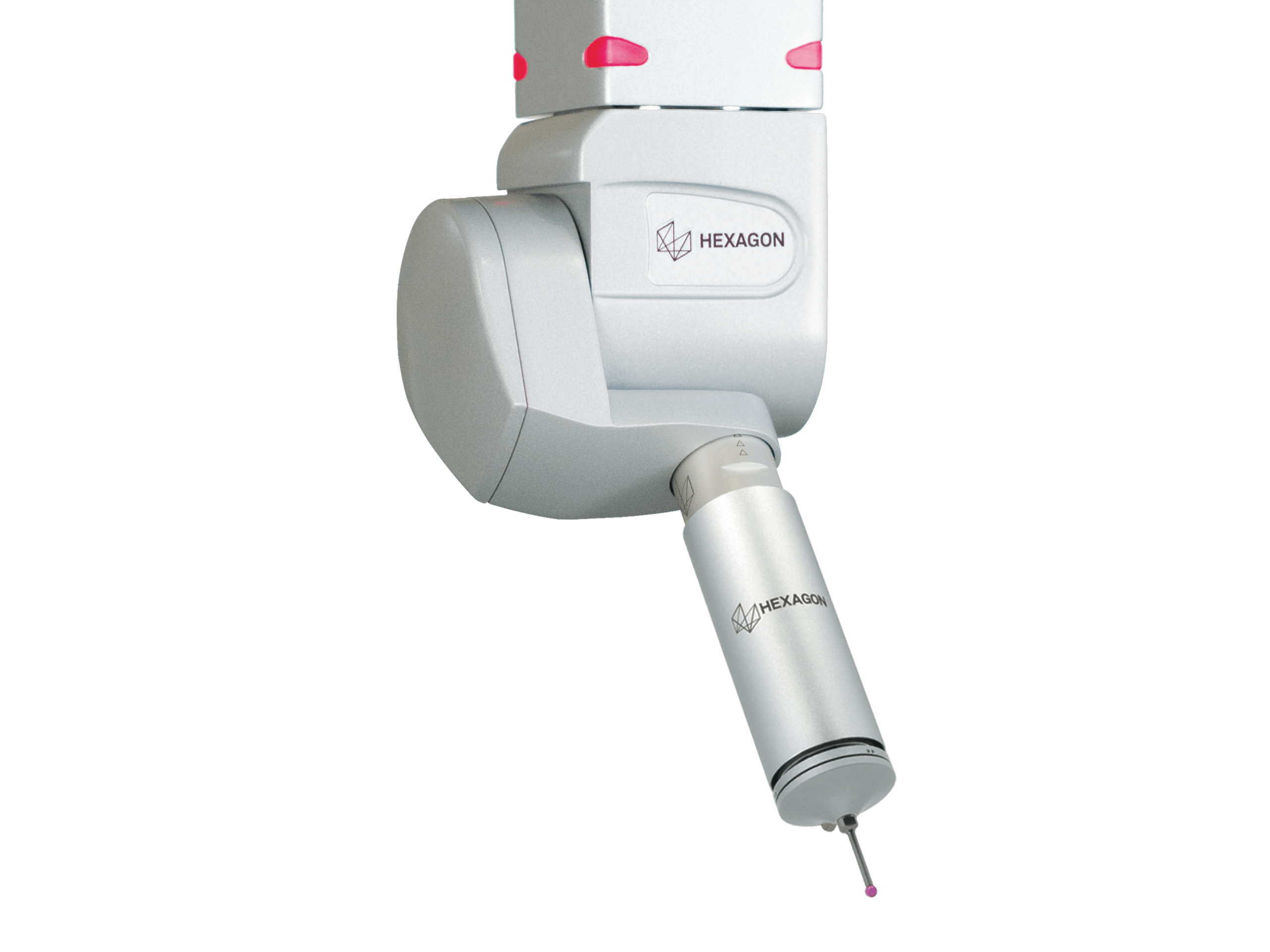

The HP-S-X1 Sensors are available in three types. The HP-S-X1S and HP-S-X1H can be fitted to Hexagon Manufacturing Intelligence Probe Heads HH-A and HH-AS. The HP-S-X1C in mounted directly to the measuring machine.
You might be interested in...
Related products
Training and Resources
Support
Connect and collaborate with your peers and experts
The Nexus Community provides you with excellent peer forums and the opportunity to learn from thousands of others in your industry. Currently, hundreds of peer forums waiting for you to explore into. Discover best practices and get the answers you need to succeed. Register for Nexus to get full access the Community forums.
Our team is ready to help
Our technical support teams are on hand to answer your questions. Contact us through our online form and we will get right back to you.
Compact scanning probes from Hexagon Manufacturing Intelligence
The HP-S-X1 scanning probes offer the accuracy characteristics of fixed heads but can also be fitted to HH-A and HH-AS automatic indexable heads being capable to measure both in point to point and in continuous scanning mode.
The HP-S-X1 Sensors are available in three types. The HP-S-X1S and HP-S-X1H can be fitted to Hexagon Manufacturing Intelligence Probe Heads HH-A and HH-AS. The HP-S-X1C in mounted directly to the measuring machine.
HP-S-X1 Scanning Probes Specifications
| Probe type | |
|---|---|
Analogue | |
| Probe mounting | |
TKJ (kinematic joint) / centre mounted | |
| Stylus holder thread | |
M3 | |
| Max. stylus length | |
Axial: Up to 225 mm Lateral: Up to 100 mm | |
| Max. stylus weight | |
33g (incl. stylus clamping) | |
| Measurement range | |
+/- 2 mm in all axes | |
| Resolution | |
< 0.1 μm | |
| Linear stiffness | |
1.2 N/mm |
