Vision camera measurement system for CMMs

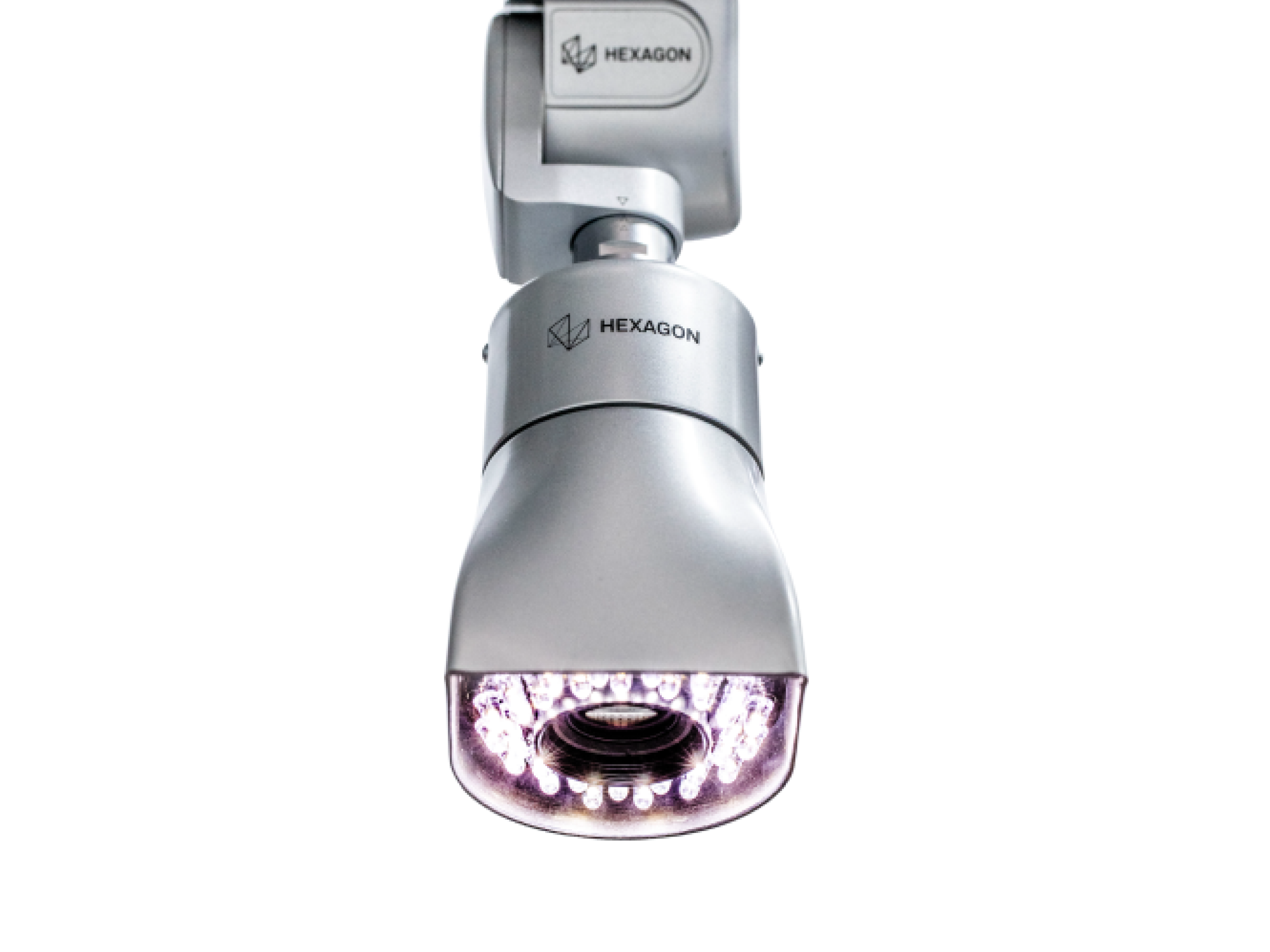

The HP-C Vision Sensor can measure small features and sensitive or easily deformed components and deliver throughput for applications where image capture is faster than probing. It is equipped with a high-resolution camera and a built-in illumination system.
Thanks to the working distance of 110 mm and two zooming options, the HP-C is an extremely flexible solution, especially when features are too small for tactile probing.
