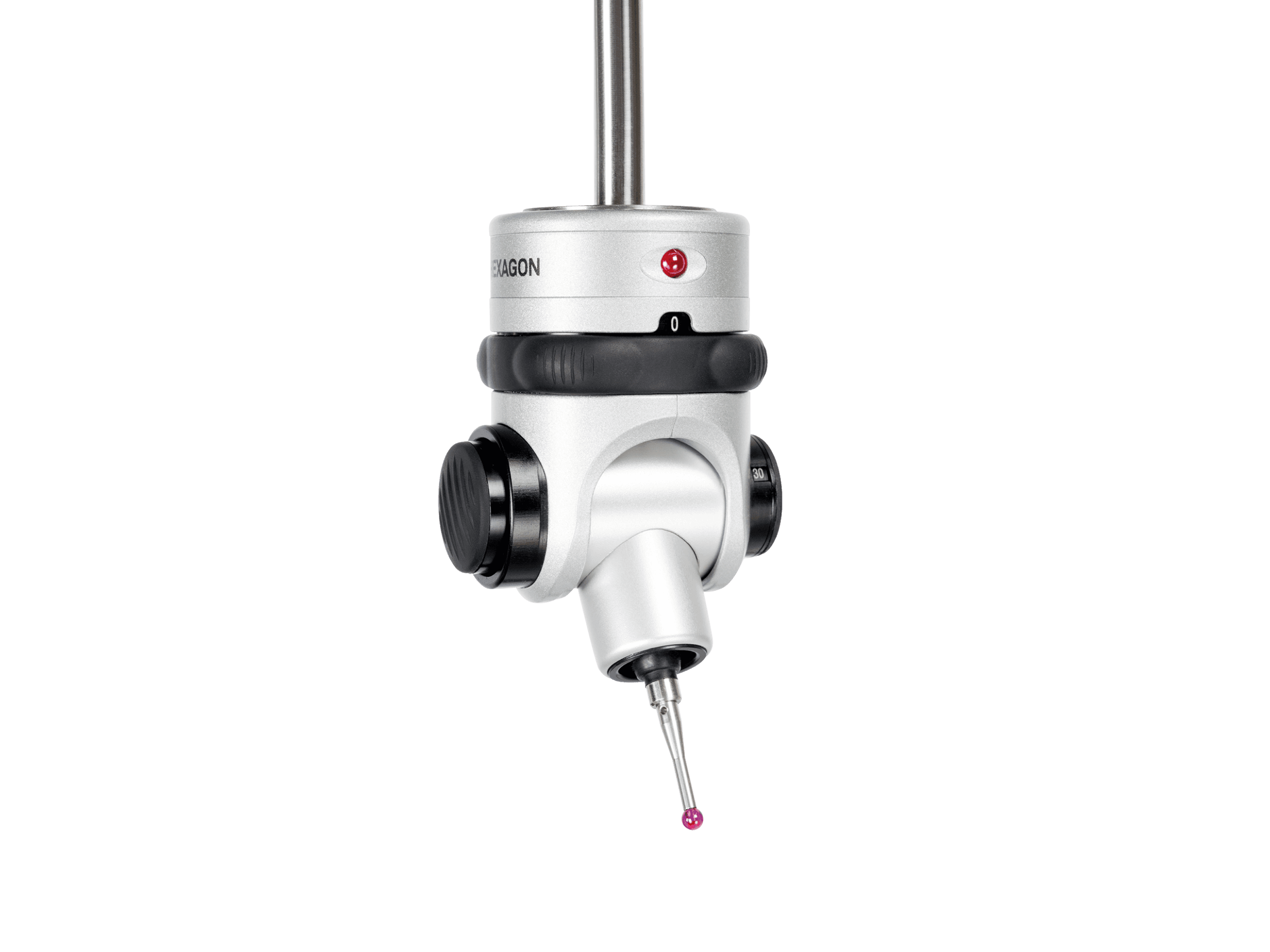

HH-MI Manual Probe Head
HH-MI Manual Indexing Probe Head with integrated touch trigger probe.
A probe head with an accurate indexing probe stylus
The HH-MI can turn to 168 positions and swivel in 15° increments without the need for recalibration.
The angular movements A and B are clearly indicated in separate windows on the probe head so that the precise angle can be viewed at a glance. HH-MI can be disengaged by hand. Tactile and visual feedback lets the user know the angular position of the ball probe at all times.
HH-MI Manual Probe Head Specifications
Indexing angle
15°
A-axis angle
0° - 90°
B-axis angle
+/-180°
Total number of positions
168
Rotation speed
Manual, by two buttons on the probes head
Max. extension length
Not available
Probe mounting
Not available
Changer rack compatibility
Not compatible
