A new degree of freedom

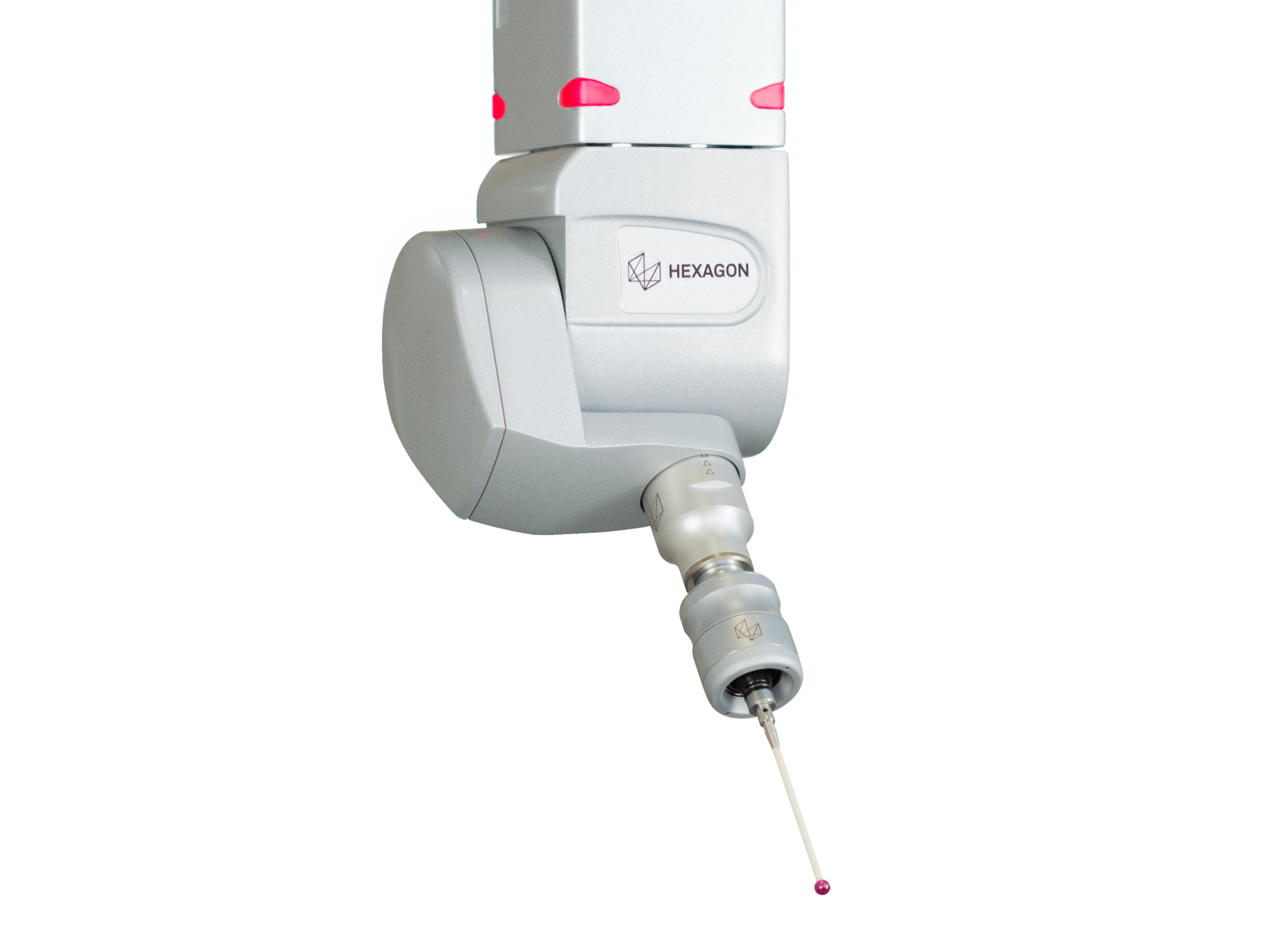

The HH-A-T2.5 is capable of indexing in 2.5° increments and can achieve 12,240 unique positions. The head is fitted with a kinematic joint (TKJ) which can be connected to a Multiwire to give multi-sensor support.
The HH-A-2.5 range of probe heads feature a number of new innovations including an fully embedded controller, capacitive crash protection and the all new heavy duty kinematic joint.
You might be interested in...
Training and Resources
Support
Connect and collaborate with your peers and experts
The Nexus Community provides you with excellent peer forums and the opportunity to learn from thousands of others in your industry. Currently, hundreds of peer forums waiting for you to explore into. Discover best practices and get the answers you need to succeed. Register for Nexus to get full access the Community forums.
Our team is ready to help
Our technical support teams are on hand to answer your questions. Contact us through our online form and we will get right back to you.
A new degree of freedom
The HH-A-T2.5 is capable of indexing in 2.5° increments and can achieve 12,240 unique positions. The head is fitted with a kinematic joint (TKJ) which can be connected to a Multiwire to give multi-sensor support.
The HH-A-2.5 range of probe heads feature a number of new innovations including an fully embedded controller, capacitive crash protection and the all new heavy duty kinematic joint.
HH-A-T2.5 / HH-AS-T2.5 Automatic 2.5° Probe Heads Specifications
| Indexing angle | |
|---|---|
2.5° | |
| A-axis angle | |
+/-105° | |
| B-axis angle | |
+/-180° | |
| Total number of positions | |
12 240 | |
| Rotation speed | |
90° in 2.5 sec. | |
| Max. extension length | |
450 mm | |
| Probe mounting | |
TKJ | |
| Changer rack compatibility | |
YES |
