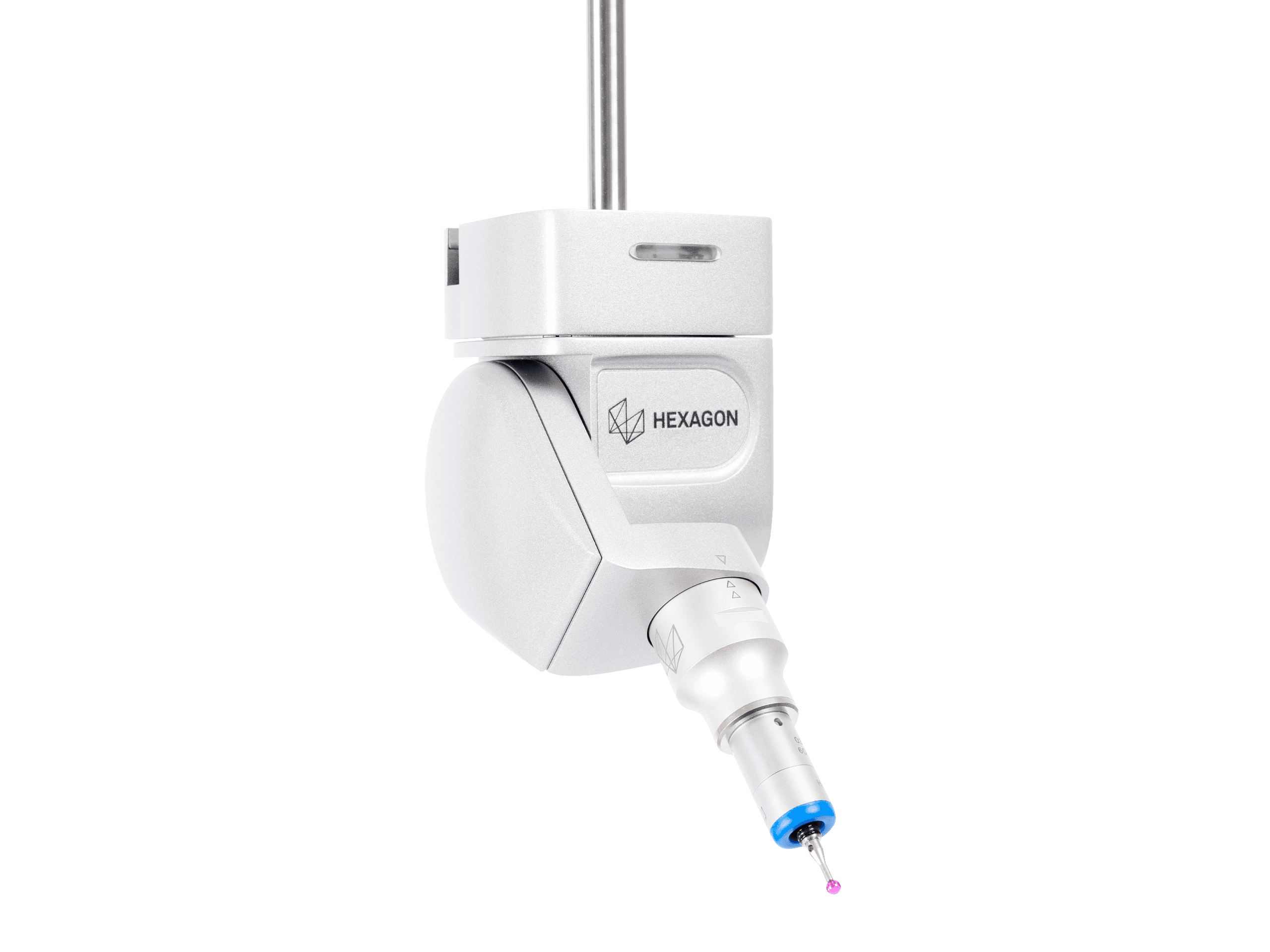

HH-A / HH-AS Automatic 7.5° Probe Heads
The universal system component for use with any multi-coordinate measuring machine, whatever the model or manufacturer.
© 2025 Hexagon AB and/or its subsidiaries
The universal system component for use with any multi-coordinate measuring machine, whatever the model or manufacturer.
© 2025 Hexagon AB and/or its subsidiaries
Sensors can be connected to the Probe Head with a kinematic joint (HH-A-T7.5 and HH-AS-T7.5) or an M8 threaded connection (HH-A-M7.5 and HH-AS-M7.5).
The Probe Heads can index in 7.5° increments and achieve 720 unique positions.
The Probe Heads feature high-speed operation and high rotational torque. Sensors can be changed either manually or automatically (with the HR-R probe changer) without requiring requalification.
There are two ways of mounting the probe head to the machine. The HH-A-T7.5 and HH-A-M7.5 are equipped with a shank or flange fitting to the machine. The HH-AS-T7.5 and HH-AS-M7.5 can be mounted directly into any machine with an 80mm ram.
Indexing angle
7.5°
A-axis angle
+ 105° to - 0°
B-axis angle
+/-180°
Total number of positions
720
Rotation speed
90° in 2 sec.
Max. extension length
300 mm
Probe mounting
TKJ / M8 thread
Changer rack compatibility
YES
