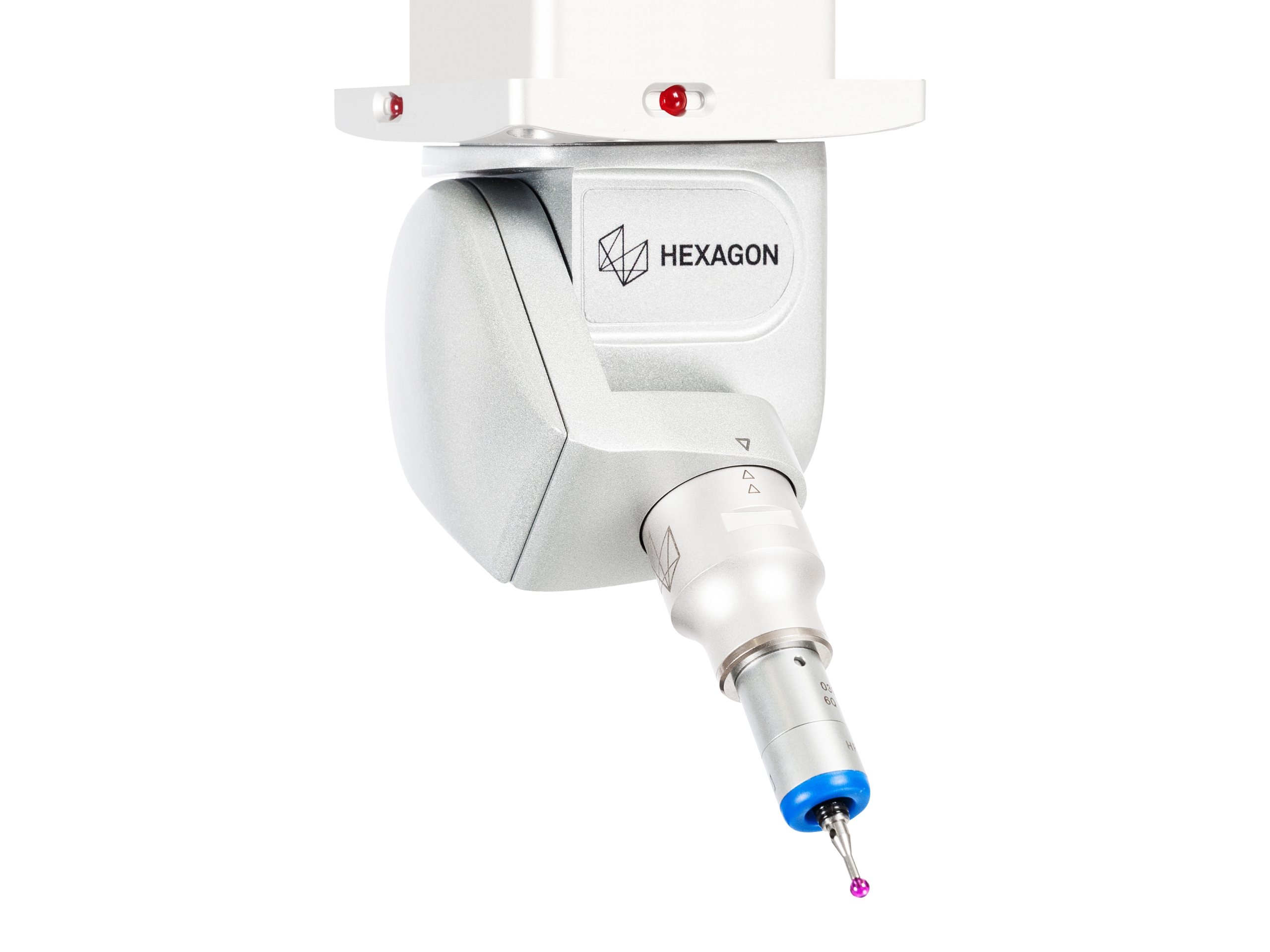

HH-A / HH-AS Automatic 5° Probe Heads
The universal system component for use with any multicoordinate measuring machine, whatever the model or manufacturer.
© 2025 Hexagon AB and/or its subsidiaries
The universal system component for use with any multicoordinate measuring machine, whatever the model or manufacturer.
© 2025 Hexagon AB and/or its subsidiaries
Sensors can be connected to the Probe Head with a kinematic joint (HH-A-T5 and HH-AS-T5) or an M8 threaded connection (HH-A-M5 and HH-AS-M5). The Probe Heads can index in 5° increments and achieve 3024 unique positions. The Probe Heads feature high-speed operation and high rotational torque. Sensors can be changed either manually or automatically (with the HR-R probe changer) without requiring requalification.
There are two ways of mounting the probe head to the machine. The HH-A-T5 and HH-A-M5 are equipped with a shank or flange fitting to the machine. The HH-AS-T5 and HH-AS-M5 can be mounted directly into any machine with an 80mm or 65mm ram.
Sensors can be connected to the Probe Head with a kinematic joint (HH-A-T5 and HH-AS-T5) or an M8 threaded connection (HH-A-M5 and HH-AS-M5). The Probe Heads can index in 5° increments and achieve 3024 unique positions. The Probe Heads feature high-speed operation and high rotational torque. Sensors can be changed either manually or automatically (with the HR-R probe changer) without requiring requalification.
There are two ways of mounting the probe head to the machine. The HH-A-T5 and HH-A-M5 are equipped with a shank or flange fitting to the machine. The HH-AS-T5 and HH-AS-M5 can be mounted directly into any machine with an 80mm or 65mm ram.
Indexing angle
5°
A-axis angle
+ 90° to -115°
B-axis angle
+/-180°
Total number of positions
3024
Rotation speed
90° in 2 sec.
Max. extension length
300 mm
Probe mounting
TKJ / M8 thread
Changer rack compatibility
YES
