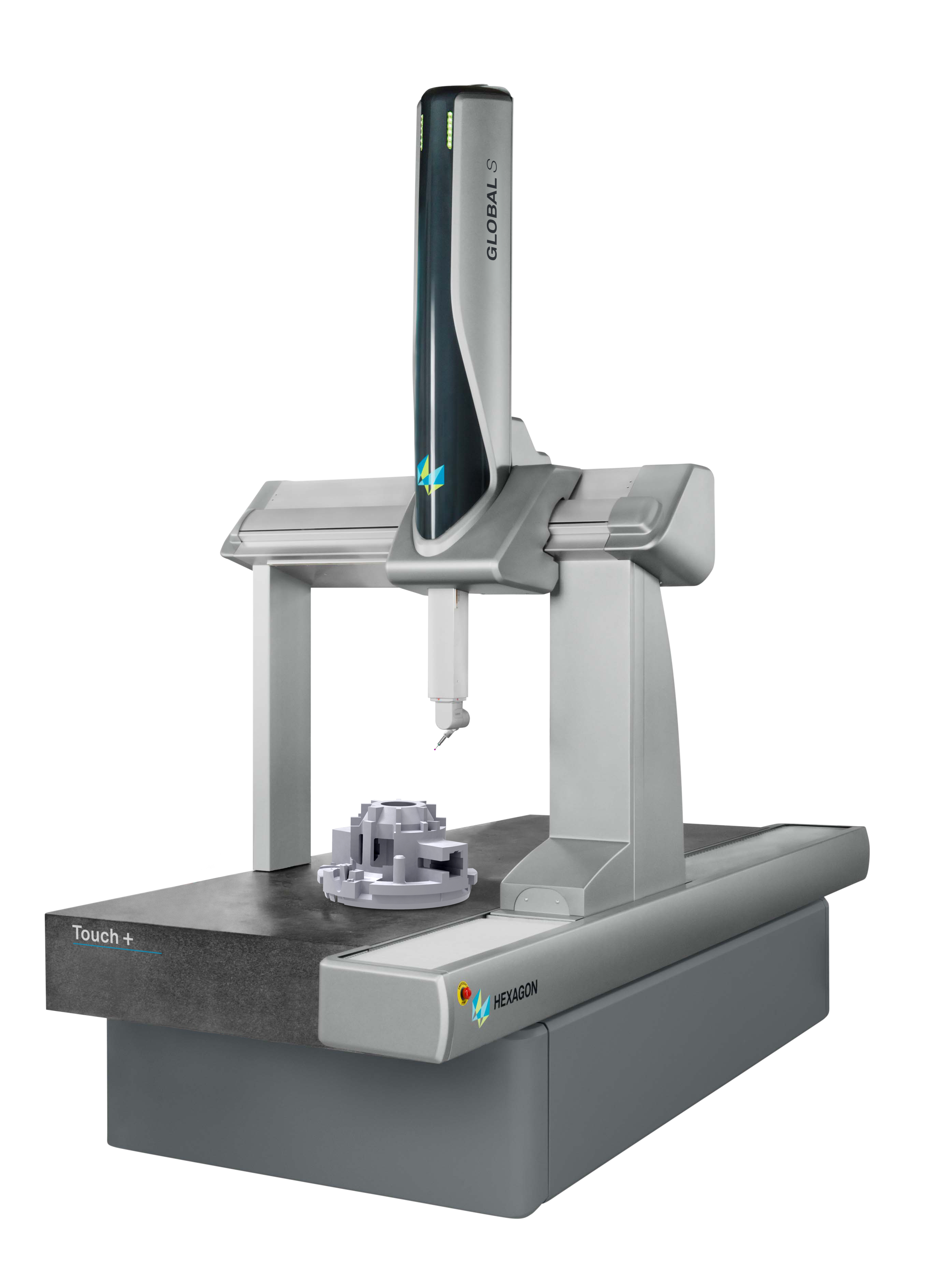

Shorten tactile measurement cycles
Using a highly versatile and accurate 6-way touch-trigger probe with a motorized indexing probe head to flexibly position the probe during measurement, the GLOBAL Touch+ model is configured to provide outstanding tactile single‑point measurement performance on prismatic parts.
Optimal feature accessibility and minimized stylus changes are guaranteed even for the most intricate 3D part geometries. In addition, a multi-port module changer rack allows fast and repeatable changing of probe modules with different trigger forces and styli configurations without recalibration, further contributing to streamlining measuring cycles.
GLOBAL Touch+ Specifications
| Available Size (X, Y, Z)₁ | |
|---|---|
05.05.05 / 05.07.05 / 07.07.05 / 07.10.07 / 09.12.08 / 09.15.08 / 09.20.08 / 12.15.10 / 12.22.10 / 12.30.10 | |
| Accuracy₂ | |
From 1.5μm + L/333, MPE(E0/E150)₃) [18-22 °C] From 1.7μm + L/250, MPE(E0/E150)₃) [16-26 °C] From 1.9μm + L/143, MPE(E0/E150)₄) [15-30 °C] | |
| Probe type compatibility | |
Touch-trigger probe | |
| Automation ready | |
YES | |
| Temperature specification | |
18-22 °C (lab temperature) 16-26 °C (extended temperature, option) 15-30 °C (shop floor packages, option)₄) |
₁ Sizes are expressed in dm. I.e., 05.07.05 means X = 500 mm; Y = 700 mm; Z = 500 mm
₂ According to ISO 10360-2 (2009)
₃ MPE(E0/E150) specifications are to be formally understood as MPE(E0E150)* for the case where non-normal CTE material calibrated test lengths are used. Length unit measure (L) in mm
₄ Shop-floor packages only for GLOBAL S
