Greatly reduces the complexity of machine tool calibration and volumetric error compensation

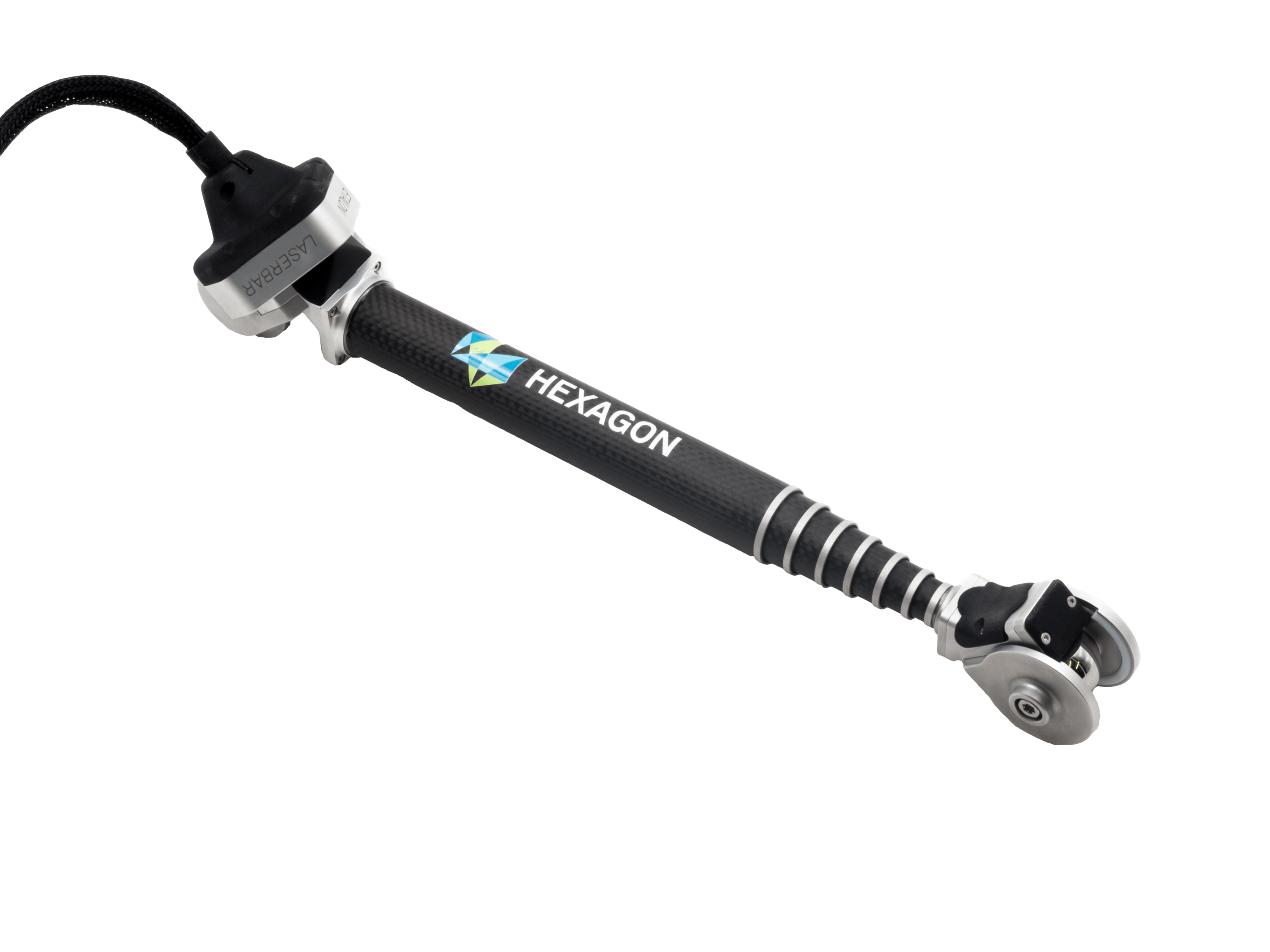

The ETALON X-AX LASERBAR replaces the need for multiple devices when calibrating small and medium 3- to 5-axis machine tools. Instead, it provides a single, semi-automatic system that rapidly delivers results at the touch of a button. It is a compact, light, and cost-effective solution that uses patented measurement technologies to determine volumetric machine deviations.
You might be interested in...
Training and Resources
Support
Connect and collaborate with your peers and experts
The Nexus Community provides you with excellent peer forums and the opportunity to learn from thousands of others in your industry. Currently, hundreds of peer forums waiting for you to explore into. Discover best practices and get the answers you need to succeed. Register for Nexus to get full access the Community forums.
Our team is ready to help
Our technical support teams are on hand to answer your questions. Contact us through our online form and we will get right back to you.
Greatly reduces the complexity of machine tool calibration and volumetric error compensation
The ETALON X-AX LASERBAR replaces the need for multiple devices when calibrating small and medium 3- to 5-axis machine tools. Instead, it provides a single, semi-automatic system that rapidly delivers results at the touch of a button. It is a compact, light, and cost-effective solution that uses patented measurement technologies to determine volumetric machine deviations.
ETALON X-AX LASERBAR Specifications
| Measurement uncertainty | |
|---|---|
1 μm | |
| Measurement range | |
270 – 1050 mm (Telescope L) 210 – 730 mm (Telescope S) | |
| Typical machine size | |
0.5 – 1.5 m | |
| Verification standard | |
ISO 230-1, 230-2, 230-4, 230-6, 16907 | VDI 3441 | ASME B5.54 |
