Nexus Home | Hardware | DPA Professional Hardware

DPA Professional

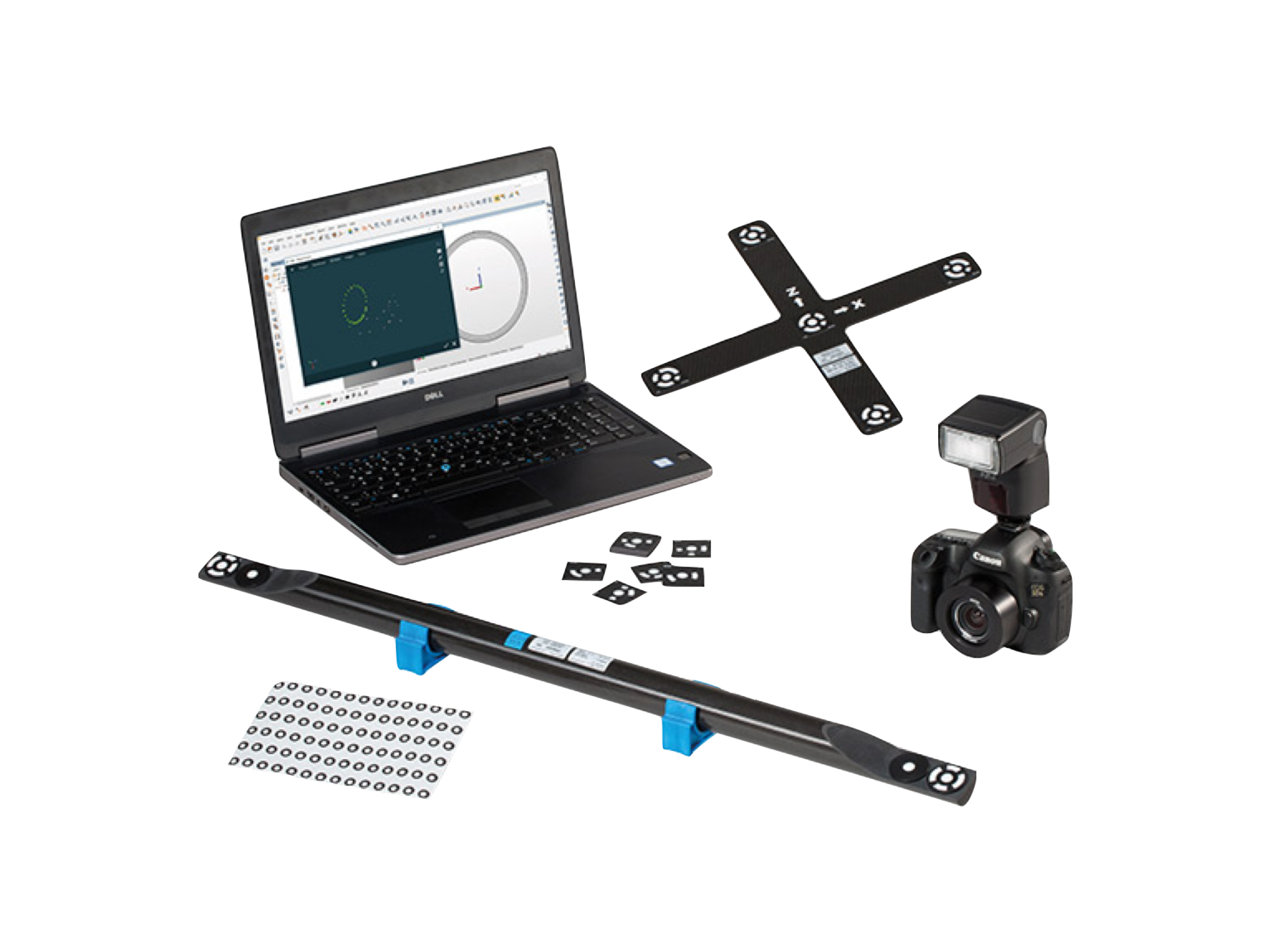

High-End 3D Measurement with a Handheld Digital Camera

Part of the DPA Series, DPA Professional is a handheld digital camera-based photogrammetry system that allows for both production control and monitoring on the spot, without long manufacturing downtime or time-consuming transport to the measuring machine.

Training and Resources

DPA Professional Specifications

Sensor unit	Camera resolution	Speed	View finder
Canon EOS R	30.3 MP \| 6720 x 4480	Up to 8 images / sec.	Diopter
Sensor weight	Wireless data transfer	Accuracy (MPE₁)	Certification
1.7 kg	Optional	15 μm + 15 μm * Length diagonal [m]	VDI 2634 page 1 certified system

Sensor unit
Canon EOS R
Camera resolution
30.3 MP \| 6720 x 4480
Speed
Up to 8 images / sec.
View finder
Diopter
Sensor weight
1.7 kg
Wireless data transfer
Optional
Accuracy (MPE₁)
15 μm + 15 μm * Length diagonal [m]
Certification
VDI 2634 page 1 certified system

₁ MPE (Maximum Permissible Error) of length measurement error, based on VDI/VDE 2634 part 1: defined as maximum permissible deviation of a measured length, which is located between two measuring points, signalised with photogrammetric targets, in the entire measuring volume of the measuring object, regardless of the position and orientation.
