CALIPRI RCx
Offline profile measurement system

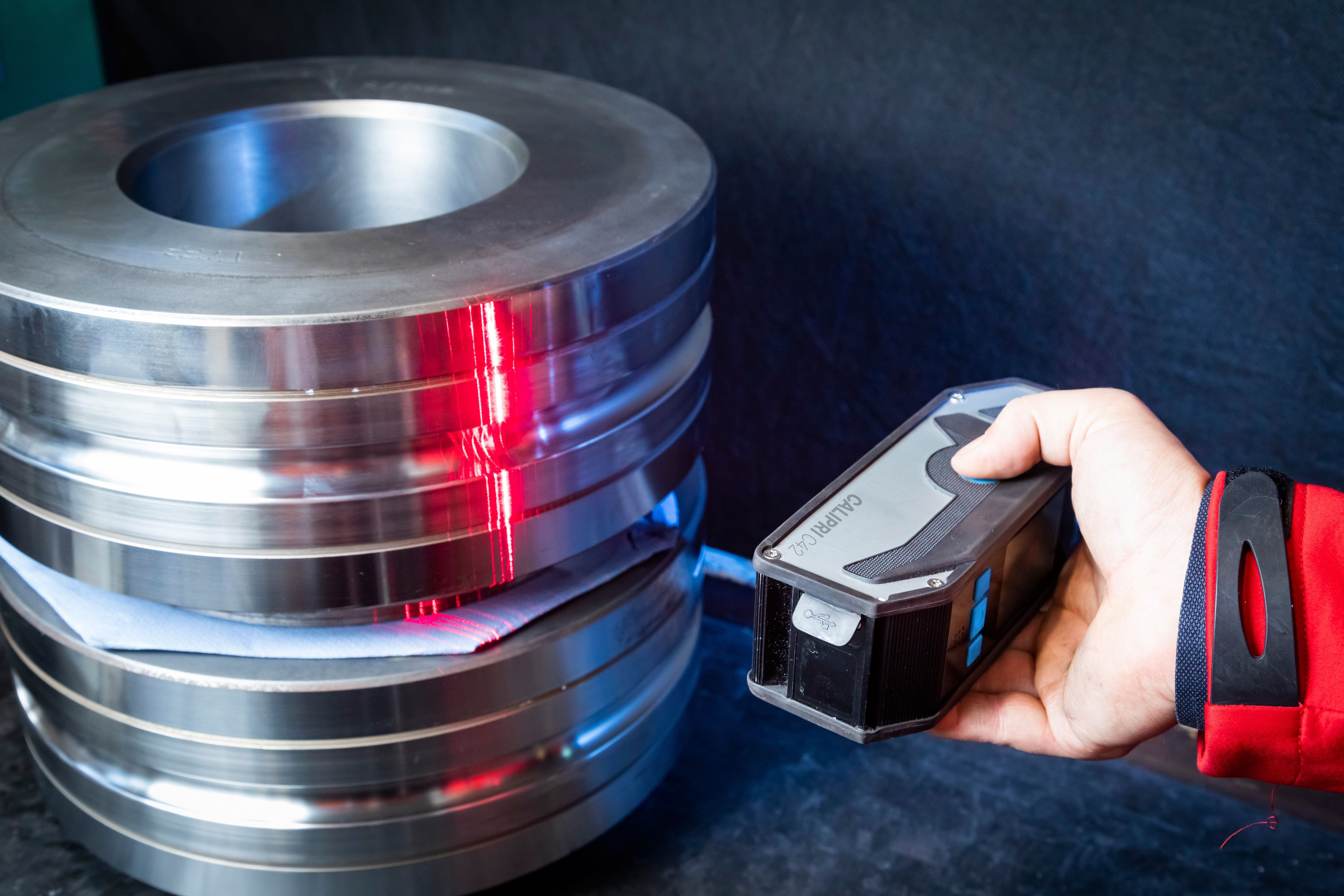

Based on non-contact laser light sectioning technology, the CALIPRI RCx helps steel producers quickly ramp up and achieve high dimensional quality standards. It also supports fast tooling changes between profile types and pinpoints the source of issues within the specific forming operation.
The CALIPRI RCx steel profile measurement solution is portable. It can be used between rolling and forming stations to acquire in-process measurements of hot-rolled profiles and quickly compare those measurements to the original targets. Measurements are shown immediately on the wireless-connected tablet PC. It offers significantly more information than traditional methods and enables more precise adjustments of the rolling tools.
Training and Resources
CALIPRI RCx Specifications
| Measurement capability | |
|---|---|
Snapshot cross section of hot rolled products | |
| Technology | |
Non-contact laser light section with patented CALIPRI principle | |
| Laser class | |
2M | |
| Object temperature | |
< 1000 °C | |
| Object size | |
RC220: 140 x 100mm, 120 x 120mm RC350: 350 x 350mm – convex shape | |
| Operation | |
Portable, wireless, battery supplied | |
| Data export | |
csv, xml, pdf, profile comparison |
