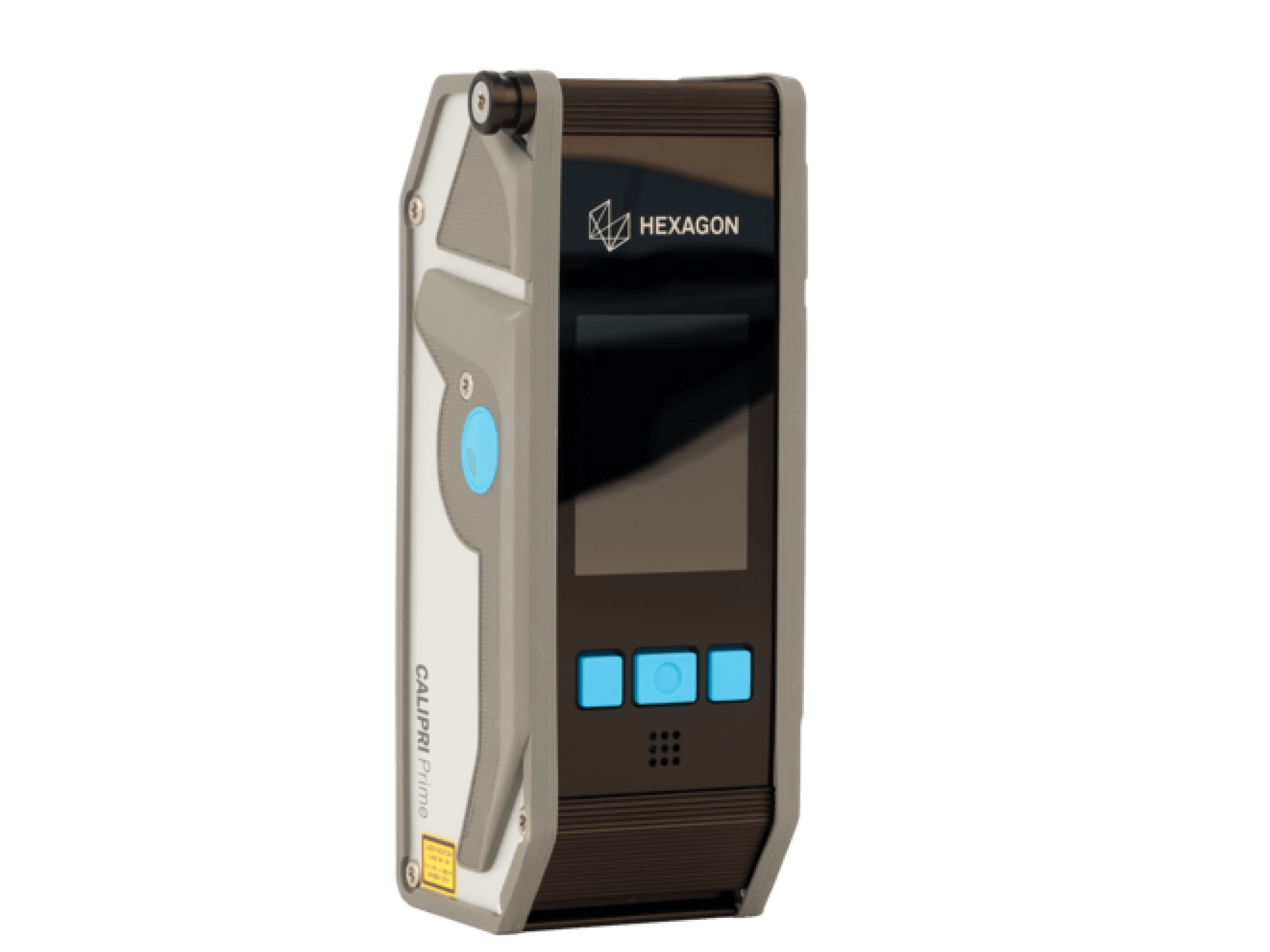

Handheld optical inspection solution
With CALIPRI Prime, errors caused when attaching bulky instruments and variations from using wheel profile wear gauges or templates are a thing of the past. The device’s embedded software evaluates flange height, thickness, and cross-dimension (qR) according to preset limit values. All the wheel characteristics are displayed on the sensor screen within a few seconds and are available for digital transfer to your PC if needed.
The CALIPRI Prime is typically used in for train wheel measurement in maintenance applications in service shops, stations, or in the field. It can replace mechanical gauges and fixtures for several wheel measurement applications, reducing the total cost and improving accuracy.
Training and Resources
Support
Connect and collaborate with your peers and experts
The Nexus Community provides you with excellent peer forums and the opportunity to learn from thousands of others in your industry. Currently, hundreds of peer forums waiting for you to explore into. Discover best practices and get the answers you need to succeed. Register for Nexus to get full access the Community forums.
Our team is ready to help
Our technical support teams are on hand to answer your questions. Contact us through our online form and we will get right back to you.
Handheld optical inspection solution
With CALIPRI Prime, errors caused when attaching bulky instruments and variations from using wheel profile wear gauges or templates are a thing of the past. The device’s embedded software evaluates flange height, thickness, and cross-dimension (qR) according to preset limit values. All the wheel characteristics are displayed on the sensor screen within a few seconds and are available for digital transfer to your PC if needed.
The CALIPRI Prime is typically used in for train wheel measurement in maintenance applications in service shops, stations, or in the field. It can replace mechanical gauges and fixtures for several wheel measurement applications, reducing the total cost and improving accuracy.
CALIPRI PRIME Specifications
| Measurement capability | |
|---|---|
Train wheel profiles | |
| Technology | |
Non-contact laser light section with patented CALIPRI principle | |
| Laser class | |
2M | |
| Protection class | |
IP54 (ruggedized design) | |
| Operation | |
Manual, battery supplied | |
| Field of view | |
150 – 130mm | 6 x 5 inches | |
| Accuracy | |
Accuracy < +/- 80μm Repeatability < +/-35µm | |
| Data export | |
csv, pdf |
