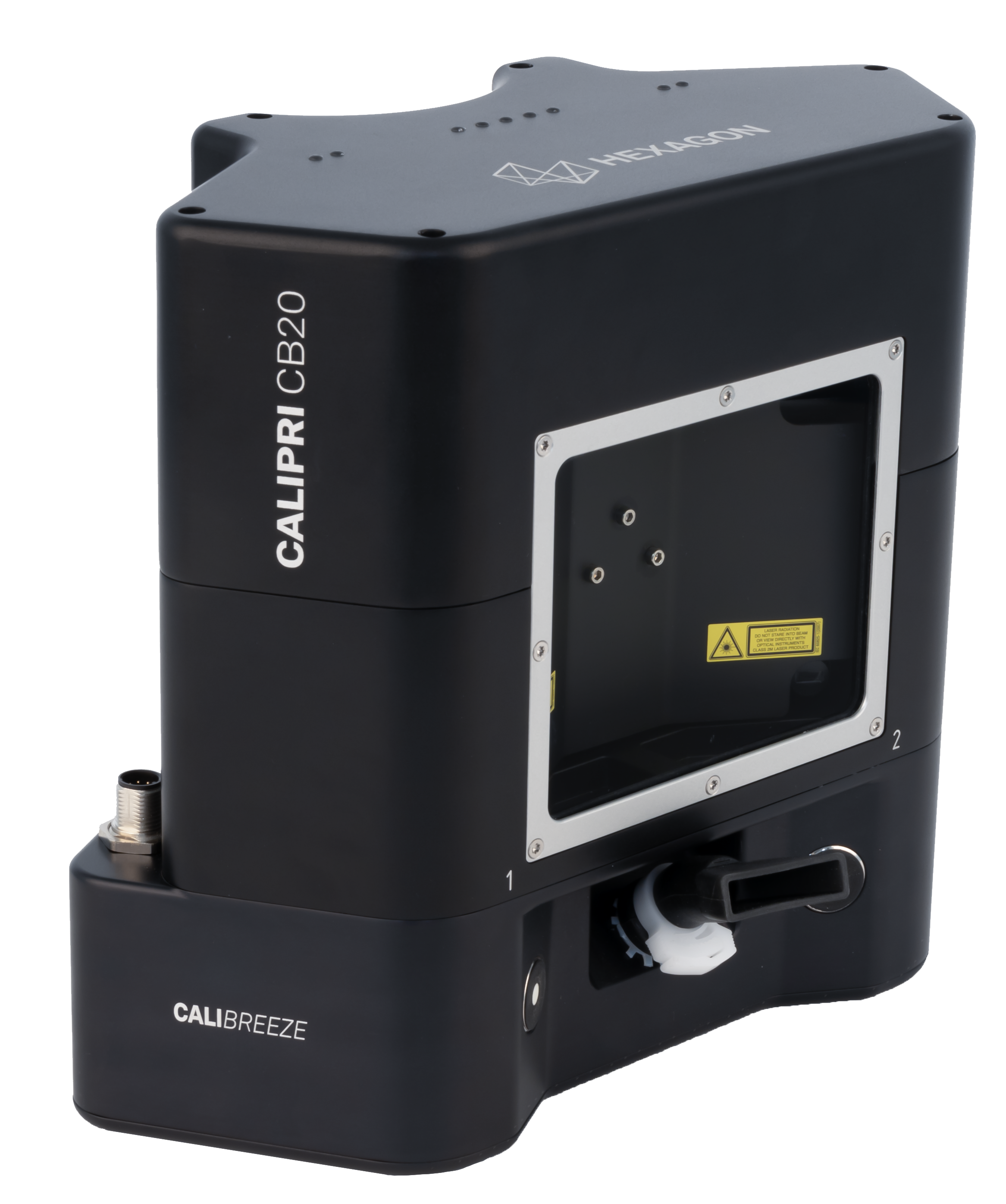

CALIPRI CB20

Revolutionary in-line gap measurement

Developed for 100% inline inspection, the fully automatic CALIPRI CB20 system meets the highest demands on cycle time and accuracy.

The revolutionary CaliBreeze technology integrated within the CALIPRI CB20, combined with the proven CALIPRI principle, enables optical measurements on every surface.

Revolutionary in-line gap measurement

Benefits And Features

Calibrated and temperature compensated

Our sensors are all calibrated and temperature compensated and can be – if necessary - exchanged within minutes and without adjustment.

Patented CaliBreeze technology

With the disruptive innovation of our CALIPRI CB20 with patented CaliBreeze technology the automation of gap and flush measuring is on the advance.

Clearly displayed results

Profile data and measurement results are clearly displayed on monitors to show limit exceedings with color-coded overlays.

Training and Resources

CALIPRI CB20 Specifications

Measurement capability	Technology	Laser class	Measurement time
Flush & gap - Automated, 100% inspection, in-line measurement, transparent gaps	Non-contact laser light section with patented CALIPRI principle	2M	1.0 sec/measuring point
Operation	Gap size range	Accuracy & repeatability	Data export
Robot mounted, automated, 100% inspection, robot cell and moving line	+/- 25 mm	Accuracy < +/- 20μm, Repeatability < +/-10µm	csv, xml, pdf, customer specific

Measurement capability

Technology

Laser class

Measurement time

Flush & gap - Automated, 100% inspection, in-line measurement, transparent gaps

Non-contact laser light section with patented CALIPRI principle

1.0 sec/measuring point

Operation

Gap size range

Accuracy & repeatability

Data export

Robot mounted, automated, 100% inspection, robot cell and moving line

+/- 25 mm

Accuracy < +/- 20μm,

Repeatability < +/-10µm

csv, xml, pdf, customer specific

Measurement capability
Flush & gap - Automated, 100% inspection, in-line measurement, transparent gaps
Technology
Non-contact laser light section with patented CALIPRI principle
Laser class
2M
Measurement time
1.0 sec/measuring point
Operation
Robot mounted, automated, 100% inspection, robot cell and moving line
Gap size range
+/- 25 mm
Accuracy & repeatability
Accuracy < +/- 20μm, Repeatability < +/-10µm
Data export
csv, xml, pdf, customer specific
