Detects roll wear and measures roll gaps

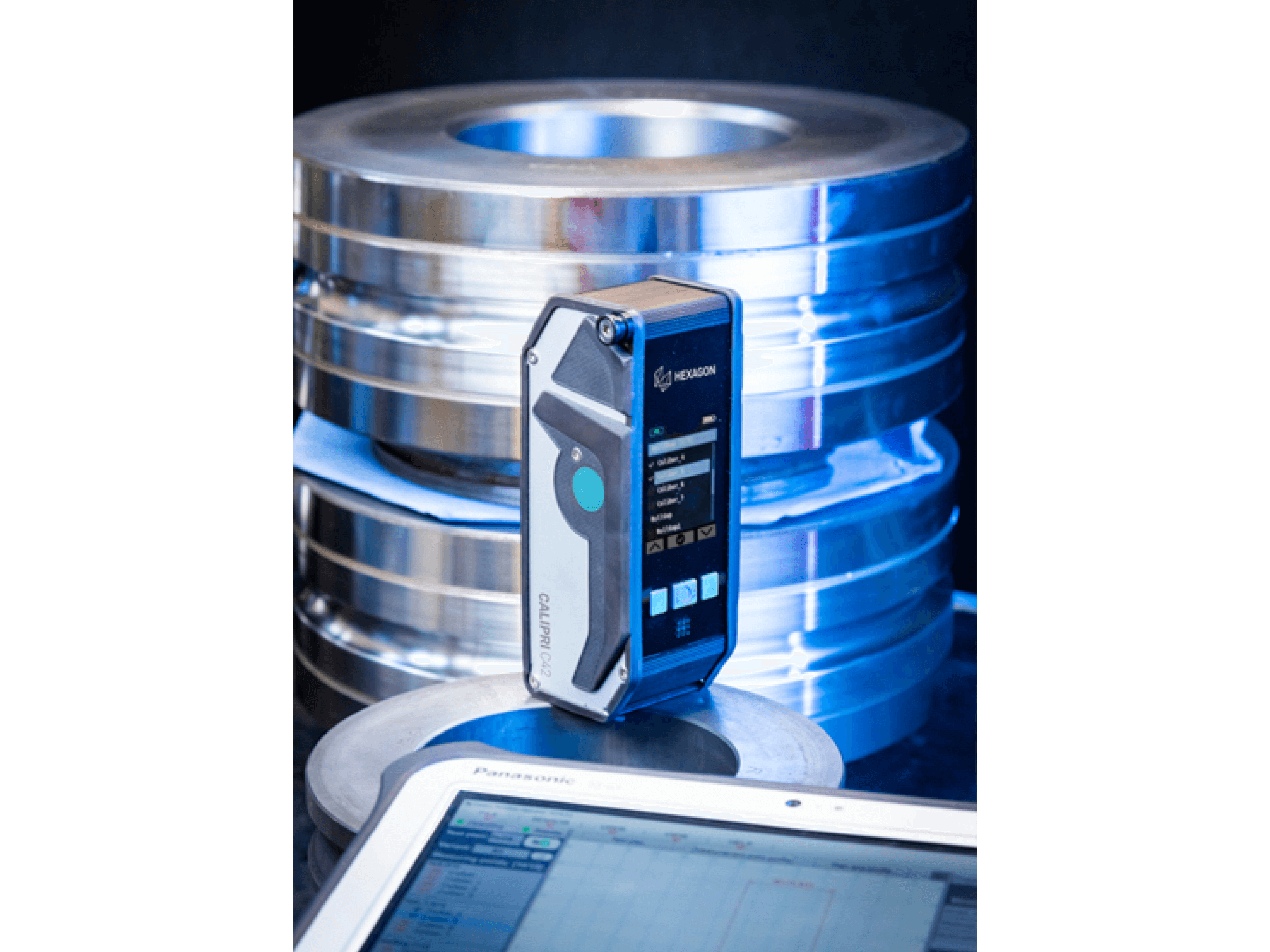

With CALIPRI C42 Rollshop the contactless profile measurement of rolls is done by a simple wave of your hand. The detection of roll wear, as well as the measurement of the roll gap, can be performed on build-in or dismounted rolls alike. Thus, making the C42 a universal gauge to optimize your product quality and production set-up.
Compared to mechanical or feeler gauges, the C42 delivers faster results at higher accuracy and with higher repeatability. Results are transferred wirelessly to a tablet PC, where the measured data is subsequently stored and used for data evaluation.
Benefits And Features
Fast & highly accurate measurement
Due to the patented CALIPRI principle the results are extremely reliable: roll and tilt corrections are done by the device automatically in order to generate highly precise, reproduceable and user-independent results.
Multiple applications, one profile gauge
The C42 Rollshop Bundle features two measurement methods: Roll Caliber: Measurements of depth and width of multiple grooves in a roll caliber. Roll Gap: measurement of the minimum gap between two flat roll sections.
Wireless data transfer
Results are transferred wireless to a tablet PC where the measured data subsequently is stored and can be used for data evaluation.
You might be interested in...
Training and Resources
Support
Connect and collaborate with your peers and experts
The Nexus Community provides you with excellent peer forums and the opportunity to learn from thousands of others in your industry. Currently, hundreds of peer forums waiting for you to explore into. Discover best practices and get the answers you need to succeed. Register for Nexus to get full access the Community forums.
Our team is ready to help
Our technical support teams are on hand to answer your questions. Contact us through our online form and we will get right back to you.
Detects roll wear and measures roll gaps
With CALIPRI C42 Rollshop the contactless profile measurement of rolls is done by a simple wave of your hand. The detection of roll wear, as well as the measurement of the roll gap, can be performed on build-in or dismounted rolls alike. Thus, making the C42 a universal gauge to optimize your product quality and production set-up.
Compared to mechanical or feeler gauges, the C42 delivers faster results at higher accuracy and with higher repeatability. Results are transferred wirelessly to a tablet PC, where the measured data is subsequently stored and used for data evaluation.
CALIPRI C42 RollShop Specifications
| Measurement capability | |
|---|---|
Profile, Roll caliber, Roll gap | |
| Technology | |
Non-contact laser light section with patented CALIPRI principle | |
| Laser class | |
2M | |
| Protection class | |
IP54 | |
| Operation | |
Manual, wireless, battery supplied | |
| Field of view | |
150 – 130mm | 6 x 5 inches | |
| Accuracy | |
< +/- 100 μm | |
| Data export | |
csv, xml, pdf, customer specific |
