Quick and correct evaluations with high repeatability

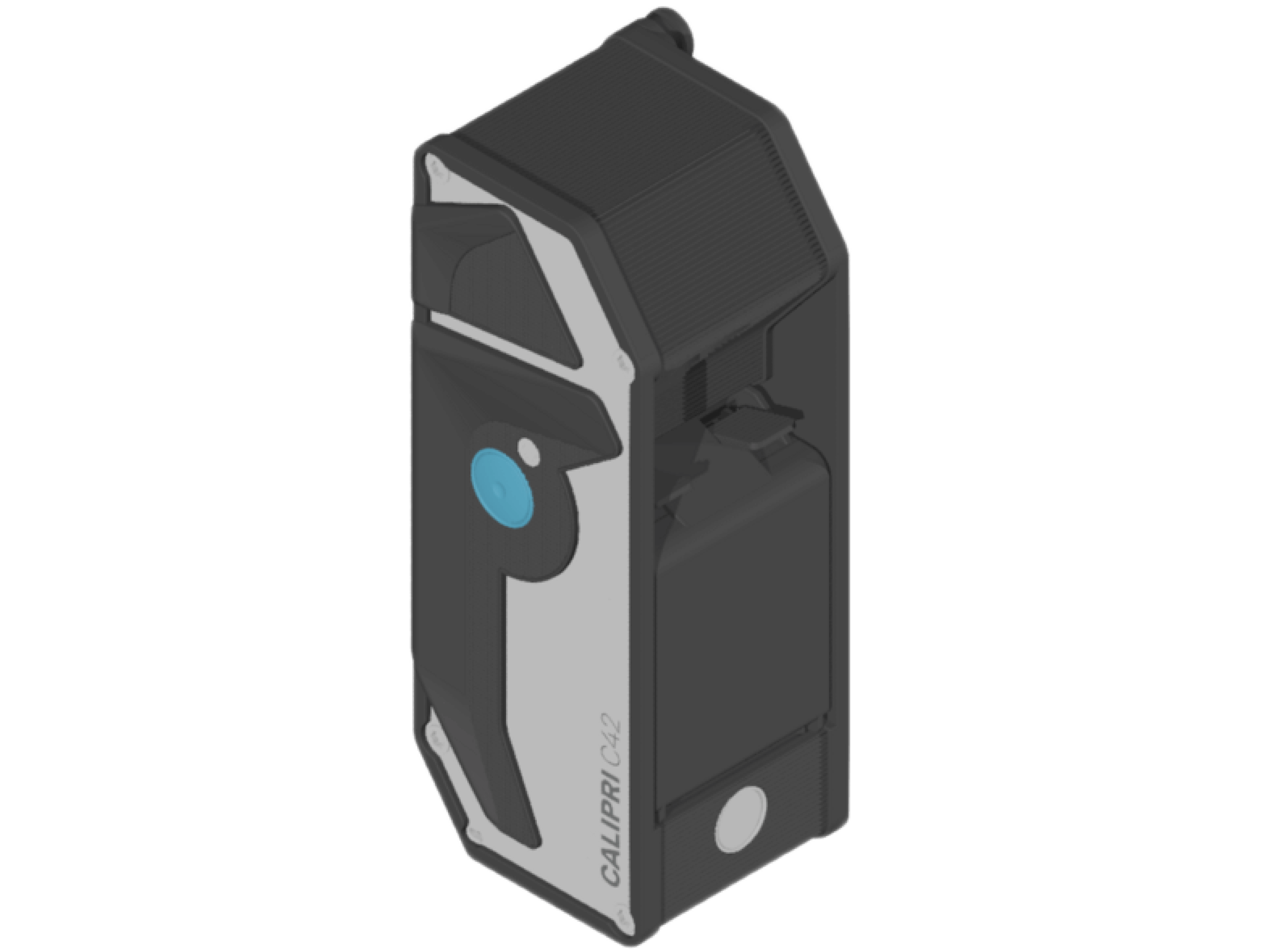

CALIPRI C42 meets the demand of the railway industry for easy-to-use profile measuring devices with highly reproducible results. The product stands for multifunctionality across the board for the complete wheel-rail system. Different software measurement modules for wheels, break discs, rails, and switches allow customized use across the rolling stock domain.
Users can perform different measurement tasks with just one lightweight and easy-to-operate system. Measured dimensions are displayed on a tablet PC or directly via the sensor display, and can be compared to predefined limit values.
Benefits And Features
Multifunctionality
The multifunctional CALIPRI C42 enables the combination of several inspection tasks (measurement modules) in one measurement device. You can choose the perfect combination.
User-independent results
CALIPRI C42 eliminates human error for reliable measured values. It is not necessary to exactly maintain the distance and angle to the wheel profile, as the CALIPRI method automatically compensates any rotations and tilts.
Rugged design meets lightweight sensor
CALIPRI C42 is a lightweight, easy-to-use sensor and allows comfortable measurement in the rail industry. Only one sensor is required for all measurements.
You might be interested in...
Related products
Training and Resources
Support
Connect and collaborate with your peers and experts
The Nexus Community provides you with excellent peer forums and the opportunity to learn from thousands of others in your industry. Currently, hundreds of peer forums waiting for you to explore into. Discover best practices and get the answers you need to succeed. Register for Nexus to get full access the Community forums.
Our team is ready to help
Our technical support teams are on hand to answer your questions. Contact us through our online form and we will get right back to you.
Quick and correct evaluations with high repeatability
CALIPRI C42 meets the demand of the railway industry for easy-to-use profile measuring devices with highly reproducible results. The product stands for multifunctionality across the board for the complete wheel-rail system. Different software measurement modules for wheels, break discs, rails, and switches allow customized use across the rolling stock domain.
Users can perform different measurement tasks with just one lightweight and easy-to-operate system. Measured dimensions are displayed on a tablet PC or directly via the sensor display, and can be compared to predefined limit values.
CALIPRI C42 Specifications
| Measurement capability | |
|---|---|
Train wheelsets – wheel profile, diameter, brake discs, rails, switches | |
| Technology | |
Non-contact laser light section with patented CALIPRI principle | |
| Laser class | |
2M | |
| Protection class | |
IP54 (ruggedized design) | |
| Operation | |
Manual, battery supplied | |
| Field of view | |
150 – 130mm | 6 x 5 inches | |
| Accuracy | |
Accuracy < +/- 80μm Repeatability < +/-35µm | |
| Data export | |
csv, xml, pdf, customer specific |
