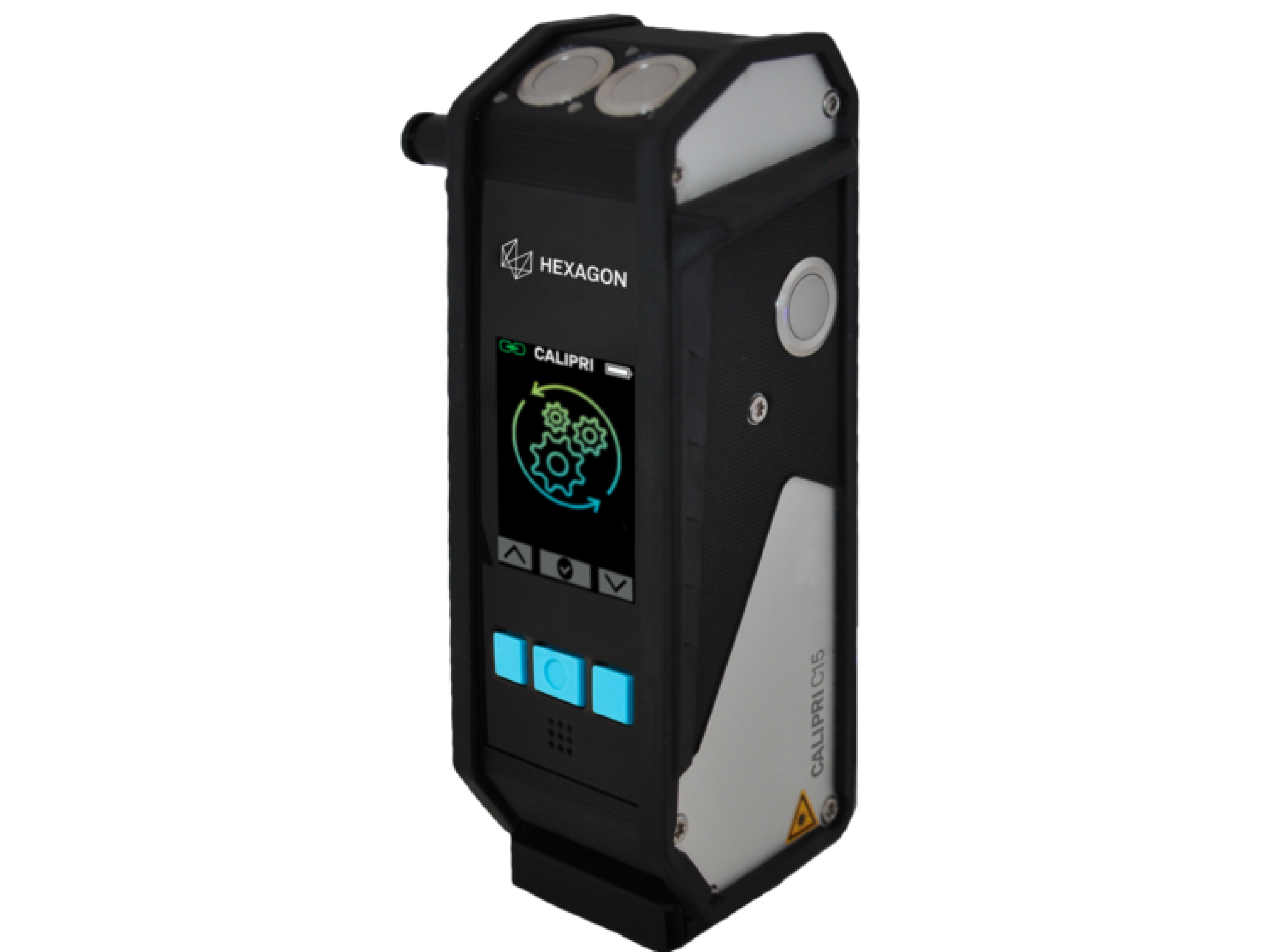

CALIPRI C15

Handheld measurement systems for inline flush and gap inspection in automotive

The CALIPRI C15 model brings extra flexibility to handheld inline measurement in production and assembly lines. The CALIPRI C15 wireless non-contact inline measurement device uses laser light section technology and supports continuous hand-guided gap and flush measurements on a production line.

The C15 exists in two versions, the C15 Fix for use at a single workstation, and the portable C15 Flex, which is designed for versatility and can be moved easily from one production line to another.

Handheld measurement systems for inline flush and gap inspection in automotive

Training and Resources

CALIPRI C15 Specifications

Measurement capability	Technology	Laser class	Measurement time
Flush & gap - Manual measurement, in-line measurement	Non-contact laser light section with patented CALIPRI principle	2M	1~4 sec/measuring point
Operation	Gap size range	Accuracy & repeatability	Data export
Inline, manual, wireless, hot swap battery	50 x 50 mm	Accuracy < +/- 30μm, Repeatability < +/-15µm	csv, xml, pdf, customer specific

Measurement capability

Technology

Laser class

Measurement time

Flush & gap - Manual measurement, in-line measurement

Non-contact laser light section with patented CALIPRI principle

1~4 sec/measuring point

Operation

Gap size range

Accuracy & repeatability

Data export

Inline, manual, wireless, hot swap battery

50 x 50 mm

Accuracy < +/- 30μm,

Repeatability < +/-15µm

csv, xml, pdf, customer specific

Measurement capability
Flush & gap - Manual measurement, in-line measurement
Technology
Non-contact laser light section with patented CALIPRI principle
Laser class
2M
Measurement time
1~4 sec/measuring point
Operation
Inline, manual, wireless, hot swap battery
Gap size range
50 x 50 mm
Accuracy & repeatability
Accuracy < +/- 30μm, Repeatability < +/-15µm
Data export
csv, xml, pdf, customer specific

Support

Connect and collaborate with your peers and experts

The Nexus Community provides you with excellent peer forums and the opportunity to learn from thousands of others in your industry. Currently, hundreds of peer forums waiting for you to explore into. Discover best practices and get the answers you need to succeed. Register for Nexus to get full access the Community forums.

Our team is ready to help

Our technical support teams are on hand to answer your questions. Contact us through our online form and we will get right back to you.

CALIPRI C14

CALIPRI C14 offers fast and accurate evaluation of gap, flush, and radius for automotive quality demands

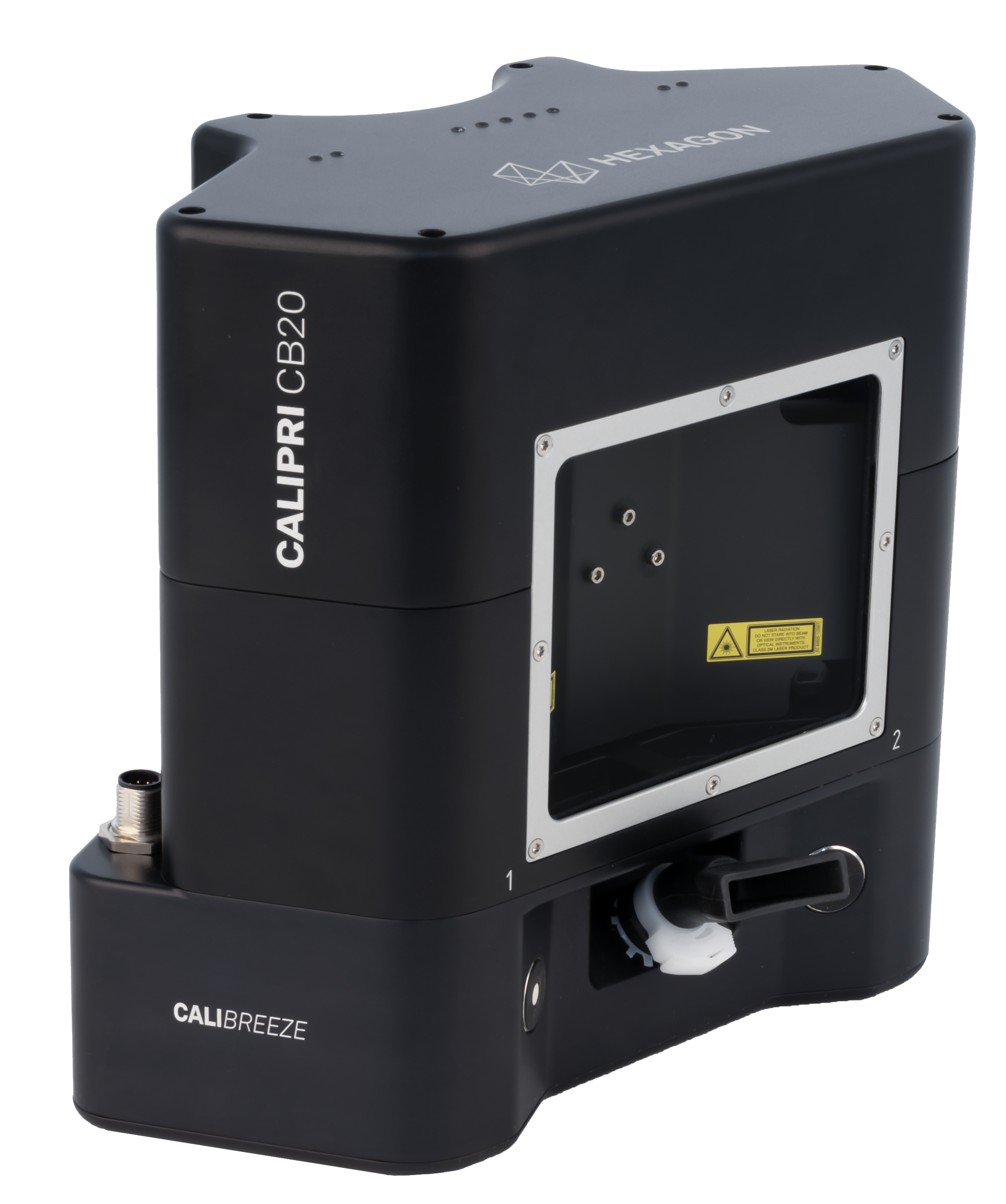

CALIPRI CB20
