BRAVO HD

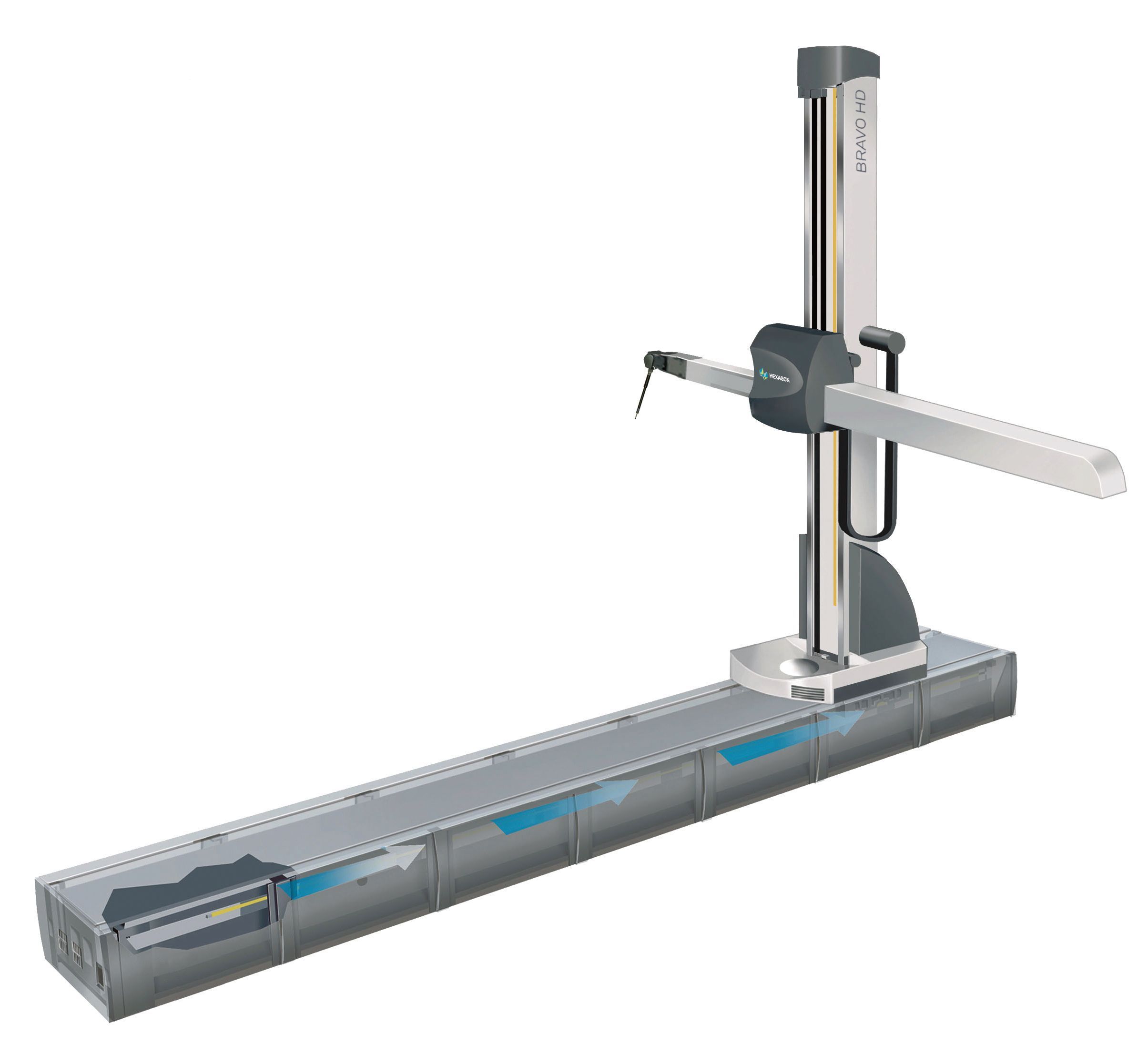

The heavy duty horizontal arm CMM

BRAVO HD belongs to the BRAVO line which also includes BRAVO HP and BRAVO HA. It utilizes a stable, precise mechanical structure, an integrated temperature compensation system, a wide range of probes, probe heads, wrists and accessories and a state-of-the-art software package, delivering an effective coordinate measuring machine that is particularly well suited for operation in metrology labs, QC rooms and Meisterbock rooms.

The heavy duty horizontal arm CMM

HH-A / HH-AS Automatic 5° Probe Heads

The universal system component for use with any multicoordinate measuring machine, whatever the model or manufacturer.

HH-A-H2.5 / HH-AS-H2.5 Automatic HD Probe Heads

The HH-A-2.5 range of probe heads feature a number of innovations, including a fully embedded controller, and capacitive crash protection.

HH-A-T2.5 / HH-AS-T2.5 Automatic 2.5° Probe Heads

The HH-A-T2.5 is capable of indexing in 2.5° increments and can achieve 12,240 unique positions.

HH-ACW-43MW Continuous Wrist

The HH-ACW-43MW Continuous Wrist's speed and motion are continuously controlled by the system controller to reach maximum efficiency.

BRAVO HP

Characterized by stability and accuracy, the BRAVO HP optimizes dimensional inspection and analysis of car bodies.

MERCURY FX

A horizontal arm CMM upgrade, using existing infrastructure to simplify the installation of productivity-enhancing measurement systems.

TORO

TORO features an extraordinary price/performance ratio and is available in the runway structure with the main guideway fixed to the floor.

Training and Resources

BRAVO HD Specifications

Available Size (X, Y, Z)₁	Accuracy₂	Probe type compatibility	Automation ready
XX.16.XX Available X strokes: 4000, 6000, 7000, 9000 mm Available Z strokes: 2100, 2500, 3000	From 20 + 13 L/1000, < 50 μm (Single Arm), 18 - 22 °C From 36 + 13 L/1000, < 70 μm (Double Arm), 18 - 22 °C	Touch trigger probe Laser scanner probe	YES
Temperature specification
18 - 22 °C 16 - 24 °C 16 - 32 °C

Available Size (X, Y, Z)₁

Accuracy₂

Probe type compatibility

Automation ready

XX.16.XX

Available X strokes: 4000, 6000, 7000, 9000 mm

Available Z strokes: 2100, 2500, 3000

From 20 + 13 L/1000, < 50 μm (Single Arm), 18 - 22 °C

From 36 + 13 L/1000, < 70 μm (Double Arm), 18 - 22 °C

Touch trigger probe

Laser scanner probe

YES

Temperature specification

18 - 22 °C

16 - 24 °C

16 - 32 °C

Available Size (X, Y, Z)₁
XX.16.XX Available X strokes: 4000, 6000, 7000, 9000 mm Available Z strokes: 2100, 2500, 3000
Accuracy₂
From 20 + 13 L/1000, < 50 μm (Single Arm), 18 - 22 °C From 36 + 13 L/1000, < 70 μm (Double Arm), 18 - 22 °C
Probe type compatibility
Touch trigger probe Laser scanner probe
Automation ready
YES
Temperature specification
18 - 22 °C 16 - 24 °C 16 - 32 °C
