ALPHA 2.0

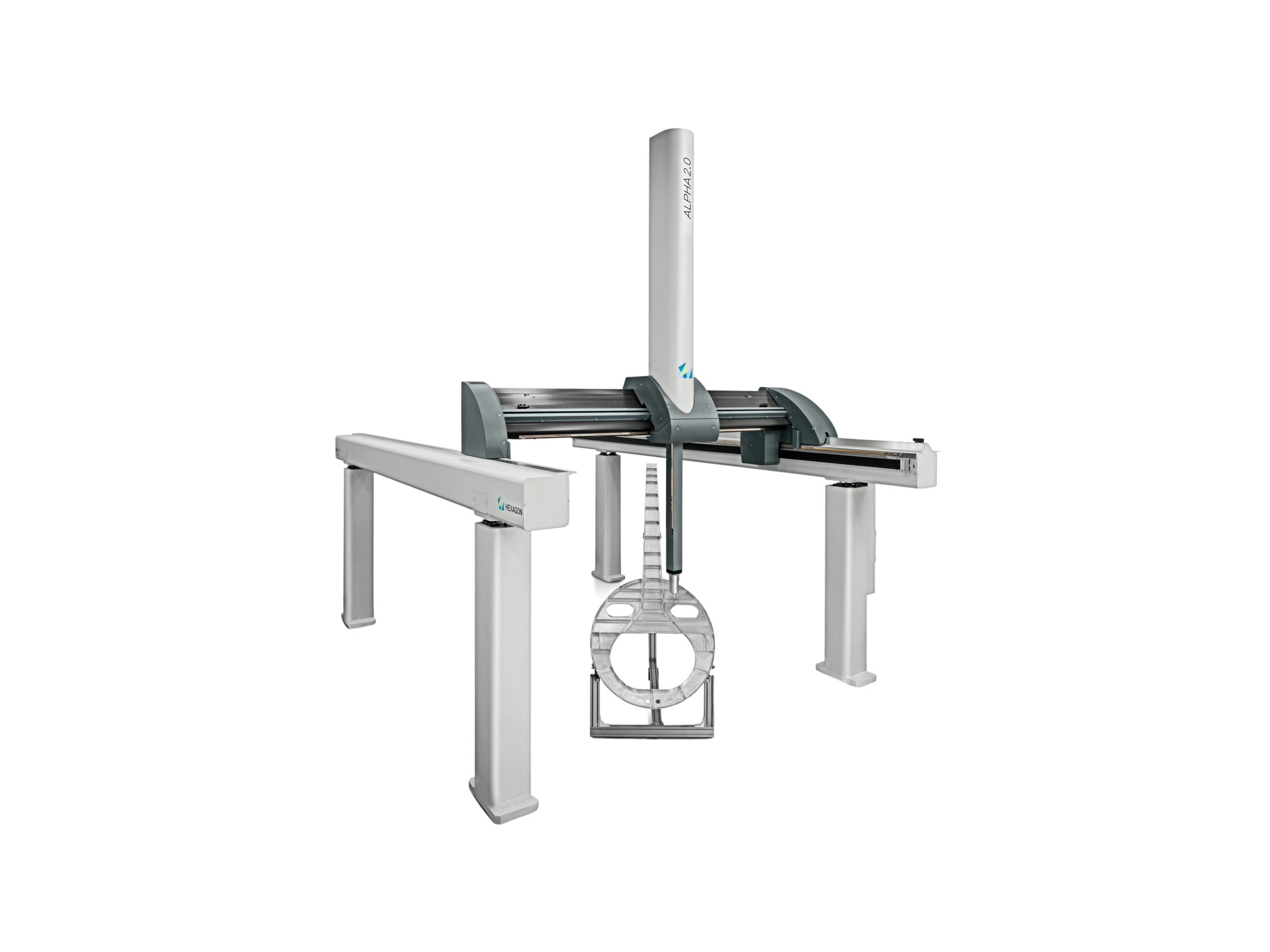

Flexible gantry coordinate measuring machine for large workpieces

ALPHA 2.0 Classic is a multi-purpose flexible CMM for the dimensional inspection of large castings and machined parts. When equipped with optical scanning sensors, the system can rapidly digitize millions of data points on freeform components. This makes it an ideal reverse engineering and inspection system for the die and mold manufacturing process.

ALPHA 2.0 Performance is a high-performance gantry CMM that, thanks to its high-rigidity silicon carbide ram and sophisticated multisensor temperature compensation, guarantees high accuracy and ease of use under all operating conditions.

Flexible gantry coordinate measuring machine for large workpieces

Training and Resources

ALPHA 2.0 Specifications

Available Size (X, Y, Z)	Accuracy₂	Probe type compatibility	Automation ready
20.33.10 / 20.33.15 / 20.50.15 / 25.33.15 / 25.50.15 / 25.33.18 / 25.50.18	From 3.5μm + 3.5 L/1000, MPE(E0/E150)₁) [18-22 °C] From 3.5μm + 6.5 L/1000, MPE(E0/E150)₁) [16-26 °C]	Touch trigger probe Scanning probe Laser scanner probe	YES
Temperature specification
18 - 22 °C 16 - 26 °C

Available Size (X, Y, Z)

Accuracy₂

Probe type compatibility

Automation ready

20.33.10 / 20.33.15 / 20.50.15 / 25.33.15 /

25.50.15 / 25.33.18 / 25.50.18

From 3.5μm + 3.5 L/1000, MPE(E0/E150)₁) [18-22 °C]

From 3.5μm + 6.5 L/1000, MPE(E0/E150)₁) [16-26 °C]

Touch trigger probe

Scanning probe

Laser scanner probe

YES

Temperature specification

18 - 22 °C

16 - 26 °C

Available Size (X, Y, Z)
20.33.10 / 20.33.15 / 20.50.15 / 25.33.15 / 25.50.15 / 25.33.18 / 25.50.18
Accuracy₂
From 3.5μm + 3.5 L/1000, MPE(E0/E150)₁) [18-22 °C] From 3.5μm + 6.5 L/1000, MPE(E0/E150)₁) [16-26 °C]
Probe type compatibility
Touch trigger probe Scanning probe Laser scanner probe
Automation ready
YES
Temperature specification
18 - 22 °C 16 - 26 °C

₁ E0, MPE/E150, MPE specifications are to be formally understood as E0,MPE* /E150, MPE* for the case where non-normal CTE material calibrated test lengths are used.

₂ According to ISO 10360-2 (2009)

Support

Connect and collaborate with your peers and experts

The Nexus Community provides you with excellent peer forums and the opportunity to learn from thousands of others in your industry. Currently, hundreds of peer forums waiting for you to explore into. Discover best practices and get the answers you need to succeed. Register for Nexus to get full access the Community forums.

Our team is ready to help

Our technical support teams are on hand to answer your questions. Contact us through our online form and we will get right back to you.

HH-A-T2.5 / HH-AS-T2.5 Automatic 2.5° Probe Heads

The HH-A-T2.5 is capable of indexing in 2.5° increments and can achieve 12,240 unique positions.

HH-A / HH-AS Automatic 5° Probe Heads

The universal system component for use with any multicoordinate measuring machine, whatever the model or manufacturer.

HH-A-H2.5 / HH-AS-H2.5 Automatic HD Probe Heads

The HH-A-2.5 range of probe heads feature a number of innovations, including a fully embedded controller, and capacitive crash protection.

HP-S-X5 Scanning Probes

HP-S-X5 scanning probes are 3D fixed scanning heads measuring in the X, Y and Z directions to define the workpiece surfaces' orientation.

DELTA OPERA

DELTA OPERA combines the advantages of both bridge and gantry-type CMMs to make loading large parts safe and efficient.

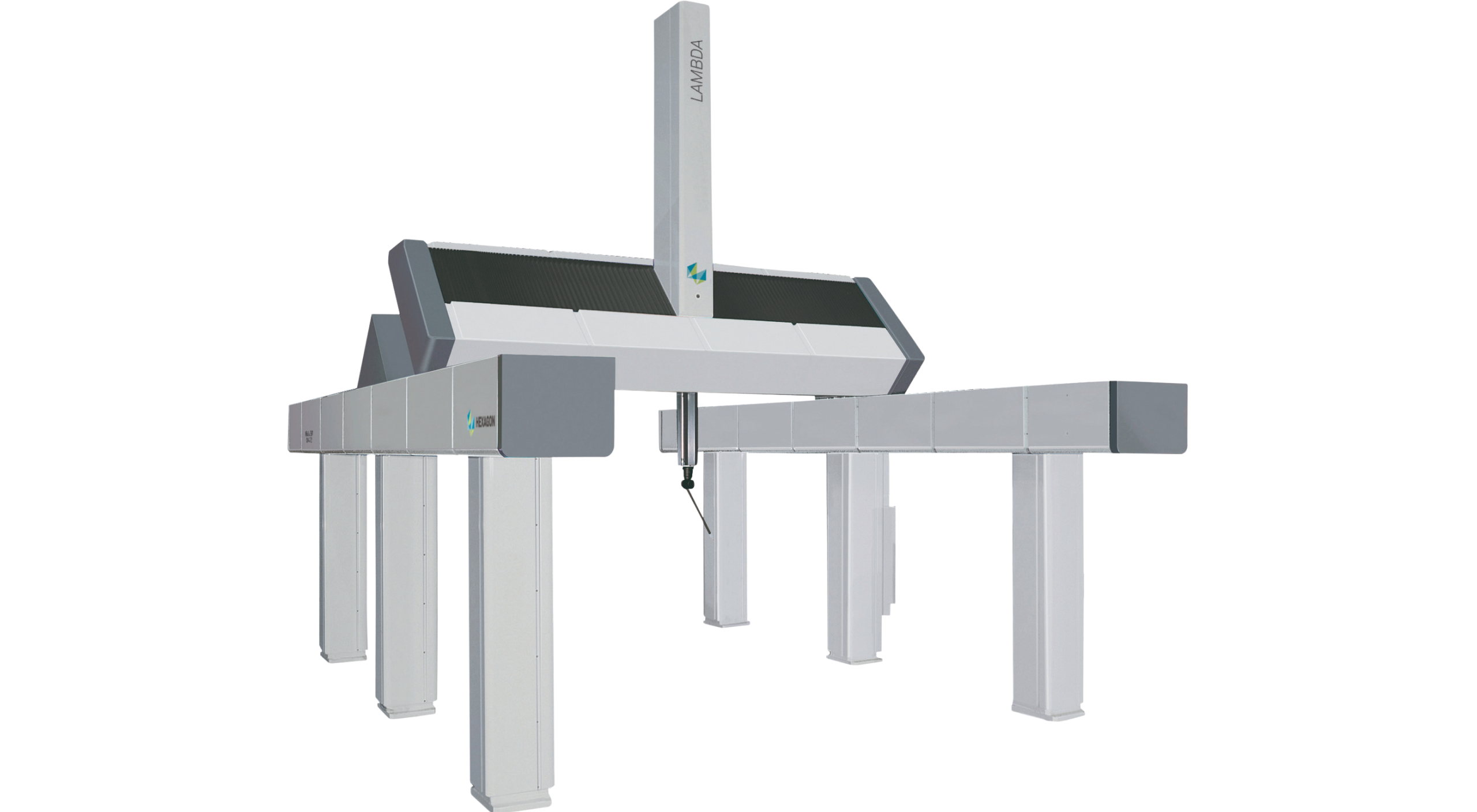

LAMBDA SP
